Schneider Electric XA2AG33 Harmony XA2 Key Switch Plastic Black 22 mm 3-Position Key 455 2 NO Selector Switch

% $-10.63

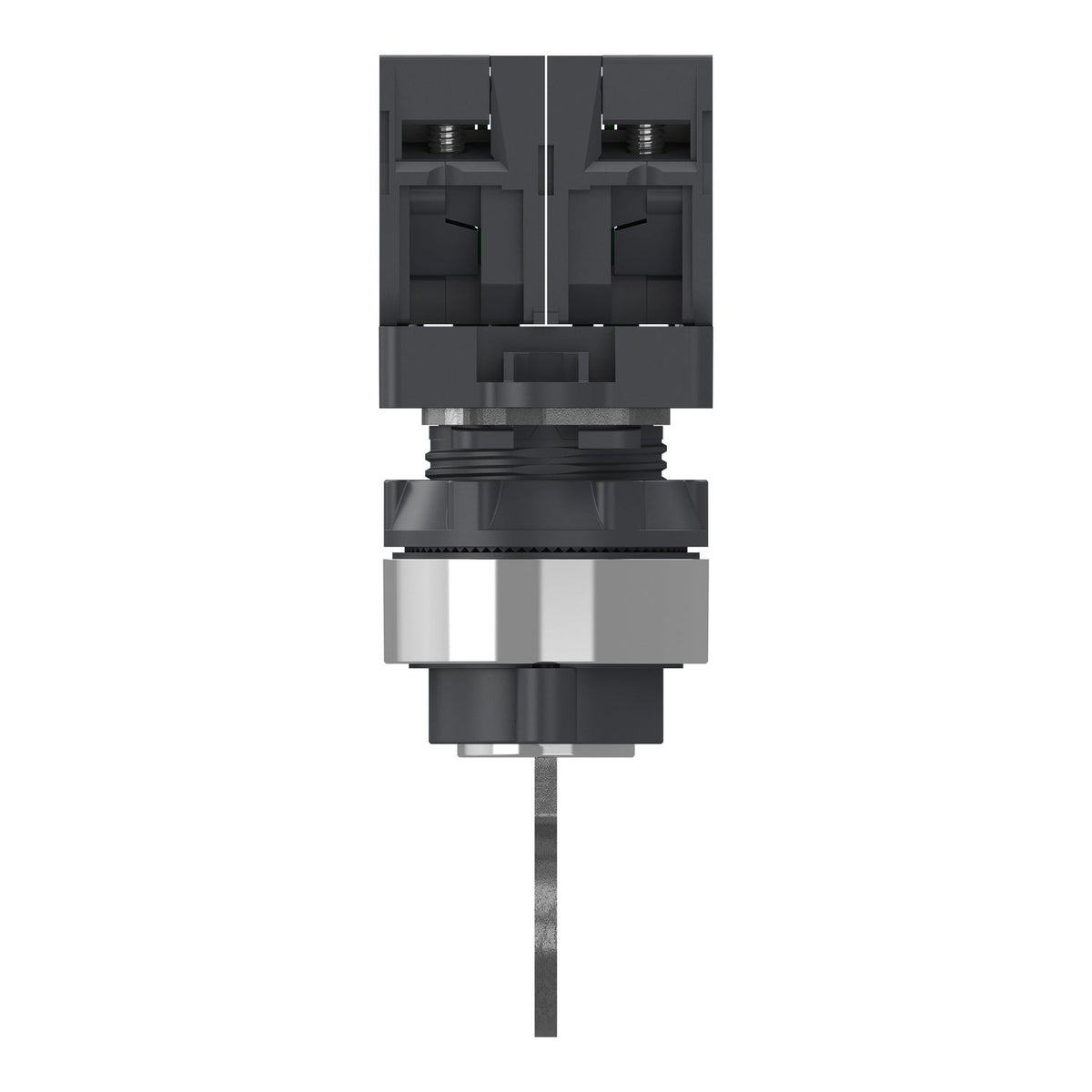

Schneider Electric XA2AG33 Harmony XA2 key switch – 3-position key 455
Schneider Electric XA2AG33 Harmony XA2 key switch – 3-position key 455

Schneider Electric XA2AG33 Harmony XA2 Key Switch Plastic Black 22 mm 3-Position Key 455 2 NO Selector Switch

Brand: Schneider Electric
Reference No: XA2AG33
Catalog No: XA2AG33
Series: Harmony XA2
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$10.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XA2AG33 is a 3-position Harmony XA2 key-operated selector switch using key number 455, withdrawable in the center position, switching 2 NO on a stay-put mechanism. Built for a 22 mm panel cut-out with a plastic body, it carries an IP54 rating for restricting mode changes to key holders.

Technical Specifications

Brand Schneider Electric
Range Harmony XA2
Component Name XA2A
Product Type Complete selector switch
Bezel Material Plastic
Mounting Diameter 22.5 mm
Operator Profile Black key switch (white)
Operator Positions 3 positions, 45°
Type of Operator Stay put
Key Number 455
Key Withdrawal Position Center
Contacts 2 NO
Contact Operation Slow-break
[Ie] Rated Operational Current 3 A at 240 V AC-15; 0.27 A at 250 V DC-13
Connections - Terminals Screw-clamp terminal, ≤ 2.5 mm²; Faston 6.3 mm
IP Degree of Protection IP54
Dimensions (W x H x D) 30 x 43 x 88 mm
Net Weight 0.075 kg

Certifications & Standards

  • CCC
  • CE
  • UKCA
  • GB 14048.1
  • IEC 60947-1
  • GB 14048.5
  • IEC 60947-5-1

Selection Notes

Key withdrawal limited to the center position means an operator can lock the switch there and remove the key, restricting the remaining positions to personnel holding a matching key 455 — the deciding factor over the handle-operated XA2AD selector switches where no key security is needed. With 2 NO, this variant drives 2 independent switching points per key position. The deeper 88 mm body over the handle selectors’ 70 mm accounts for the key-lock mechanism behind the panel face.

Technical Details

Short Description
Harmony XA2 3-position key switch, key 455, center withdrawal, 2 NO.
Mounting Type
22 mm panel cut-out
Protection Type
IP54
Catalog No
XA2AG33
Delivery Date (Days)
30 days
Model Number
XA2A
Tariff Code
853650
