Part number
XA2AG21
Model no
XA2
$9.18 On request Dispatch — · From TürkiyeGet a Quote
Harmony XA2

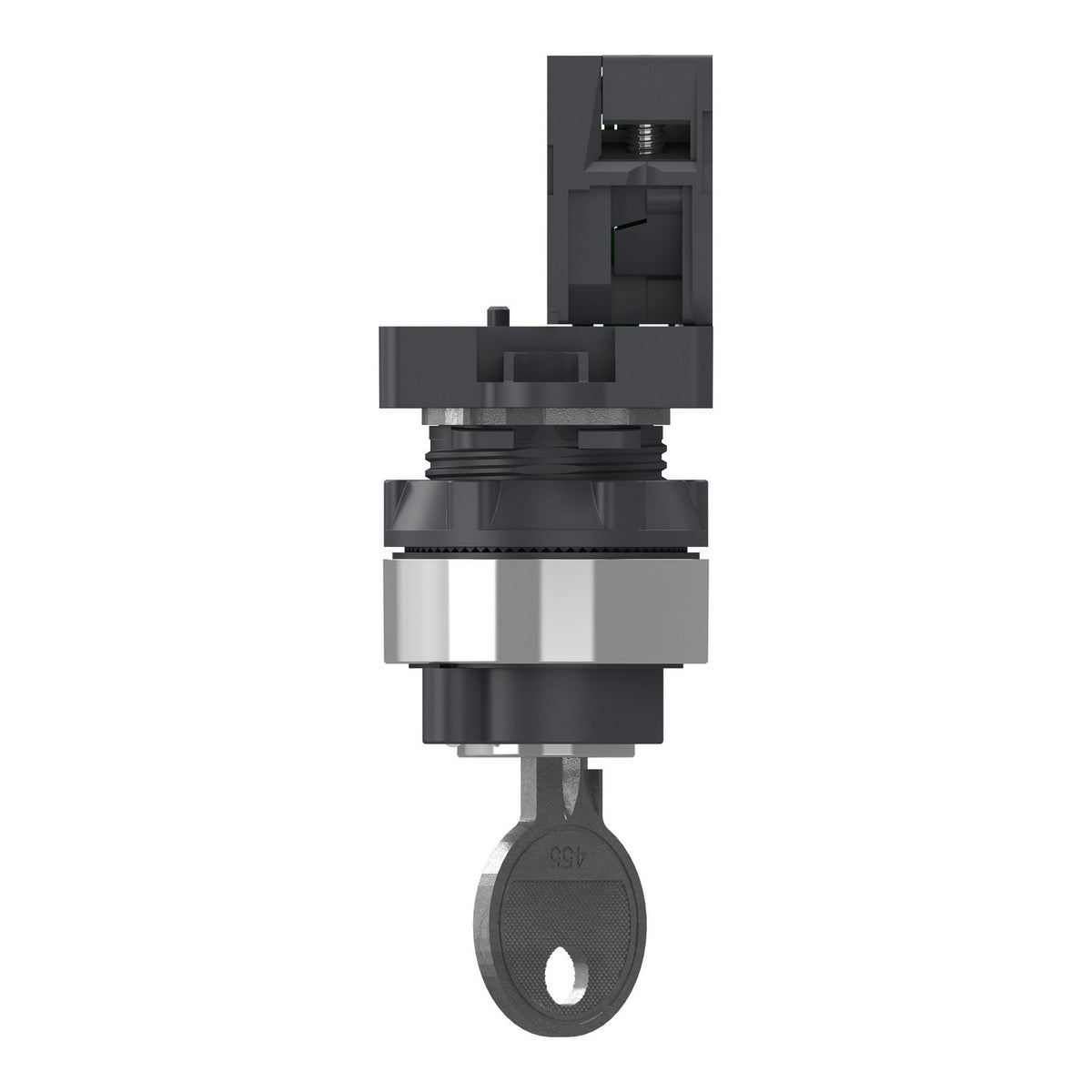

Schneider Electric XA2AG21 Harmony XA2 Key Switch Plastic Black 22 mm 2-Position Key 455 1 NO Selector Switch

Harmony XA2 2-position key switch, key 455, left withdrawal, 1 NO.

Range of product
Harmony XA2
Device short name
XA2
Product or component type
Complete selector switch
Device presentation
Complete product
Component name
XA2A
Bezel material
Plastic
Description

About the XA2

The Schneider Electric XA2AG21 is a 2-position Harmony XA2 key-operated selector switch using key number 455, withdrawable in the left position, switching 1 NO on a stay-put mechanism. Built for a 22 mm panel cut-out with a plastic body, it carries an IP54 rating for restricting mode changes to key holders.

Certifications & Standards

  • CCC
  • CE
  • UKCA
  • GB 14048.1
  • IEC 60947-1
  • GB 14048.5
  • IEC 60947-5-1

Selection Notes

Key withdrawal limited to the left position means an operator can lock the switch there and remove the key, restricting the remaining positions to personnel holding a matching key 455 — the deciding factor over the handle-operated XA2AD selector switches where no key security is needed. With 1 NO, this variant drives a single switching point per key position. The deeper 88 mm body over the handle selectors’ 70 mm accounts for the key-lock mechanism behind the panel face.

Specification

Full specification

75 values · Last verified 30 Oct 2026

Main 8

Range of product Harmony XA2
Device short name XA2
Product or component type Complete selector switch
Device presentation Complete product
Component name XA2A
Bezel material Plastic
Fixing collar material Plastic
Mounting diameter 22.5 mm

Complementary 27

Sale per indivisible quantity 1
Fixing center >= 30 x 40 mm (panel) - thickness: 1…5 mm
Fixing mode Fixing nut: 2…2.4 N.m
Shape of signaling unit head Round
Operator profile Black key switch (white)
Operator position information 2 positions 90°
Key number 455
Key withdrawal position Left
Contacts type and composition 1 NO
Contact operation Slow-break
Mechanical durability 100000 cycles
Connections - terminals Screw clamp terminal, clamping capacity: <= 2 x 1.5 mm², Screw clamp terminal, clamping capacity: <= 1 x 2.5 mm², Screw clamp terminal, clamping capacity: >= 1 x 0.5 mm², Faston terminals, connection size: 6.3 mm
Tightening torque 0.8…1.2 N.m
Short-circuit protection 10 A fuse type gL conforming to IEC 60269-1
[Ith] conventional free air thermal current 10 A (screw-clamp terminals)
[Ui] rated insulation voltage 600 V conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
[Ie] rated operational current 3 A at 240 V, AC-15, A600, 0.27 A at 250 V, DC-13, Q600
Electrical durability 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1
Electrical reliability Λ < 10exp(-8) at 24 V and 5 mA conforming to IEC 60947-5-4
Width 30.0 mm
Height 43.0 mm
Depth 88.0 mm
Net weight 0.062 kg
Type of operator Stay put
Head type Standard
Cap/operator or lens colour Black

Environment 10

Protective treatment TC
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…55 °C
Overvoltage category Class I conforming to IEC 536
IP degree of protection IP54 conforming to IEC 60529
IK degree of protection IK06 conforming to IEC 60529
Standards GB 14048.1, IEC 60947-1, GB 14048.5, IEC 60947-5-1
Product certifications CCC, CE, UKCA
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Show all 75 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XA2AG21
Type designation XA2
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.8 cm
Package 1 Width 3 cm
Package 1 Length 4.3 cm
Package 1 Weight 62 g
Unit Type of Package 2 BB1
Number of Units in Package 2 5
Package 2 Height 3 cm
Package 2 Width 12 cm
Package 2 Length 60 cm
Package 2 Weight 315 g
Unit Type of Package 3 S02
Number of Units in Package 3 100
Package 3 Height 15 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 6.75 kg
Shipping weight 0.062 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XA2AG21

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • UKCA
  • CCC
  • GB 14048.1
  • IEC 60947-1
  • GB 14048.5
  • IEC 60947-5-1
Quick answers

Questions about the XA2

What is the HS code of XA2 for customs?

The tariff (HS) code on file for XA2 is 853650.

Where does XA2 ship from, and how fast?

XA2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
