Schneider Electric XA2AD41 Harmony XA2 Short Handle Black 2-Position Spring-return 1 NO Selector Switch

% $-3.60

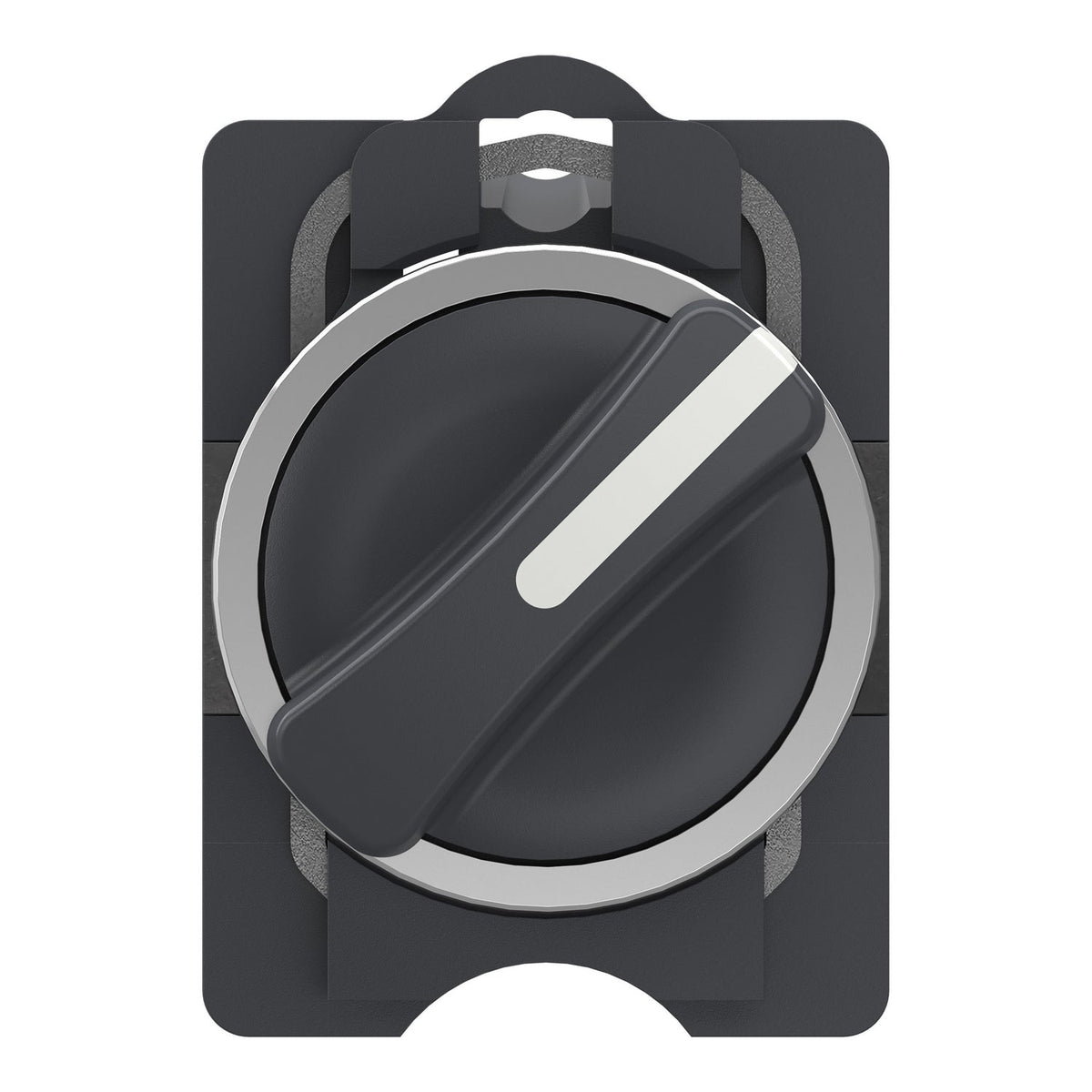

Schneider Electric XA2AD41 Harmony XA2 selector switch – 2-position spring-return
Schneider Electric XA2AD41 Harmony XA2 selector switch – 2-position spring-return

Schneider Electric XA2AD41 Harmony XA2 Short Handle Black 2-Position Spring-return 1 NO Selector Switch

Brand: Schneider Electric
Reference No: XA2AD41
Catalog No: XA2AD41
Series: Harmony XA2
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3.60

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XA2AD41 is a 2-position Harmony XA2 selector switch with a black short handle, switching 1 NO on a spring-return mechanism. Built for a 22 mm panel cut-out with a plastic body, it carries an IP65 rating and a 3 A AC-15 rating at 240 V for mode-selection and start-circuit control.

Technical Specifications

Brand Schneider Electric
Range Harmony XA2
Component Name XA2A
Product Type Complete selector switch
Bezel Material Plastic
Mounting Diameter 22.5 mm
Operator Profile Black standard handle (white)
Operator Positions 2 positions, 90°
Type of Operator Spring return
Return Right to left
Contacts 1 NO
Contact Operation Slow-break
[Ie] Rated Operational Current 3 A at 240 V AC-15; 0.27 A at 250 V DC-13
[Ui] Rated Insulation Voltage 600 V
Connections - Terminals Screw-clamp terminal, ≤ 2.5 mm²; Faston 6.3 mm
IP Degree of Protection IP65
IK Degree of Protection IK06
Dimensions (W x H x D) 30 x 43 x 70 mm
Net Weight 0.04 kg

Certifications & Standards

  • CCC
  • CE
  • UKCA
  • GB 14048.1
  • IEC 60947-1
  • GB 14048.5
  • IEC 60947-5-1

Selection Notes

The spring-return mechanism pulls the handle right to left once released, which suits momentary jog or test functions rather than a mode that must stay selected. With 1 NO, this variant gives 1 independent switching point, matching the number of circuits the selector needs to drive. The black short handle and 22.5 mm cut-out keep it interchangeable with the rest of the Harmony XA2 pushbutton line on the same panel face.

Technical Details

Short Description
Harmony XA2 2-position selector switch, short handle, 1 NO, spring-return.
Mounting Type
22 mm panel cut-out
Protection Type
IP65
Catalog No
XA2AD41
Delivery Date (Days)
30 days
Model Number
XA2A
Tariff Code
853650
