- Part number
- XA2AD33
- Model no
- XA2
Description
About the XA2
About the XA2

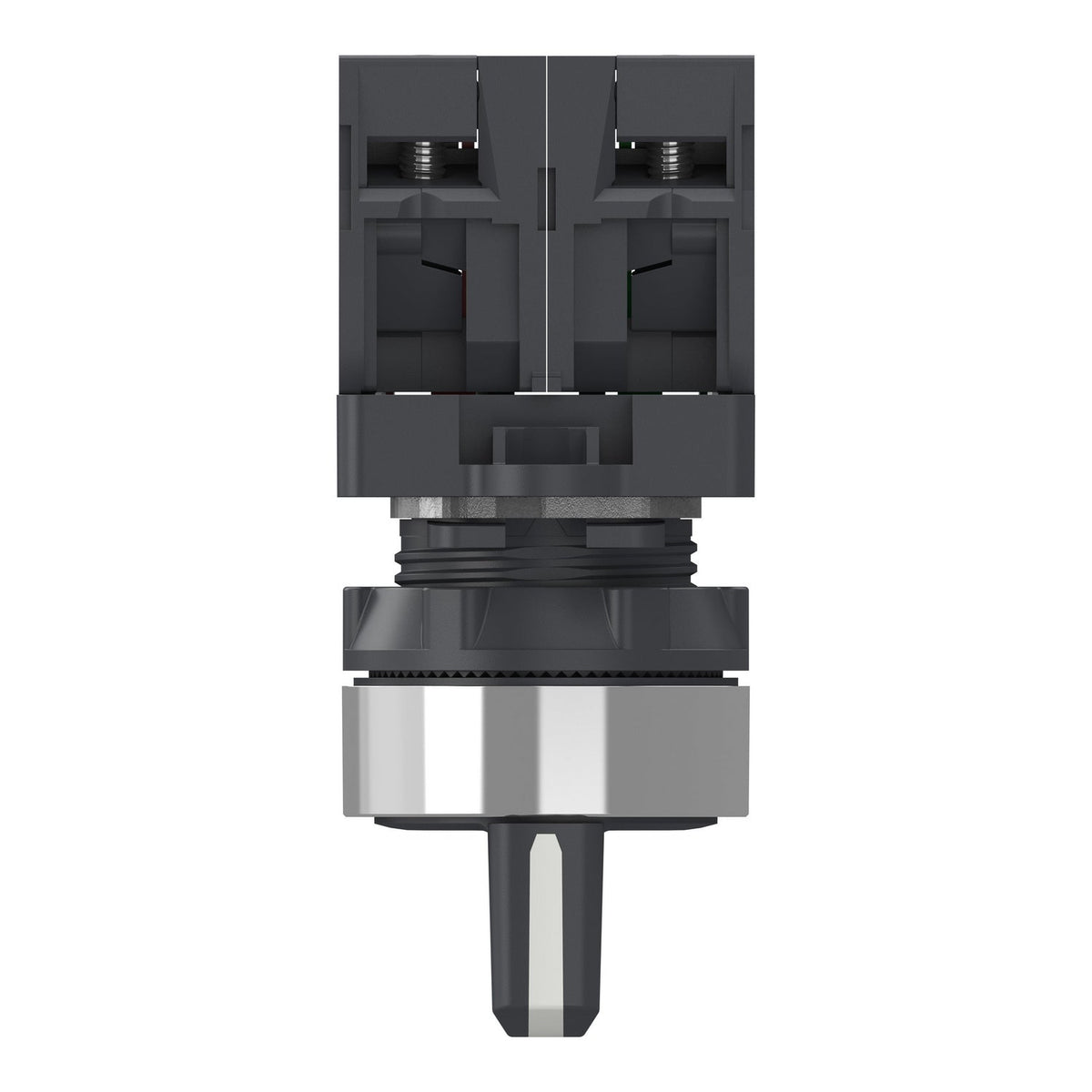

The Schneider Electric XA2AD33 is a 3-position Harmony XA2 selector switch with a black short handle, switching 2 NO on a stay-put mechanism. Built for a 22 mm panel cut-out with a plastic body, it carries an IP65 rating and a 3 A AC-15 rating at 240 V for mode-selection and start-circuit control.
Certifications & Standards
- CCC
- CE
- UKCA
- GB 14048.1
- IEC 60947-1
- GB 14048.5
- IEC 60947-5-1
Selection Notes
The stay-put mechanism holds the handle in whichever of the 3 positions it is turned to, which suits mode-select functions (such as local/remote or off/hand/auto) that must stay set until an operator deliberately changes them. With 2 NO, this variant gives 2 independent switching points, matching the number of circuits the selector needs to drive. The black short handle and 22.5 mm cut-out keep it interchangeable with the rest of the Harmony XA2 pushbutton line on the same panel face.
Specification
Full specification
Main 8
| Range of product | Harmony XA2 |
|---|---|
| Device short name | XA2 |
| Product or component type | Complete selector switch |
| Device presentation | Complete product |
| Component name | XA2A |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
Complementary 25
| Sale per indivisible quantity | 1 |
|---|---|
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Operator profile | Black standard handle (white) |
| Operator position information | 3 positions 45° |
| Contacts type and composition | 2 NO |
| Contact operation | Slow-break |
| Mechanical durability | 300000 cycles |
| Connections - terminals | Screw clamp terminal, clamping capacity: <= 2 x 1.5 mm², Screw clamp terminal, clamping capacity: <= 1 x 2.5 mm², Screw clamp terminal, clamping capacity: >= 1 x 0.5 mm², Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8…1.2 N.m |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A (screw-clamp terminals) |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600, 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
| Electrical reliability | Λ < 10exp(-8) at 24 V and 5 mA conforming to IEC 60947-5-4 |
| Width | 30.0 mm |
| Height | 43.0 mm |
| Depth | 70.0 mm |
| Net weight | 0.053 kg |
| Type of operator | Stay put |
| Head type | Standard |
| Cap/operator or lens colour | Black |
Environment 10
| Protective treatment | TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to IEC 60529 |
| Standards | GB 14048.1, IEC 60947-1, GB 14048.5, IEC 60947-5-1 |
| Product certifications | CCC, CE, UKCA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Show all 73 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XA2AD33 |
|---|---|
| Type designation | XA2 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 3 cm |
| Package 1 Length | 4.3 cm |
| Package 1 Weight | 53 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 3 cm |
| Package 2 Width | 12 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 270 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 15 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 5.85 kg |
| Shipping weight | 0.053 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XA2AD33
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- UKCA
- CCC
- GB 14048.1
- IEC 60947-1
- GB 14048.5
- IEC 60947-5-1
Quick answers
Questions about the XA2
What is the HS code of XA2 for customs?
The tariff (HS) code on file for XA2 is 853650.
Where does XA2 ship from, and how fast?
XA2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
