Schneider Electric XA2AC31 Harmony XA2 Plastic Mushroom Green 40 mm 22 mm Spring Return 1 NO Push Button

% $-3.21

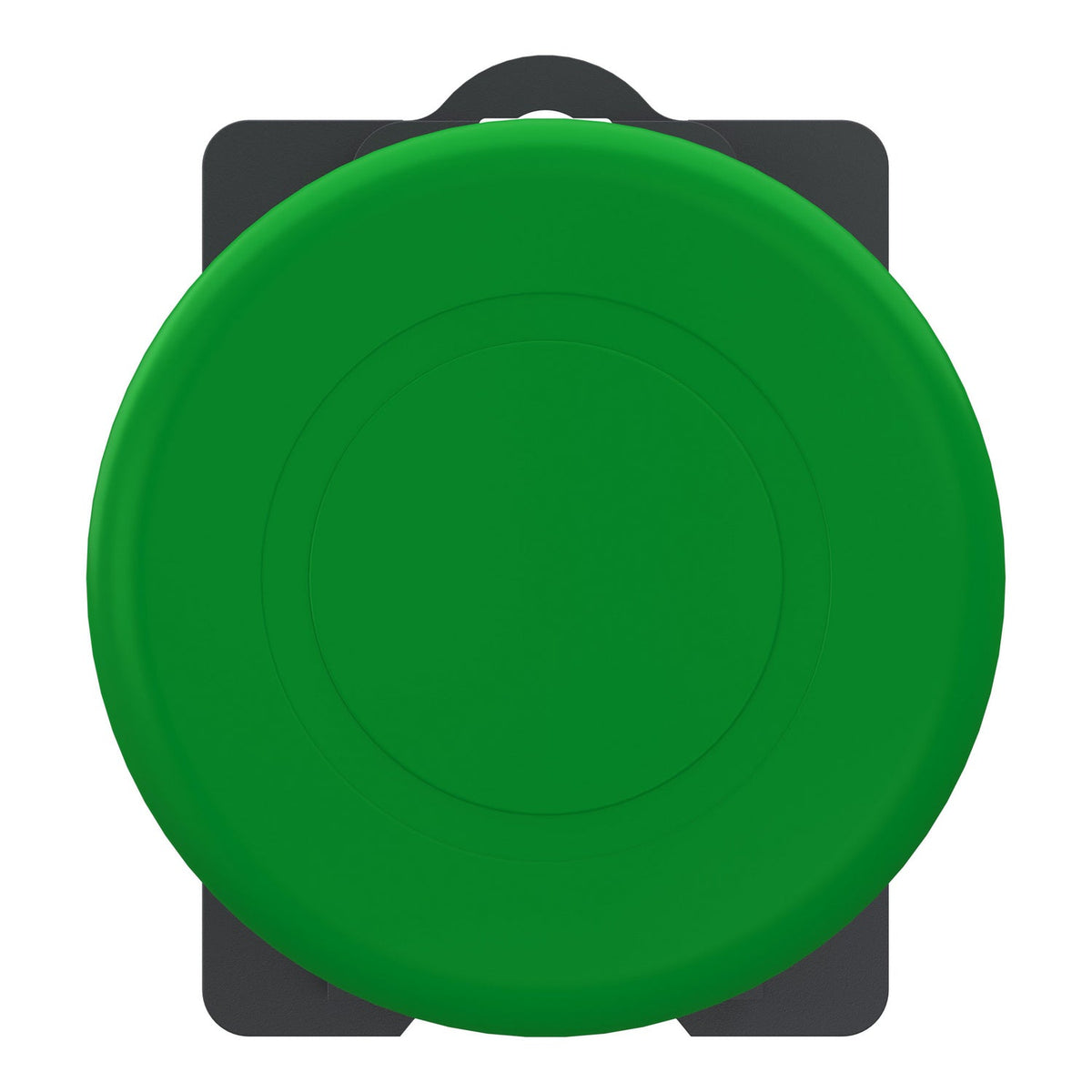

Schneider Electric XA2AC31 Harmony XA2 green mushroom push button – 1 NO
Schneider Electric XA2AC31 Harmony XA2 green mushroom push button – 1 NO

Schneider Electric XA2AC31 Harmony XA2 Plastic Mushroom Green 40 mm 22 mm Spring Return 1 NO Push Button

Brand: Schneider Electric
Reference No: XA2AC31
Catalog No: XA2AC31
Series: Harmony XA2
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3.21

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XA2AC31 is a green mushroom-head push button from the Harmony XA2 range, with a 40 mm diameter plastic head switching 1 NO on a spring-return mechanism. It mounts in a 22 mm panel cut-out, is unmarked, and carries an IP65 rating for a 3 A AC-15, 240 V control-circuit duty.

Technical Specifications

Brand Schneider Electric
Range Harmony XA2
Component Name XA2A
Product Type Complete push-button
Bezel Material Plastic
Mounting Diameter 22.5 mm
Operator Profile Green mushroom Ø 40 mm, unmarked
Type of Operator Spring return
Contacts 1 NO
Contact Operation Slow-break
[Ie] Rated Operational Current 3 A at 240 V AC-15; 0.27 A at 250 V DC-13
[Ui] Rated Insulation Voltage 600 V
[Uimp] Rated Impulse Withstand Voltage 6 kV
Connections - Terminals Screw-clamp terminal, ≤ 2.5 mm²; Faston 6.3 mm
IP Degree of Protection IP65
IK Degree of Protection IK03
Dimensions (W x H x D) 40 x 43 x 74 mm
Net Weight 0.046 kg

Certifications & Standards

  • CCC
  • CE
  • UKCA
  • GB 14048.1
  • IEC 60947-1
  • GB 14048.5
  • IEC 60947-5-1

Selection Notes

The 40 mm mushroom head gives a larger actuation target and palm-strike operability than the 22 mm flush XA2AA push buttons, suiting it to stop or alarm functions that need to be hit quickly without precise aim. The 1 NO contact closes a circuit on press, suiting confirm or reset commands. For a dedicated emergency-stop function with a latching, twist-to-release mechanism, a Harmony emergency-stop head rather than this spring-return mushroom button is the correct part.

Technical Details

Short Description
Harmony XA2 green mushroom push button, Ø40 mm, 1 NO, spring return, IP65.
Mounting Type
22 mm panel cut-out
Protection Type
IP65
Catalog No
XA2AC31
Delivery Date (Days)
30 days
Model Number
XA2A
Tariff Code
853650
