Part number
XA2AA21
Model no
XA2
$2.98 On request Dispatch — · From TürkiyeGet a Quote
Harmony XA2

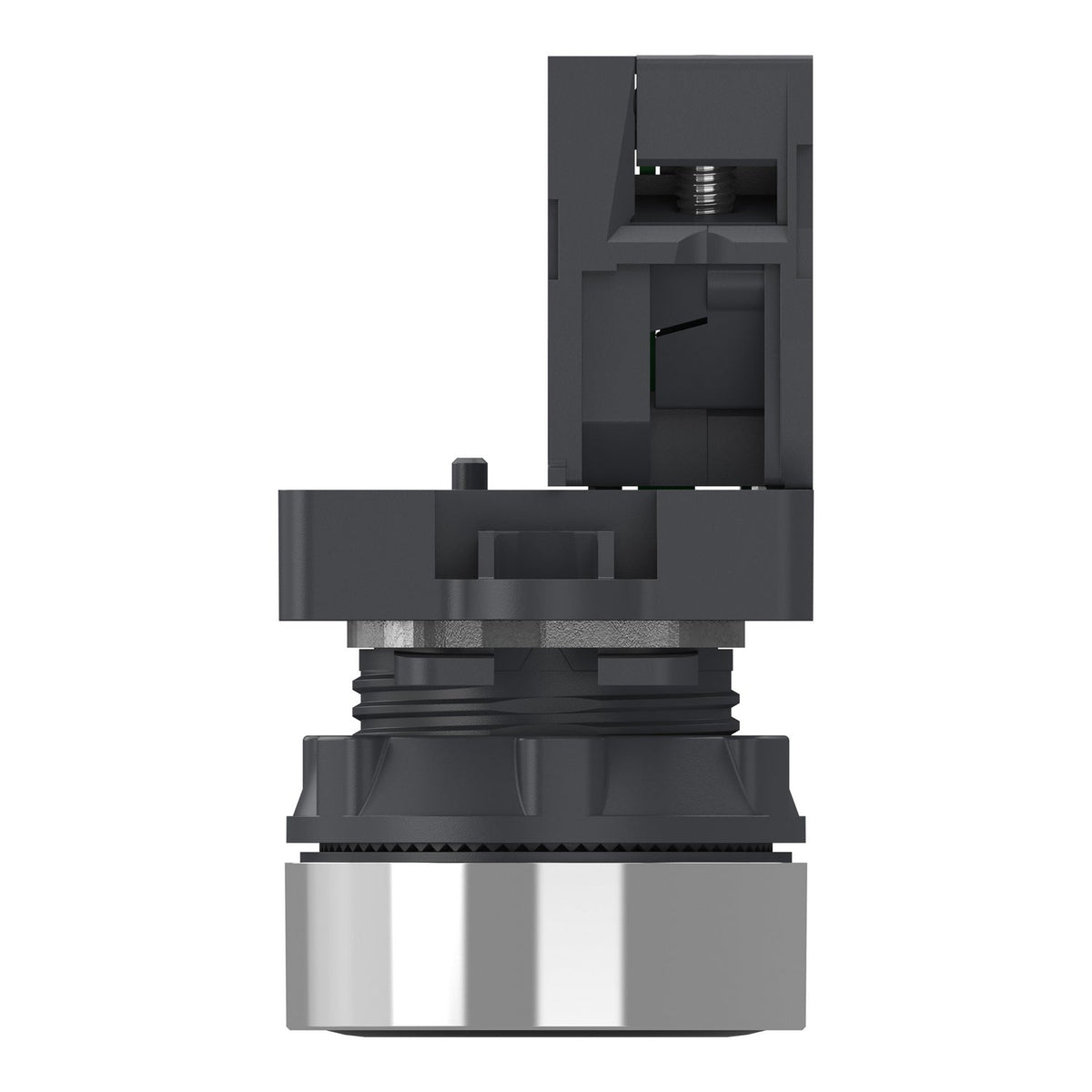

Schneider Electric XA2AA21 Harmony XA2 Push Button Plastic Flush Black 22 mm Spring Return 1 NO Push Button

Harmony XA2 black flush push button, 1 NO, spring return, IP65, 22 mm.

Range of product
Harmony XA2
Device short name
XA2
Product or component type
Complete push-button
Device presentation
Complete product
Component name
XA2A
Bezel material
Plastic
Description

About the XA2

The Schneider Electric XA2AA21 is a black flush push button from the Harmony XA2 range, unmarked, switching 1 NO with a spring-return mechanism. Built for a 22 mm panel cut-out with a plastic body and metallic-look bezel, it carries an IP65 rating and a 3 A AC-15 rating at 240 V for standard control-circuit duty.

Certifications & Standards

  • CCC
  • CE
  • UKCA
  • GB 14048.1
  • IEC 60947-1
  • GB 14048.5
  • IEC 60947-5-1

Selection Notes

The 1 NO contact closes on actuation, so this black button suits start/confirm commands wired to energize a circuit rather than the opposite logic. Left unmarked, this head suits panels where the function is identified by a separate legend plate or by its position in the control station rather than by the button itself. Its IP65 plastic body is the standard choice over the metal-bodied Harmony XB4 range where impact resistance beyond IK03 is not required.

Specification

Full specification

72 values · Last verified 30 Oct 2026

Main 7

Range of product Harmony XA2
Device short name XA2
Product or component type Complete push-button
Device presentation Complete product
Component name XA2A
Bezel material Plastic
Fixing collar material Plastic

Complementary 26

Mounting diameter 22.5 mm
Sale per indivisible quantity 1
Protective treatment TC
Operating position Any position
Fixing center >= 30 x 40 mm (panel) - thickness: 1…5 mm
Fixing mode Fixing nut: 2…2.4 N.m
Shape of signaling unit head Round
Operator profile Black flush, unmarked
Contacts type and composition 1 NO
Contact operation Slow-break
Mechanical durability 1500000 cycles
Connections - terminals Screw clamp terminal, <= 2 x 1.5 mm², Screw clamp terminal, <= 1 x 2.5 mm², Screw clamp terminal, >= 1 x 0.5 mm², Faston terminals, connection size: 6.3 mm
Tightening torque 0.8…1.2 N.m
Short-circuit protection 10 A gL fuse conforming to IEC 60269-1
[Ith] conventional free air thermal current 10 A
[Ui] rated insulation voltage 600 V conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
[Ie] rated operational current 3 A at 240 V, AC-15, A600, 0.27 A at 250 V, DC-13, Q600
Electrical durability 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1
Electrical reliability Λ < 10exp(-8) at 24 V and 5 mA conforming to IEC 60947-5-4
Width 30 mm
Height 43 mm
Depth 55 mm
Net weight 0.032 kg
Cap/operator or lens colour Black
Type of operator Spring return

Environment 9

Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…55 °C
Overvoltage category Class I conforming to IEC 536
IP degree of protection IP65 conforming to IEC 60529
IK degree of protection IK03 conforming to IEC 60529
Standards GB 14048.1, IEC 60947-1, GB 14048.5, IEC 60947-5-1
Product certifications CCC, CE, UKCA
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Show all 72 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XA2AA21
Type designation XA2
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 3 cm
Package 1 Length 4.3 cm
Package 1 Weight 32 g
Unit Type of Package 2 BB1
Number of Units in Package 2 5
Package 2 Height 3 cm
Package 2 Width 12 cm
Package 2 Length 60 cm
Package 2 Weight 165 g
Unit Type of Package 3 S02
Number of Units in Package 3 100
Package 3 Height 15 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 3.75 kg
Shipping weight 0.032 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XA2AA21

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • UKCA
  • CCC
  • GB 14048.1
  • IEC 60947-1
  • GB 14048.5
  • IEC 60947-5-1
Quick answers

Questions about the XA2

What is the HS code of XA2 for customs?

The tariff (HS) code on file for XA2 is 853650.

Where does XA2 ship from, and how fast?

XA2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
