Schneider Electric XA2AA11 Harmony XA2 Push Button Plastic Flush White 22 mm Spring Return 1 NO Push Button

% $-2.93

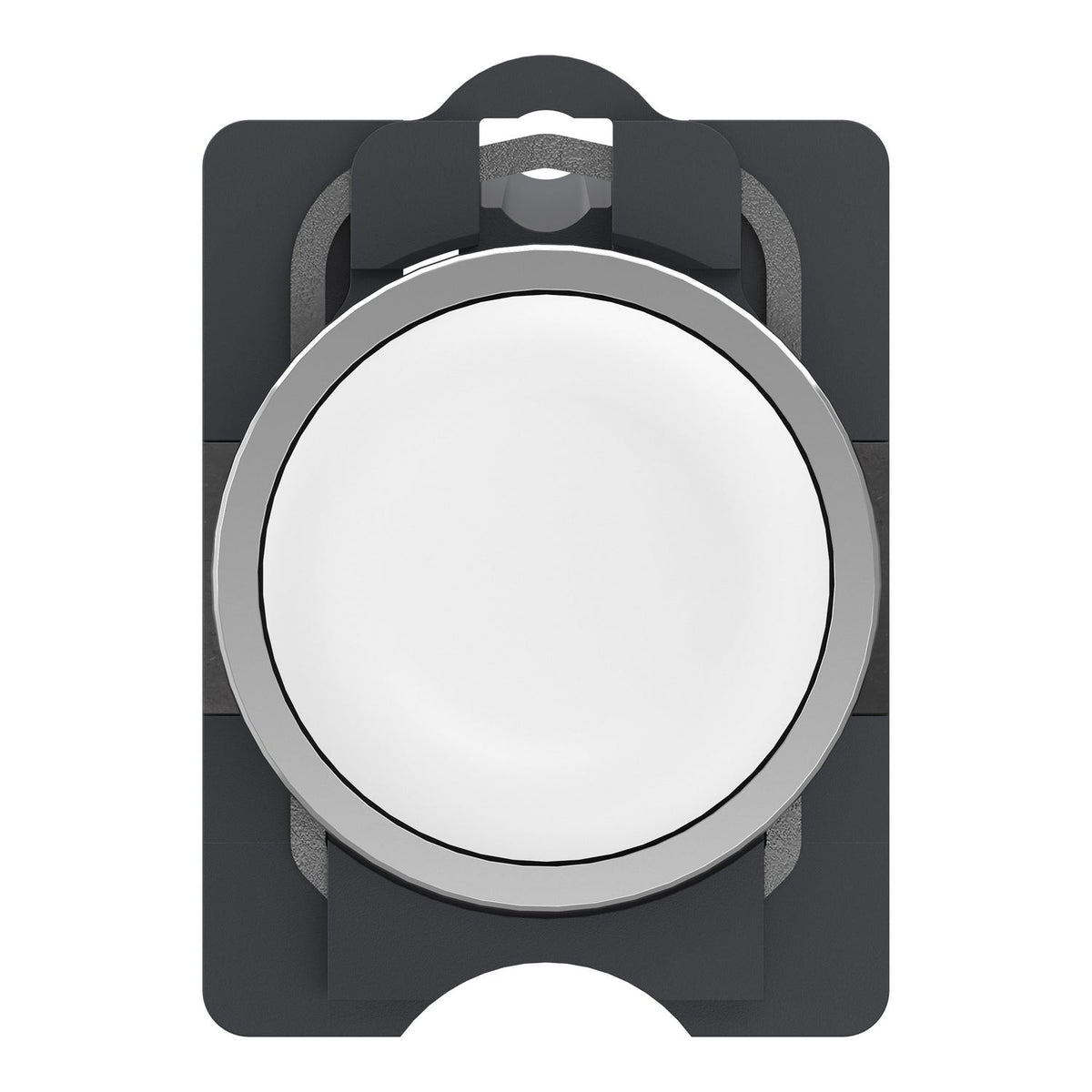

Schneider Electric XA2AA11 Harmony XA2 white push button – 1 NO spring return
Schneider Electric XA2AA11 Harmony XA2 white push button – 1 NO spring return

Schneider Electric XA2AA11 Harmony XA2 Push Button Plastic Flush White 22 mm Spring Return 1 NO Push Button

Brand: Schneider Electric
Reference No: XA2AA11
Catalog No: XA2AA11
Series: Harmony XA2
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2.93

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XA2AA11 is a white flush push button from the Harmony XA2 range, unmarked, switching 1 NO with a spring-return mechanism. Built for a 22 mm panel cut-out with a plastic body and metallic-look bezel, it carries an IP65 rating and a 3 A AC-15 rating at 240 V for standard control-circuit duty.

Technical Specifications

Brand Schneider Electric
Range Harmony XA2
Component Name XA2A
Product Type Complete push-button
Bezel Material Plastic
Mounting Diameter 22.5 mm
Operator Profile White flush, unmarked
Type of Operator Spring return
Contacts 1 NO
Contact Operation Slow-break
[Ie] Rated Operational Current 3 A at 240 V AC-15; 0.27 A at 250 V DC-13
[Ui] Rated Insulation Voltage 600 V
[Uimp] Rated Impulse Withstand Voltage 6 kV
Connections - Terminals Screw-clamp terminal, ≤ 2.5 mm²; Faston 6.3 mm
IP Degree of Protection IP65
IK Degree of Protection IK03
Dimensions (W x H x D) 30 x 43 x 55 mm
Net Weight 0.032 kg

Certifications & Standards

  • CCC
  • CE
  • UKCA
  • GB 14048.1
  • IEC 60947-1
  • GB 14048.5
  • IEC 60947-5-1

Selection Notes

The 1 NO contact closes on actuation, so this white button suits start/confirm commands wired to energize a circuit rather than the opposite logic. Left unmarked, this head suits panels where the function is identified by a separate legend plate or by its position in the control station rather than by the button itself. Its IP65 plastic body is the standard choice over the metal-bodied Harmony XB4 range where impact resistance beyond IK03 is not required.

Technical Details

Short Description
Harmony XA2 white flush push button, 1 NO, spring return, IP65, 22 mm.
Mounting Type
22 mm panel cut-out
Protection Type
IP65
Catalog No
XA2AA11
Delivery Date (Days)
30 days
Model Number
XA2A
Tariff Code
853650
