Lexium 32iSchneider Electric VW3M9106 Lexium 32i Ethernet Connector Module M12 4 DI Source M8 STO Servo Drive Accessory
Lexium 32i EtherCAT/Profinet connector module, M12 Ethernet, M8 4 DI source, STO safety.
Description
About the VW3M9106
About the VW3M9106

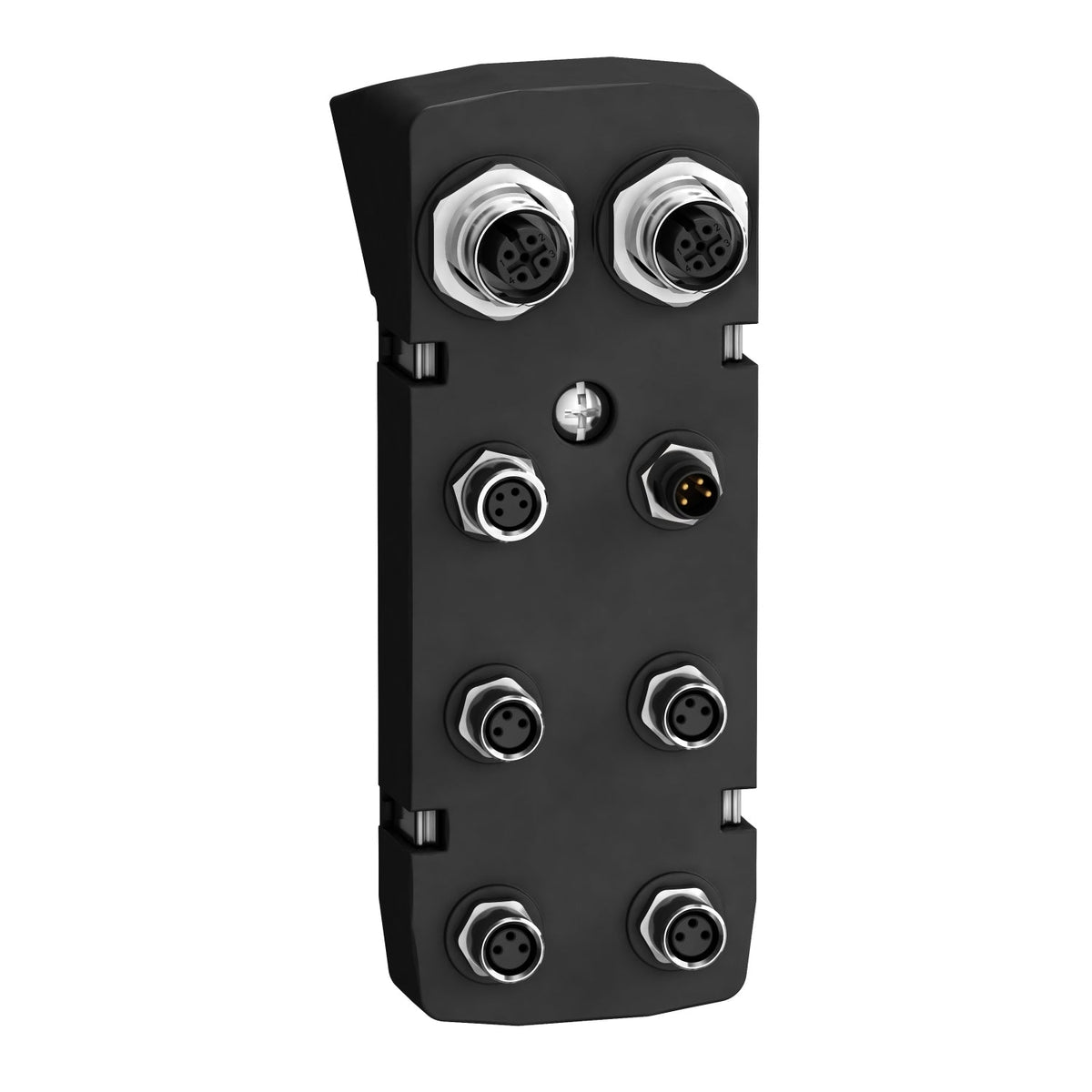

The Schneider Electric VW3M9106 is a Lexium 32i connector module with industrial M12 Ethernet and M8 I/O connectors for the LXM32i EtherCAT and Profinet control units. It provides 4 source discrete inputs and the STO (safe torque off) safety function, replacing screw-terminal wiring with pre-moulded industrial connectors for faster field installation.
Selection Notes
Specify the VW3M9106 for LXM32i EtherCAT or Profinet drives wired with industrial M12/M8 connectors rather than terminal blocks — its 4 source inputs and STO safety function match the terminal-wired connector modules in this range electrically, so the choice comes down to connector style rather than I/O count. It is the connection accessory for the motor BMI paired with the Lexium 32i drive control unit, and is supplied in packs of 12.
Specification
Full specification
Main 4
| Range of Product | Lexium 32i |
|---|---|
| Product or Component Type | Connector module |
| Accessory / separate part category | Connection accessories |
| Electrical Connection | Industrial connector |
Complementary 8
| Product compatibility | Control unit LXM32i EtherCAT, Control unit LXM32i Profinet |
|---|---|
| Accessory / separate part destination | Motor BMI with drive control unit Lexium 32i |
| Range Compatibility | Lexium 32i |
| Communication interface | EtherCAT, Profinet |
| Input/output type | 4 discrete inputs |
| Discrete input logic | Source |
| Safety Function | STO (safe torque off) |
| Net Weight | 0.49 lb(US) (0.22 kg) |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 25 specifications ↓ Show less ↑12 more values in Identification, Logistics.
Identification 7
| Part number | VW3M9106 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480610837 |
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 0.22 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for VW3M9106
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the VW3M9106
What is the HS code of VW3M9106 for customs?
The tariff (HS) code on file for VW3M9106 is 853690.
What is the EAN of VW3M9106?
The EAN (GTIN) of VW3M9106 is 3606480610837.
Where does VW3M9106 ship from, and how fast?
VW3M9106 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
