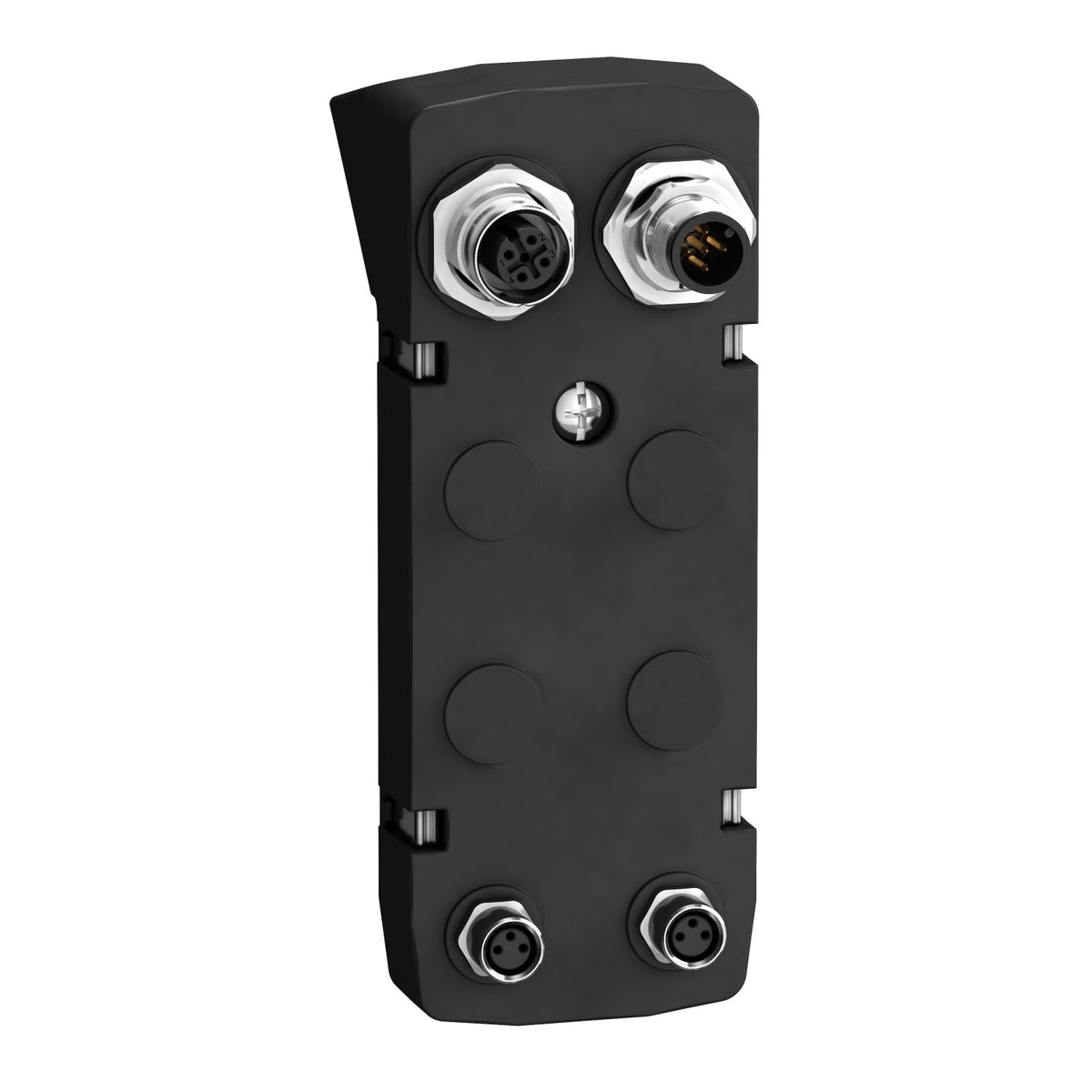

Schneider Electric VW3M9104 Lexium 32i CANopen Connector Module 2 DI

Schneider Electric VW3M9104 Lexium 32i CANopen Industrial Connector Module 2 DI Servo Drive Accessory

Name: Schneider Electric VW3M9104 Lexium 32i CANopen Industrial Connector Module 2 DI Servo Drive Accessory
Brand: Schneider Electric
SKU: VW3M9104
Price: 253.51 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: VW3M9104

Catalog No: VW3M9104

Series: Lexium 32i

Tariff Code (HS): 853690

Poles: 3P

Communication: CANmotion, CANopen DS402

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$253.51

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric VW3M9104 is a CANopen industrial connector module for the Lexium 32i range, wiring 2 source-logic discrete inputs into the LXM32i CANopen drive control unit for the BMI power-stage servo motor. It communicates over CANmotion and CANopen DS402, weighs 0.211 kg, and ships 12 to a package 2 carton without an integrated safety function.

Technical Specifications

Reference	VW3M9104
Brand	Schneider Electric
GTIN	3606480610813
Range of Product	Lexium 32i
Product or Component Type	Connector module
Accessory / Separate Part Category	Connection accessories
Electrical Connection	Industrial connector
Product Compatibility	Drive control unit LXM32i CANopen
Accessory / Separate Part Destination	Motor BMI with drive control unit Lexium 32i
Communication Interface	CANmotion \| CANopen DS402
Input/Output Type	2 discrete inputs
Discrete Input Logic	Source
Net Weight	0.211 kg
Number of Units in Package 2	12

Selection Notes

The VW3M9104 brings 2 source-logic discrete inputs to the LXM32i CANopen drive over an industrial connector, without the STO safety function built into the 2 DI and 4 DI STO versions in the same Lexium 32i connector-module family. Choose it when the machine's safety circuit is handled elsewhere and hardware safe-torque-off at this connector is not required.

Technical Details

Short Description

CANopen industrial connector module, Lexium 32i, 2 DI source logic, for LXM32i drives.

Catalog No

VW3M9104

Number of Poles

Delivery Date (Days)

30 days

Model Number

LXM32i CANopen

Tariff Code

853690
