Schneider Electric VW3M9010 Lexium 32i Braking Resistor Connector Module Servo Drive Accessory

% $-192.77

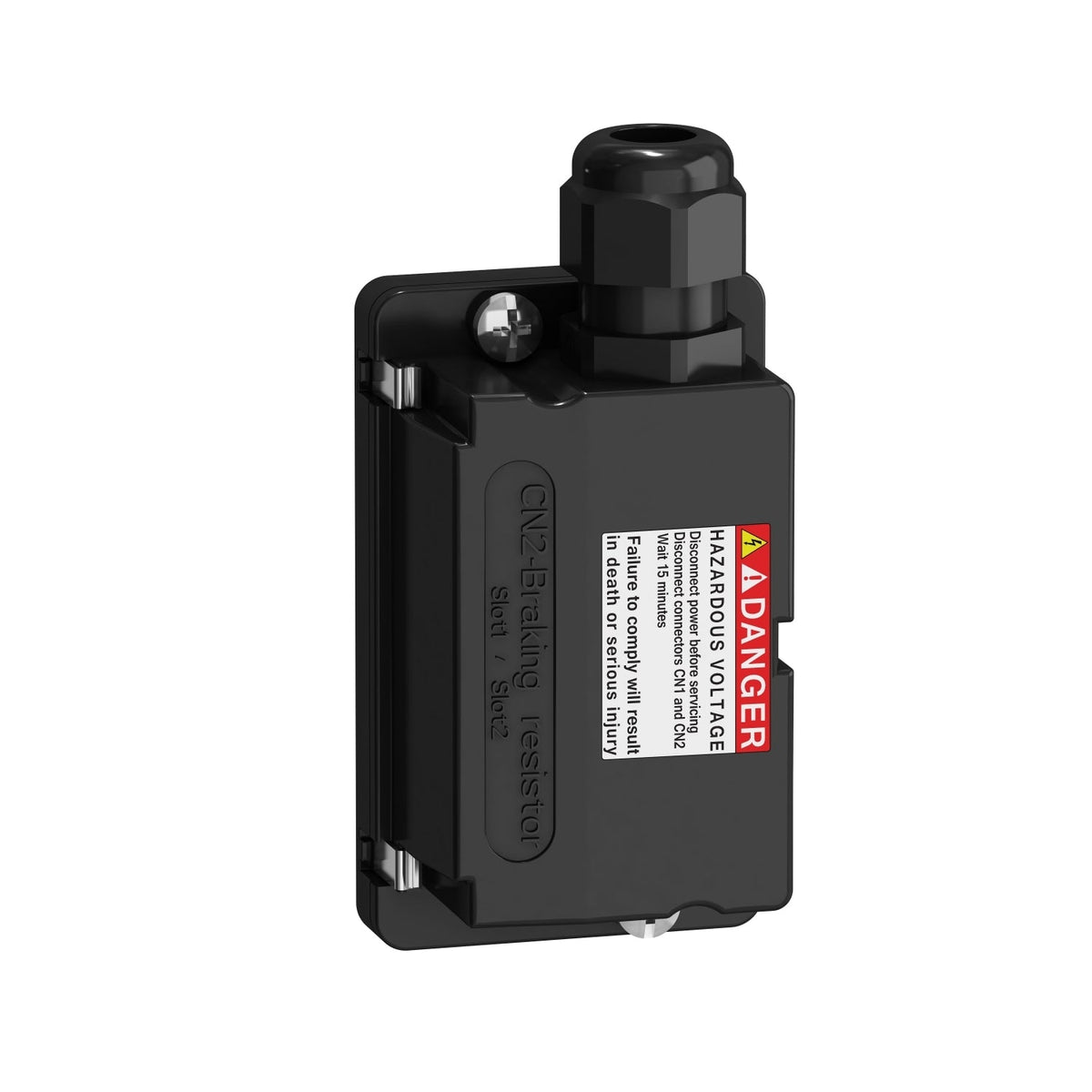

Schneider Electric VW3M9010 Lexium 32i Braking Resistor Connector Module
Schneider Electric VW3M9010 Lexium 32i Braking Resistor Connector Module

Schneider Electric VW3M9010 Lexium 32i Braking Resistor Connector Module Servo Drive Accessory

Brand: Schneider Electric
Reference No: VW3M9010
Catalog No: VW3M9010
Series: Lexium 32i
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$192.77

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3M9010 is a braking resistor connector module for the Lexium 32i range, used to wire an external braking resistor to the LXM32i drive control unit via a terminal-block connector. It is compatible with the LXM32i drive and the BMI power-stage servo motor, weighs 0.179 kg, and ships 16 to a package 2 carton.

Technical Specifications

Reference VW3M9010
Brand Schneider Electric
GTIN 3606480595547
Range of Product Lexium 32i
Product or Component Type Braking resistor connector
Accessory / Separate Part Category Connection accessories
Product Compatibility Drive control unit LXM32i | Servo motor with power stage BMI
Accessory / Separate Part Destination Motor BMI with drive control unit Lexium 32i
Device Connection External braking resistor
Connector Type Terminal block
Net Weight 0.179 kg
Number of Units in Package 2 16

Selection Notes

The VW3M9010 wires an external braking resistor into the LXM32i drive control unit through a terminal-block connector, for applications where the drive's motoring load needs supplementary dynamic braking. It fits the same LXM32i / BMI motor combination as the mains power supply connection modules in the Lexium 32i accessory line.

Technical Details

Short Description
Braking resistor connector module, Lexium 32i, terminal-block, for LXM32i servo drives.
Catalog No
VW3M9010
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LXM32i
Tariff Code
853690
