- Part number
- VW3M9001

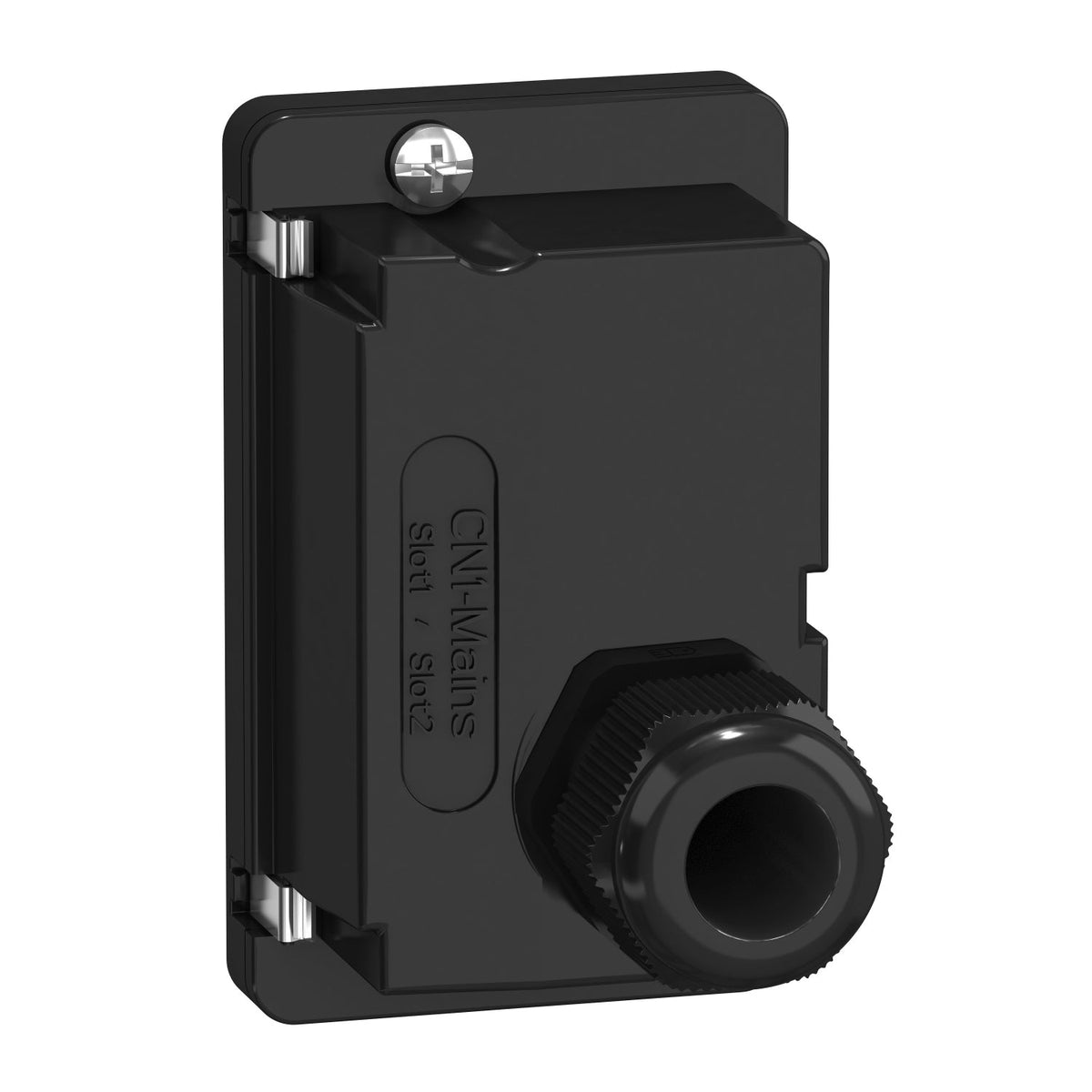

Lexium 32iSchneider Electric VW3M9001 Lexium 32i Mains Power Supply Connection Module Single Phase Servo Drive Accessory
Single-phase mains power supply connection module, Lexium 32i, terminal-block, for LXM32i.
Description
About the VW3M9001
About the VW3M9001
The Schneider Electric VW3M9001 is a single-phase mains power supply connection module for the Lexium 32i range, used to wire mains power into the LXM32i drive control unit via a terminal-block connector. It is compatible with the LXM32i drive and the BMI power-stage servo motor, weighs 0.188 kg, and ships 16 to a package 2 carton.
Selection Notes
The VW3M9001 wires single-phase mains into the LXM32i drive control unit through a terminal-block connector, for installations running the drive from a single-phase supply. Pick the three-phase version in the same Lexium 32i connection-module family when the installation's mains supply is three-phase instead.
Specification
Full specification
Main 3
| Range of Product | Lexium 32i |
|---|---|
| Product or Component Type | Power supply connector |
| Accessory / separate part category | Connection accessories |
Complementary 6
| Product compatibility | Drive control unit LXM32i, Servo motor with power stage BMI |
|---|---|
| Accessory / separate part destination | Motor BMI with drive control unit Lexium 32i |
| Range Compatibility | Lexium 32i |
| Connector Type | Terminal block |
| Phase | Single phase |
| Net Weight | 0.414 lb(US) (0.188 kg) |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 22 specifications ↓ Show less ↑12 more values in Identification, Logistics.
Identification 7
| Part number | VW3M9001 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480595509 |
Logistics 5
| Country of origin | PL |
|---|---|
| Shipping weight | 0.188 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for VW3M9001
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the VW3M9001
What is the HS code of VW3M9001 for customs?
The tariff (HS) code on file for VW3M9001 is 853690.
What is the EAN of VW3M9001?
The EAN (GTIN) of VW3M9001 is 3606480595509.
Where does VW3M9001 ship from, and how fast?
VW3M9001 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
