- Part number
- VW3M8A21R05
LexiumSchneider Electric VW3M8A21R05 Lexium 16 BCH16 Encoder Cable 5 m Shielded MIL Connector Servo Cable
Shielded BCH16 encoder cable, Easy Lexium 16, 5 m, MIL connector, for LXM16D servo drives.
Description
About the VW3M8A21R05
About the VW3M8A21R05

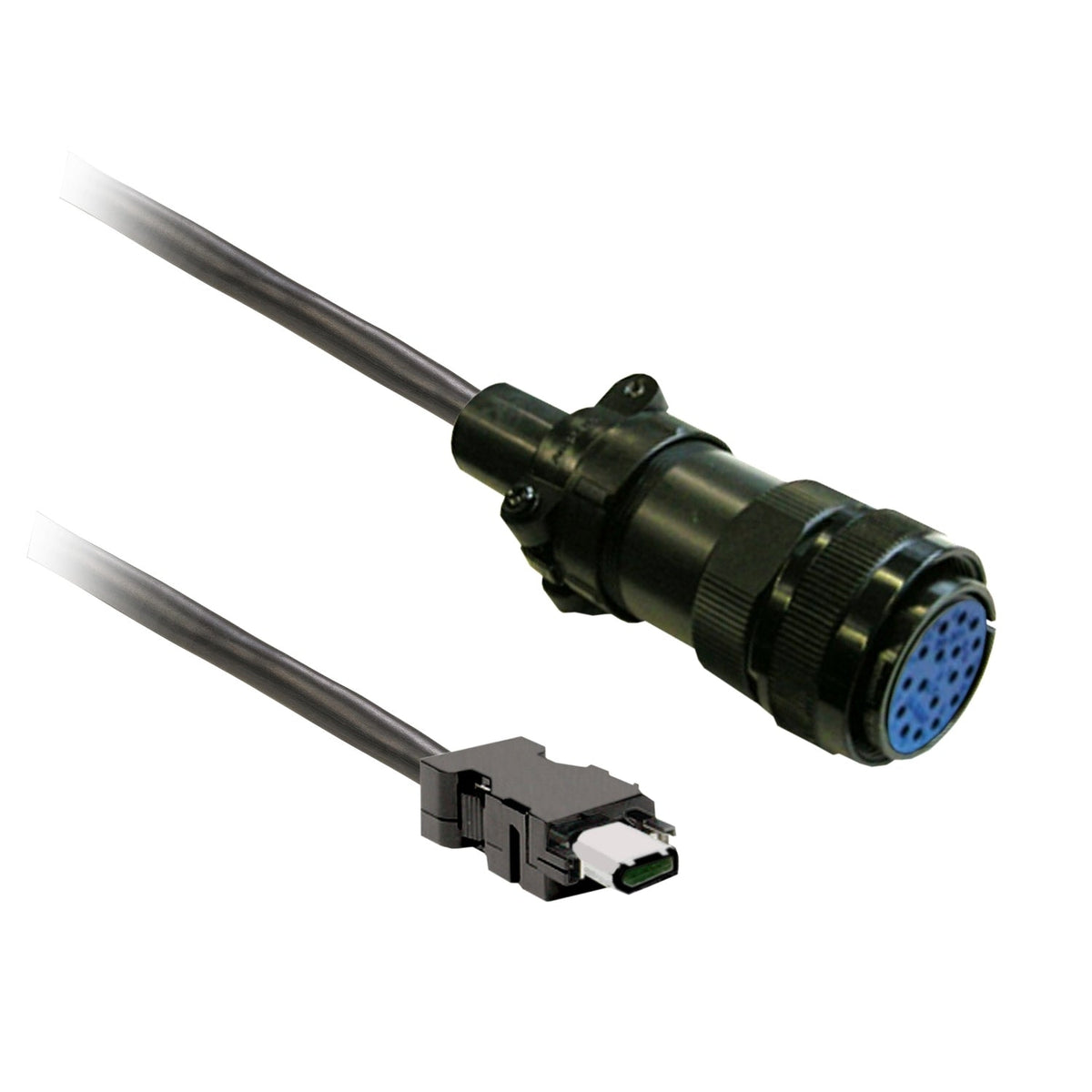

The Schneider Electric VW3M8A21R05 is a shielded encoder cable for BCH16 servo motors in the Lexium range, running 5 m with a 9-pole MIL connector at one end and a Firewire connector at the other. It carries 3 x (2 x 0.2 mm²) + (2 x 0.5 mm²) conductors and fits the Easy Lexium 16 BCH16 0.85-1.5 kW motor range with the LXM16D servo drive.
Selection Notes
The VW3M8A21R05 terminates in a 9-pole MIL connector and a Firewire connector, matching the Easy Lexium 16 BCH16 motor to the LXM16D servo drive over a shielded 5 m run. Use the MIL-connector cable when the installation calls for a military-style shell rather than a plastic connector housing, and size the drive side to the 1 kW or 1.5 kW LXM16D variant it is rated for.
Specification
Full specification
Main 6
| Range of product | Lexium |
|---|---|
| Accessory / separate part category | Connection accessory |
| Accessory / separate part type | Encoder cable |
| Product or component type | Cable |
| Accessory / separate part destination | From servo motor to servo drive |
| Cable composition | 3 x (2 x 0.2 mm²) + (2 x 0.5 mm²) |
Complementary 6
| Product compatibility | Servo motor BCH16 130 mm, 0.85 kW, with brake, Servo motor BCH16 130 mm, 0.85 kW, without brake, Servo motor BCH16 100 mm, 1 kW, with brake, Servo motor BCH16 100 mm, 1 kW, without brake, Servo motor BCH16 130 mm, 1 kW, with brake, Servo motor BCH16 130 mm, 1 kW, without brake, Servo motor BCH16 130 mm, 1.5 kW, with brake, Servo motor BCH16 130 mm, 1.5 kW, without brake, Motion servo drive LXM16D, 1 kW, 200...230 V, Motion servo drive LXM16D, 1.5 kW, 200...230 V |
|---|---|
| Electrical connection | 1 connector 9-pole MIL connector 9 pin(s), 1 connector Firewire 10 pin(s) |
| Range compatibility | Easy Lexium 16 |
| Type of cable | Shielded cable |
| Cable length | 5 m |
| Net weight | 0.38 kg |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 41 specifications ↓ Show less ↑28 more values in Identification, Logistics.
Identification 6
| Part number | VW3M8A21R05 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.600 cm |
| Package 1 Width | 25.000 cm |
| Package 1 Length | 35.000 cm |
| Package 1 Weight | 528.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.744 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 41.952 kg |
| Shipping weight | 0.38 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for VW3M8A21R05
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the VW3M8A21R05
What is the HS code of VW3M8A21R05 for customs?
The tariff (HS) code on file for VW3M8A21R05 is 854442.
Where does VW3M8A21R05 ship from, and how fast?
VW3M8A21R05 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
