- Part number
- VW3M5A22R05

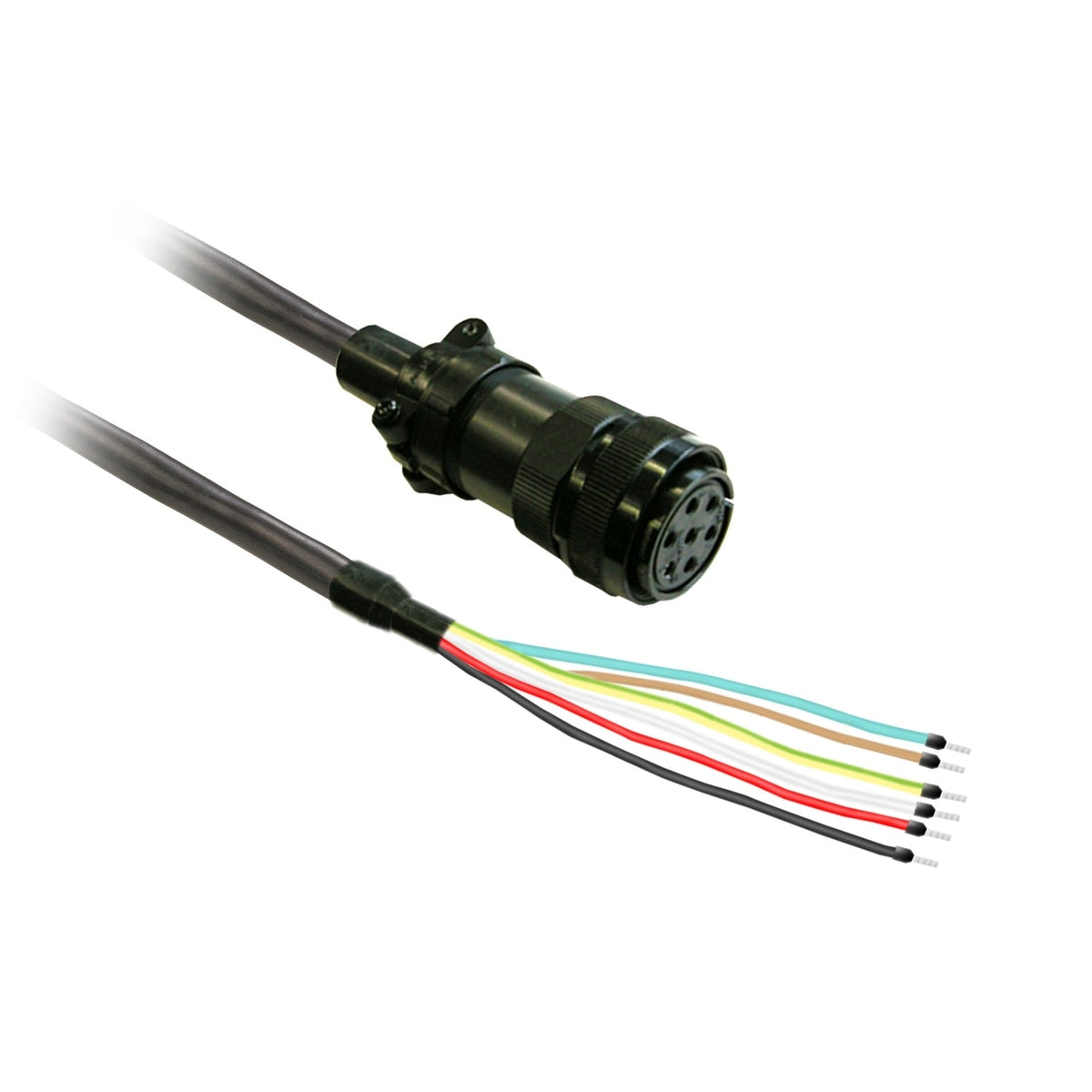

LexiumSchneider Electric VW3M5A22R05 Lexium 16 BCH16 Power and Brake Cable 6G2.0mm² 5 m MIL Connector Servo Cable
5 m unshielded power and brake cable, 6x2.0mm², MIL connector, for BCH16 servo motors with brake.
Description
About the VW3M5A22R05
About the VW3M5A22R05
The Schneider Electric VW3M5A22R05 is a 5 m unshielded power-and-brake cable for the Easy Lexium 16 servo range, connecting a BCH16 servo motor to an LXM16D servo drive. It carries 6 x 2.0 mm² conductors terminated in a 7-pole MIL female connector on the drive end and flying leads on the motor end, compatible with 0.85-1.5 kW BCH16 motors fitted with a brake.
Selection Notes
VW3M5A22R05 pairs the 7-pole MIL female connector with flying-lead motor termination, which suits panel builds that route power and brake wiring through a quick-disconnect drive-side plug rather than a terminal block. The 6 x 2.0 mm² conductor set and unshielded jacket match the 0.85-1.5 kW BCH16 motor/LXM16D drive combination at 5 m; longer runs or shielded requirements call for a different cable in the Easy Lexium 16 range.
Specification
Full specification
Main 6
| Range of product | Lexium |
|---|---|
| Accessory / separate part category | Connection accessory |
| Accessory / separate part type | Power cable |
| Product or component type | Cable |
| Accessory / separate part destination | From servo motor to servo drive |
| Cable composition | 6 x 2.0 mm² |
Complementary 6
| Product compatibility | Servo motor BCH16 130 mm, 0.85 kW, with brake, Servo motor BCH16 100 mm, 1 kW, with brake, Servo motor BCH16 130 mm, 1 kW, with brake, Servo motor BCH16 130 mm, 1.5 kW, with brake, Motion servo drive LXM16D, 1 kW, 200...230 V, Motion servo drive LXM16D, 1.5 kW, 200...230 V |
|---|---|
| Electrical connection | 1 connector 7-pole MIL female connector 7 pin(s), 1 free end with flying leads lugs 6 pin(s) |
| Range compatibility | Easy Lexium 16 |
| Type of cable | Unshielded cable |
| Cable length | 5 m |
| Net weight | 0.9 kg |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 35 specifications ↓ Show less ↑22 more values in Identification, Logistics.
Identification 6
| Part number | VW3M5A22R05 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.0 cm |
| Package 1 Width | 35.0 cm |
| Package 1 Length | 3.6 cm |
| Package 1 Weight | 1.339 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.136 kg |
| Shipping weight | 0.9 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for VW3M5A22R05
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the VW3M5A22R05
What is the HS code of VW3M5A22R05 for customs?
The tariff (HS) code on file for VW3M5A22R05 is 854442.
Where does VW3M5A22R05 ship from, and how fast?
VW3M5A22R05 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
