Schneider Electric VW3M5A21R05 Lexium 16 BCH16 Power Cable 4G2.0 mm² 5 m MIL Connector Servo Cable

% $-150.34

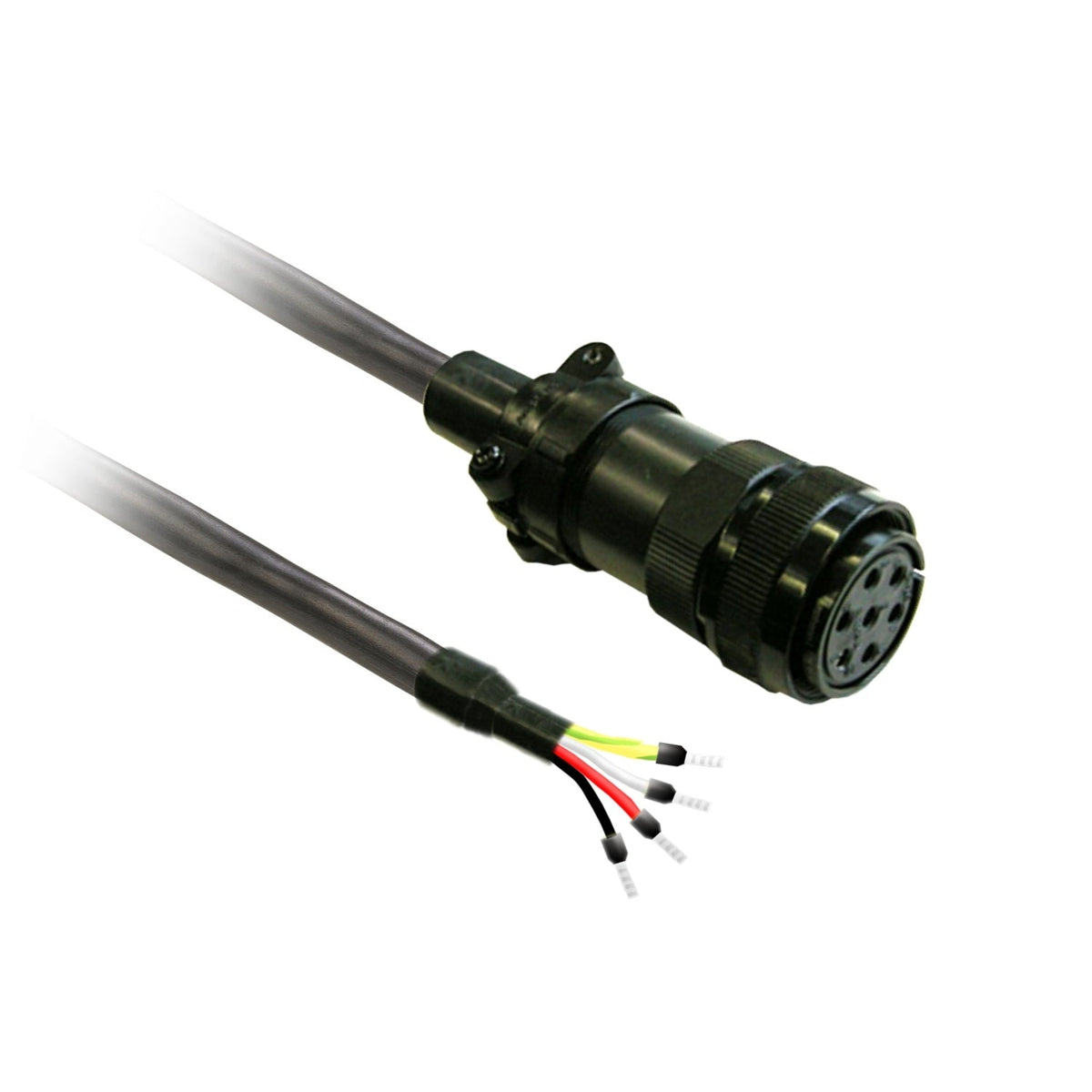

Schneider Electric VW3M5A21R05 Lexium 16 BCH16 power cable 5 m - MIL connector
Schneider Electric VW3M5A21R05 Lexium 16 BCH16 power cable 5 m - MIL connector

Schneider Electric VW3M5A21R05 Lexium 16 BCH16 Power Cable 4G2.0 mm² 5 m MIL Connector Servo Cable

Brand: Schneider Electric
Reference No: VW3M5A21R05
Catalog No: VW3M5A21R05
Series: Lexium
Tariff Code (HS): 854442
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$150.34

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3M5A21R05 is an unshielded 5 m power cable that wires a BCH16 servo motor to a Lexium 16D (LXM16D) servo drive, with 4 x 2.0 mm² conductors. It has a 4-pole MIL female connector on the motor side and flying-lead lugs on the drive side. Weighing 0.8 kg, it covers the 0.85-1.5 kW BCH16 motor frames in the Easy Lexium 16 range.

Technical Specifications

Reference VW3M5A21R05
Brand Schneider Electric
Range Compatibility Easy Lexium 16
Product Type Cable (power cable)
Accessory Type Connection accessory
Cable Composition 4 x 2.0 mm²
Cable Length 5 m
Shielding Unshielded
Connector - Motor Side 4-pole MIL female connector
Connector - Drive Side Free end with flying-lead lugs
Compatible Motors Servo motor BCH16, 100/130 mm frame, 0.85-1.5 kW, without brake
Compatible Drives Motion servo drive LXM16D, 1-1.5 kW, 200-230 V
Net Weight 0.8 kg

Selection Notes

The VW3M5A21R05 steps up to the 4-pole MIL connector and 2.0 mm² conductors used on the higher-power 100-130 mm frame BCH16 motors, versus the smaller TE connector on the VW3M5A11R05 for the 40-80 mm frames. It is the preassembled equivalent of the VW3M5A21 military connection kit.

Technical Details

Short Description
Lexium 16 BCH16 power cable, 4x2.0 mm², 5 m, unshielded, MIL connector, 0.8 kg.
Catalog No
VW3M5A21R05
Delivery Date (Days)
30 days
Model Number
Lexium 16 BCH16
Tariff Code
854442
