Schneider Electric VW3M5A11R05 Lexium 16 BCH16 Power Cable 4G0.75 mm² 5 m Servo Cable

% $-51.45

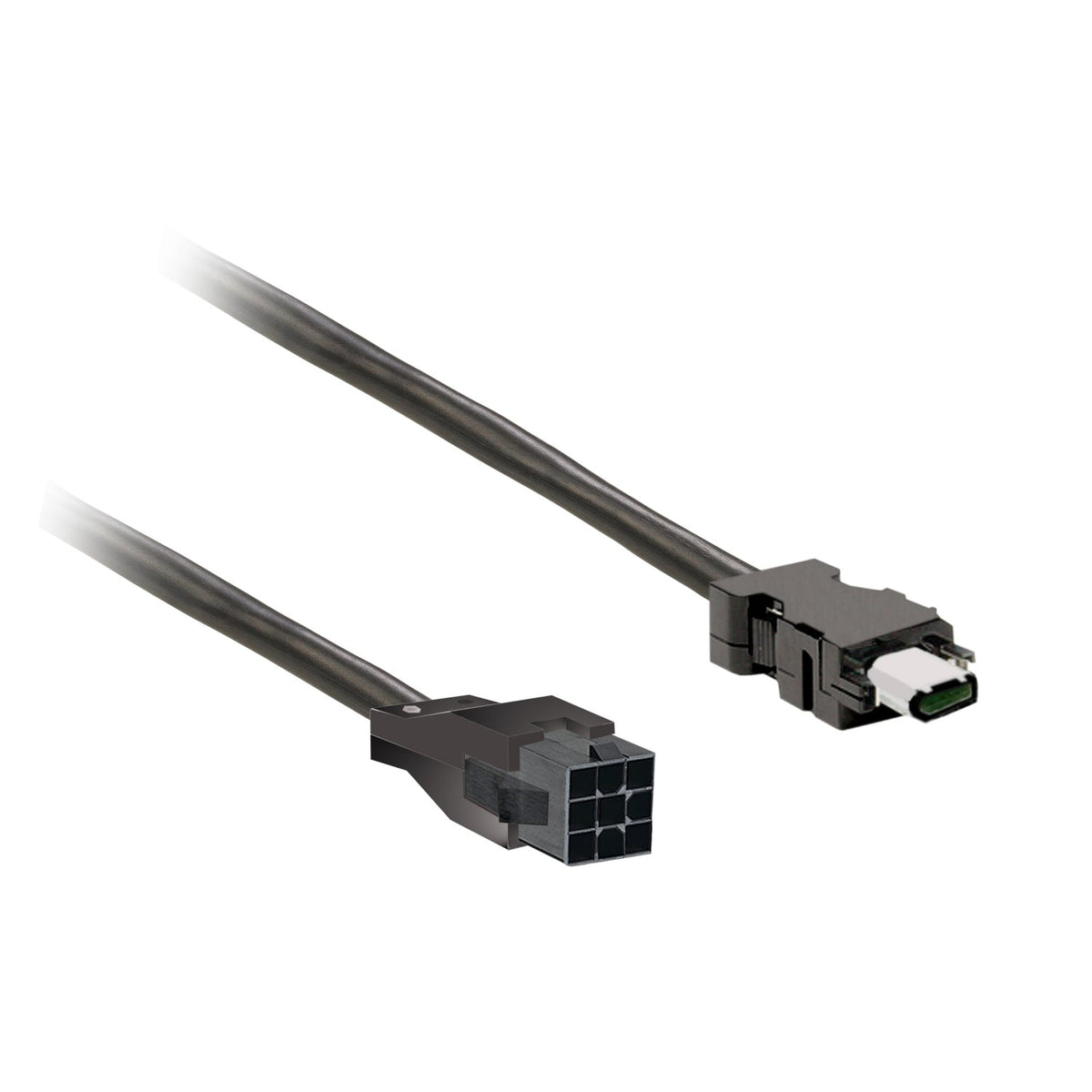

Schneider Electric VW3M5A11R05 Lexium 16 BCH16 power cable 5 m - TE connector
Schneider Electric VW3M5A11R05 Lexium 16 BCH16 power cable 5 m - TE connector

Schneider Electric VW3M5A11R05 Lexium 16 BCH16 Power Cable 4G0.75 mm² 5 m Servo Cable

Brand: Schneider Electric
Reference No: VW3M5A11R05
Catalog No: VW3M5A11R05
Series: Lexium
Tariff Code (HS): 854442
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$51.45

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3M5A11R05 is an unshielded 5 m power cable that wires a BCH16 servo motor to a Lexium 16D (LXM16D) servo drive, with 4 x 0.75 mm² conductors. It has a 4-position TE connector on the motor side and flying-lead lugs on the drive side. Weighing 0.45 kg, it covers the 0.1-0.75 kW BCH16 motor frames in the Easy Lexium 16 range.

Technical Specifications

Reference VW3M5A11R05
Brand Schneider Electric
Range Compatibility Easy Lexium 16
Product Type Cable (power cable)
Accessory Type Connection accessory
Cable Composition 4 x 0.75 mm²
Cable Length 5 m
Shielding Unshielded
Connector - Motor Side 4-position TE connector
Connector - Drive Side Free end with flying-lead lugs
Compatible Motors Servo motor BCH16, 40/60/80 mm frame, 0.1-0.75 kW, with or without brake
Compatible Drives Motion servo drive LXM16D, 0.1-0.75 kW, 200-230 V
Net Weight 0.45 kg

Selection Notes

The VW3M5A11R05 is the preassembled equivalent of the VW3M5A11 plastic connection kit, supplying the same 4-position TE connector already terminated on a 5 m unshielded cable. Pick it over the kit when on-site crimping is not wanted; pair it with the VW3M5A12R05 brake cable when the motor is fitted with a holding brake.

Technical Details

Short Description
Lexium 16 BCH16 power cable, 4x0.75 mm², 5 m, unshielded, TE connector, 0.45 kg.
Catalog No
VW3M5A11R05
Delivery Date (Days)
30 days
Model Number
Lexium 16 BCH16
Tariff Code
854442
