- Part number
- VW3M5105R100

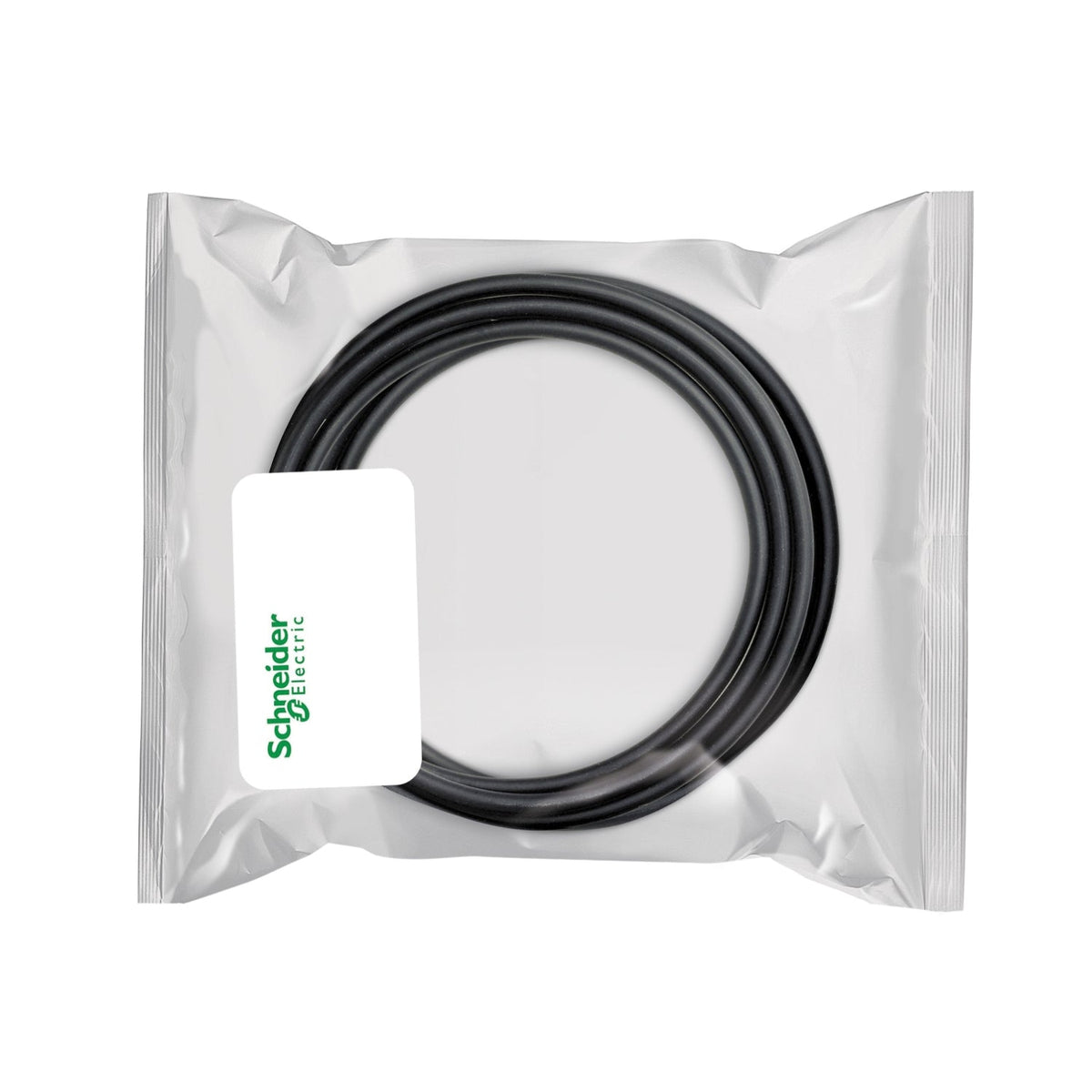

Schneider Electric VW3M5105R100 Lexium BSH Servo Motor Power Cable 4x6 mm² + 2x1 mm² 10 m Servo Cable
Lexium BMH servo motor power cable, 4x6 mm² + 2x1 mm², 10 m, M40 connector, 6.5 kg.
Description
About the VW3M5105R100
About the VW3M5105R100
The Schneider Electric VW3M5105R100 is a preassembled 10 m power cable that connects a Lexium BMH servo motor to its servo drive, wired with 4 x 6 mm² + 2 x 1 mm² conductors. It terminates in an industrial M40 connector on the motor side and a free end for wiring into the drive terminal block. Weighing 6.5 kg, it fits the Lexium 32 range.
Selection Notes
The VW3M5105R100 steps up to 6 mm² conductors, the heaviest-gauge cable in the BMH power cable line, for the highest-current 190 mm frame motors in the Lexium 32 range. At 10 m it suits drives mounted farther from the motor; the 5 m VW3M5105R50 is the better fit for shorter cabinet runs.
Specification
Full specification
Main 8
| Product or Component Type | Power cable |
|---|---|
| Accessory / Separate Part Type | Preassembled power cordset |
| Accessory / separate part category | Connection accessories |
| Product compatibility | Servo motor BMH, 1 7.5 in (190 mm))B2 IEC 60204-1, Servo motor BMH, 2 7.5 in (190 mm))E IEC 60204-1, Servo motor BMH, 3 7.5 in (190 mm))E IEC 60204-1, Servo motor BMH, 3 8.07 in (205 mm))B2 IEC 60204-1 |
| Accessory / separate part destination | Between servo motor and servo drive |
| Range Compatibility | Lexium 32 |
| Cable length | 32.8 ft (10 m) |
| Cable composition | 4 x 6 mm² + 2 x 1 mm² |
Complementary 2
| Electrical connection | Free end servo drive side, Connector - industrial M40 servo motor side |
|---|---|
| Net Weight | 14.3 lb(US) (6.5 kg) |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 23 specifications ↓ Show less ↑12 more values in Identification, Logistics.
Identification 7
| Part number | VW3M5105R100 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606485263878 |
Logistics 5
| Country of origin | CZ |
|---|---|
| Shipping weight | 6.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for VW3M5105R100
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the VW3M5105R100
What is the HS code of VW3M5105R100 for customs?
The tariff (HS) code on file for VW3M5105R100 is 854442.
What is the EAN of VW3M5105R100?
The EAN (GTIN) of VW3M5105R100 is 3606485263878.
Where does VW3M5105R100 ship from, and how fast?
VW3M5105R100 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
