Schneider Electric VW3M5103R50 Lexium BSH Servo Motor Power Cable 4x4 mm² + 2x1 mm² 5 m Servo Cable

% $-303.79
Schneider Electric VW3M5103R50 Lexium BSH/BMH power cable 5 m - 4x4 mm²
Schneider Electric VW3M5103R50 Lexium BSH/BMH power cable 5 m - 4x4 mm²

Schneider Electric VW3M5103R50 Lexium BSH Servo Motor Power Cable 4x4 mm² + 2x1 mm² 5 m Servo Cable

Brand: Schneider Electric
Reference No: VW3M5103R50
Catalog No: VW3M5103R50
Tariff Code (HS): 854442
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$303.79

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

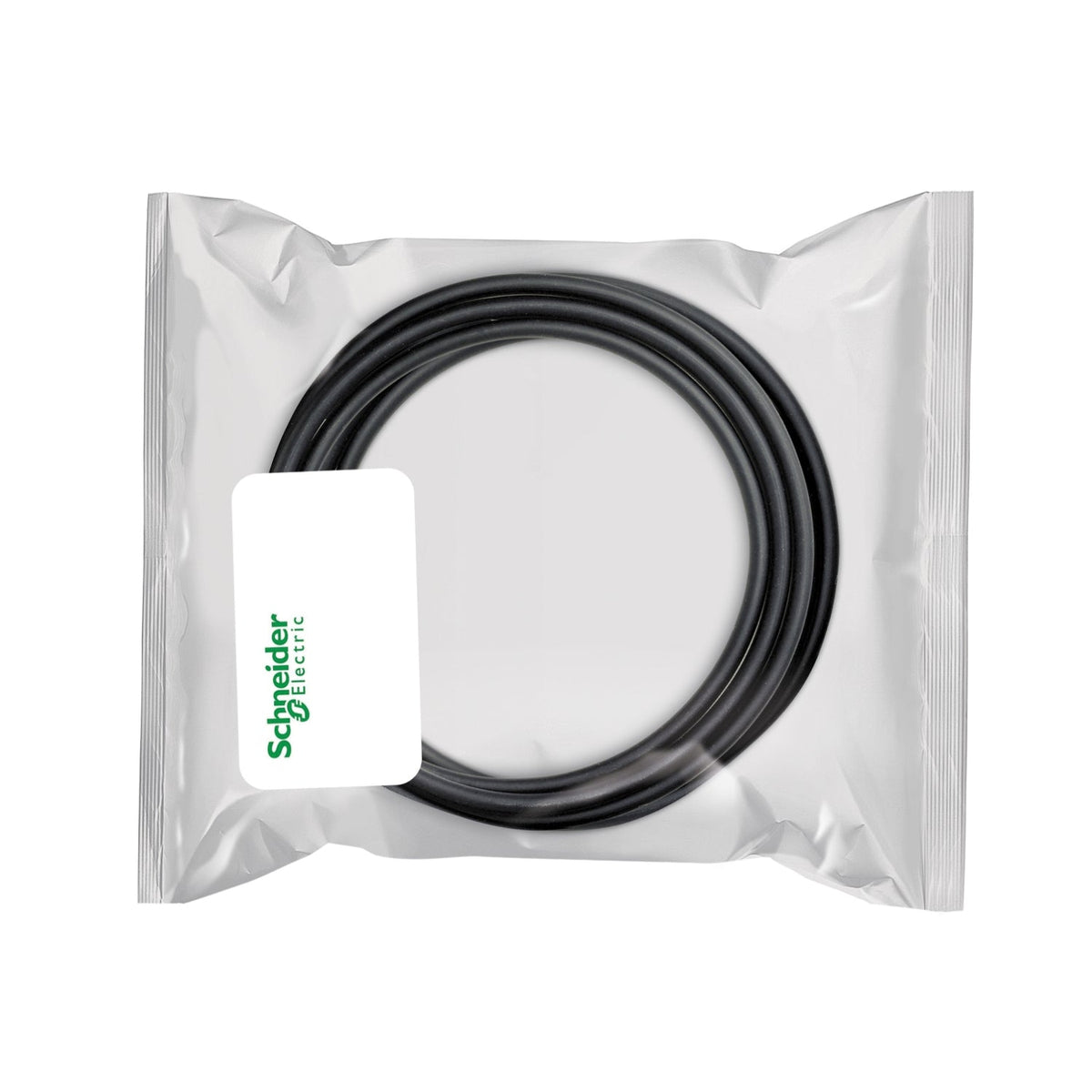

The Schneider Electric VW3M5103R50 is a preassembled 5 m power cable that connects a Lexium BSH or BMH servo motor to its servo drive, wired with 4 x 4 mm² + 2 x 1 mm² conductors. It terminates in an industrial M40 connector on the motor side and a free end for wiring into the drive terminal block. Weighing 2.13 kg, it fits the Lexium 05, Lexium 15 and Lexium 32 ranges.

Technical Specifications

Reference VW3M5103R50
Brand Schneider Electric
Range Compatibility Lexium 32, Lexium 15, Lexium 05
GTIN 3389119207409
Product Type Power cable
Accessory Type Preassembled power cordset
Cable Composition 4 x 4 mm² + 2 x 1 mm²
Cable Length 5 m
Connector - Motor Side Industrial M40 connector
Connector - Drive Side Free end
Compatible Motors Servo motor BMH, 190/205 mm frame; Servo motor BSH, 140 mm frame
Net Weight 2.13 kg
Country of Manufacture Czech Republic (CZ)
Units per Package 30

Selection Notes

The VW3M5103R50 sits between the 3 m VW3M5103R30 and the 10 m VW3M5103R100, covering mid-range cabinet-to-motor distances without the extra weight of the longest cable. All three share the same 4 x 4 mm² + 2 x 1 mm² conductor set and M40 connector, differing only in length.

Technical Details

Short Description
Lexium BSH/BMH servo motor power cable, 4x4 mm² + 2x1 mm², 5 m, M40 connector, 2.13 kg.
Catalog No
VW3M5103R50
Delivery Date (Days)
30 days
Model Number
Lexium BSH/BMH
Tariff Code
854442
