Schneider Electric VW3M5101R30 Lexium Servo Motor Power Cable 4x1.5 mm² + 2x1 mm² 3 m BSH BDH Servo Cable

% $-120.52

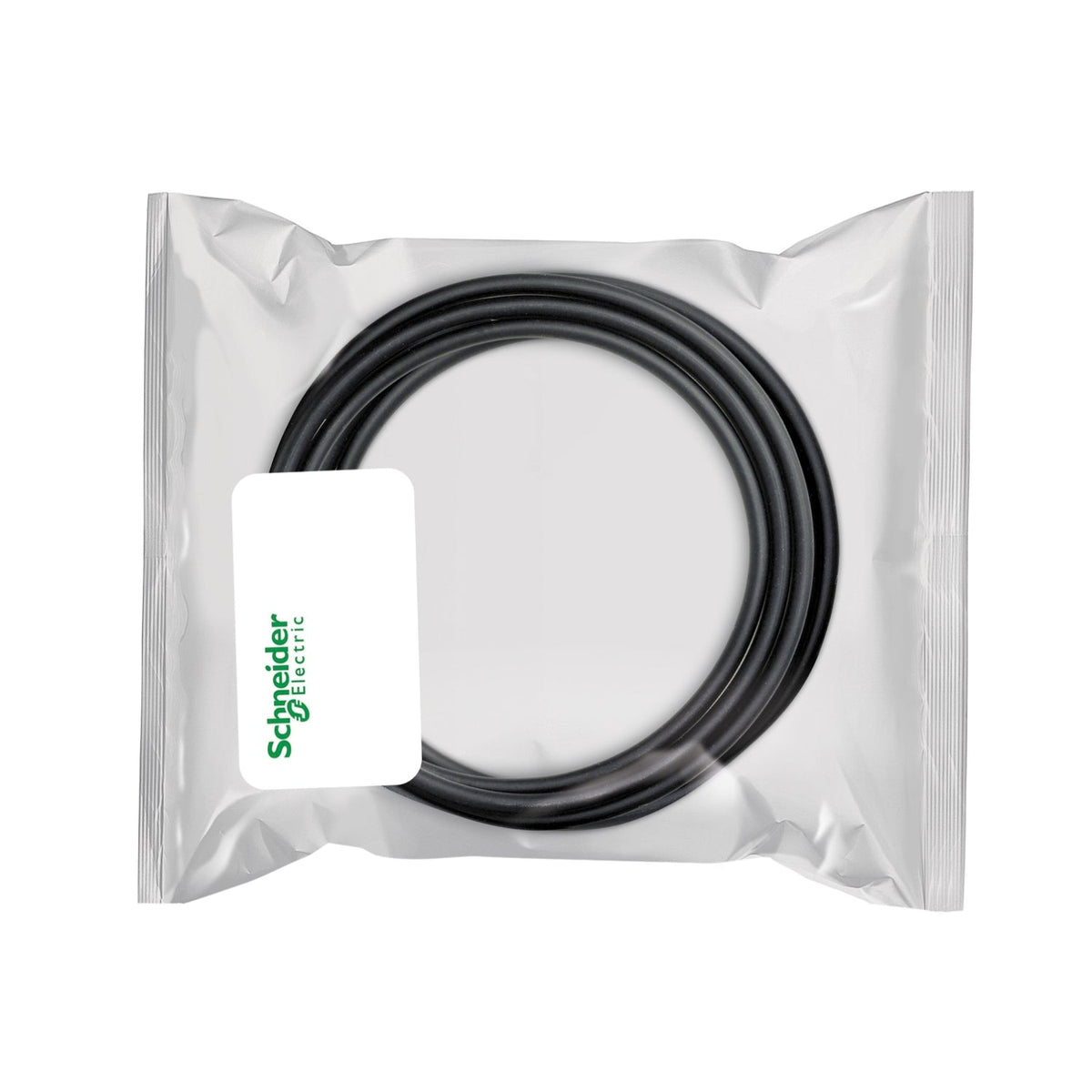

Schneider Electric VW3M5101R30 Lexium Servo Motor Power Cable 3 m
Schneider Electric VW3M5101R30 Lexium Servo Motor Power Cable 3 m

Schneider Electric VW3M5101R30 Lexium Servo Motor Power Cable 4x1.5 mm² + 2x1 mm² 3 m BSH BDH Servo Cable

Brand: Schneider Electric
Reference No: VW3M5101R30
Catalog No: VW3M5101R30
Tariff Code (HS): 854442
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$120.52

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3M5101R30 is a 3 m preassembled power cable between a BSH or BDH servo motor and a Lexium 05, 15 or 32 servo drive. It has a 4 x 1.5 mm² + 2 x 1 mm² conductor composition, terminates in an industrial M23 connector on the motor side and a free end on the drive side, and weighs 0.81 kg.

Technical Specifications

Reference VW3M5101R30
GTIN 3389119207294
Brand Schneider Electric
Range Compatibility Lexium 05 / Lexium 32 / Lexium 15
Product or Component Type Power cable
Accessory / Separate Part Type Preassembled power cordset
Accessory / Separate Part Destination Between servo motor and servo drive
Product Compatibility Servo motor BMH, 70/100/140 mm frame; servo motor BSH, 55/70/100/140 mm frame
Cable Length 3 m (9.8 ft)
Cable Composition 4 x 1.5 mm² + 2 x 1 mm²
Electrical Connection Industrial M23 connector (motor side); free end (drive side)
Net Weight 0.81 kg
Number of Units in Package 2 75

Selection Notes

The VW3M5101R30 is the 3 m version of the Lexium power-cable family, shorter than the 5 m VW3M5101R50 and 10 m VW3M5101R100 - pick it for drive-to-motor runs under about 3 m where a longer cable would need coiling or extra cable management. All three lengths share the same 4 x 1.5 mm² + 2 x 1 mm² conductor set and M23 motor-side connector, with a free end for drive-side termination.

Applications

Wires power between a BSH or BDH servo motor and a Lexium 05, 15 or 32 servo drive on compact machine layouts where the drive mounts close to the motor.

Technical Details

Short Description
3 m power cable between BSH/BDH servo motor and Lexium servo drive, 4x1.5 mm² + 2x1 mm².
Catalog No
VW3M5101R30
Delivery Date (Days)
30 days
Model Number
Lexium Servo Motor Power Cable
Tariff Code
854442
