- Part number
- VW3M5101R100

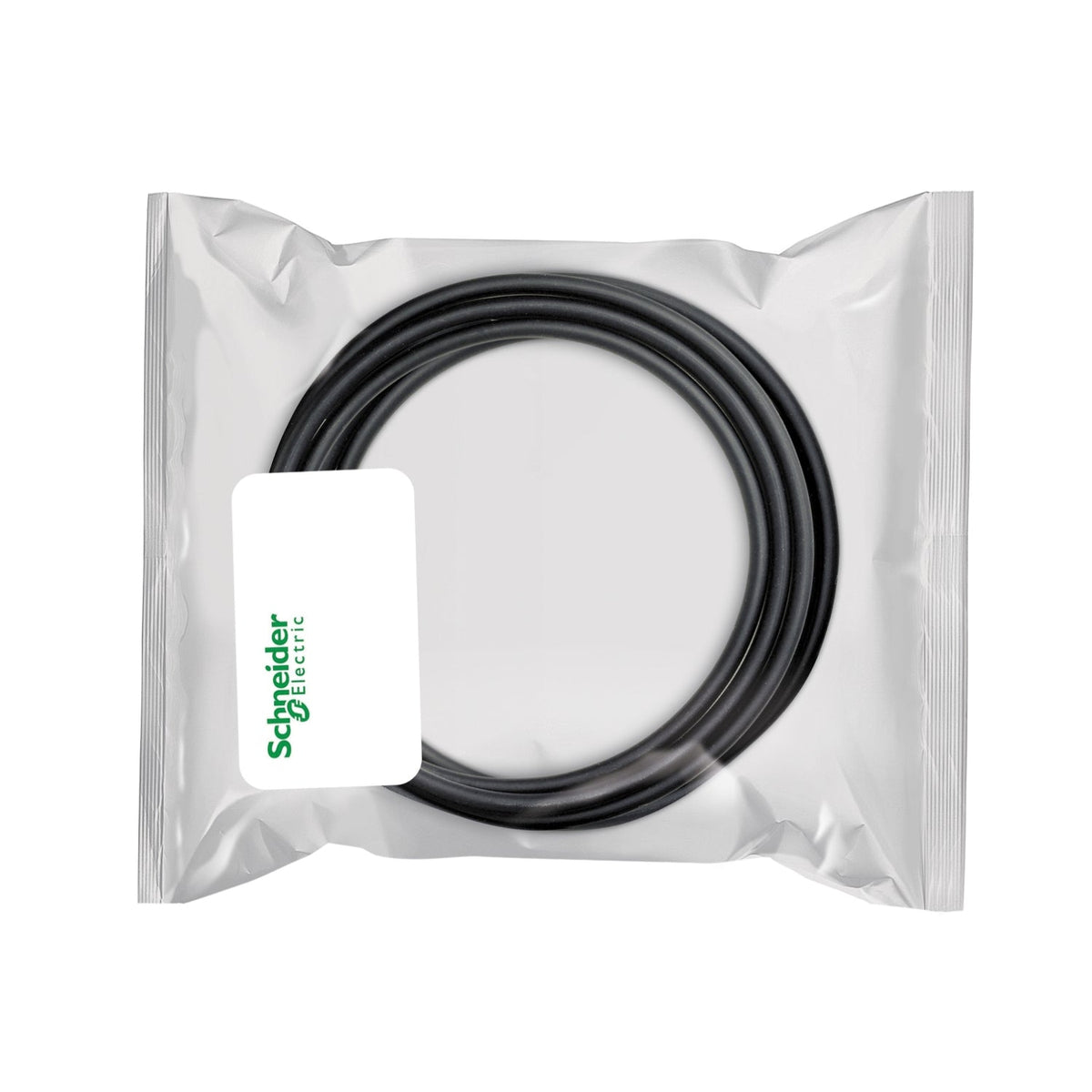

Schneider Electric VW3M5101R100 Lexium Servo Motor Power Cable 4x1.5 mm² + 2x1 mm² 10 m BSH BDH Servo Cable
10 m power cable between BSH/BDH servo motor and Lexium servo drive, 4x1.5 mm² + 2x1 mm².
Description
About the VW3M5101R100
About the VW3M5101R100
The Schneider Electric VW3M5101R100 is a 10 m preassembled power cable between a BSH or BDH servo motor and a Lexium 05, 15 or 32 servo drive. It has a 4 x 1.5 mm² + 2 x 1 mm² conductor composition, terminates in an industrial M23 connector on the motor side and a free end on the drive side, and weighs 2.29 kg.
Selection Notes
The VW3M5101R100 is the 10 m version of the Lexium power-cable family, which also ships as the 3 m VW3M5101R30 and 5 m VW3M5101R50 - pick the length that matches the run between the servo drive and the motor without excess coiled cable, since all three share the same 4 x 1.5 mm² + 2 x 1 mm² conductor set and M23 motor connector. The free end on the drive side is terminated at the drive's power terminals during installation rather than plugging in.
Applications
Wires power between a BSH or BDH servo motor and a Lexium 05, 15 or 32 servo drive in machine-building installations using Schneider's pre-terminated motor cordsets.
Specification
Full specification
Main 8
| Product or Component Type | Power cable |
|---|---|
| Accessory / Separate Part Type | Preassembled power cordset |
| Accessory / separate part category | Connection accessories |
| Product compatibility | Servo motor BMH, 1 2.8 in (70 mm)), Servo motor BMH, 2 2.8 in (70 mm)), Servo motor BMH, 3 2.8 in (70 mm)), Servo motor BMH, 1 3.9 in (100 mm)), Servo motor BMH, 2 3.9 in (100 mm)), Servo motor BMH, 3 3.9 in (100 mm)), Servo motor BMH, 1 5.5 in (140 mm)), Servo motor BSH, 1 2.2 in (55 mm)), Servo motor BSH, 2 2.2 in (55 mm)), Servo motor BSH, 3 2.2 in (55 mm)), Servo motor BSH, 1 2.8 in (70 mm)), Servo motor BSH, 2 2.8 in (70 mm)), Servo motor BSH, 3 2.8 in (70 mm)), Servo motor BSH, 1 3.9 in (100 mm)), Servo motor BSH, 2 3.9 in (100 mm)), Servo motor BSH, 3 3.9 in (100 mm)), Servo motor BSH, 1 5.5 in (140 mm)) |
| Accessory / separate part destination | Between servo motor and servo drive |
| Range Compatibility | Lexium 32, Lexium 05, Lexium 15 |
| Cable length | 32.8 ft (10 m) |
| Cable composition | 4 x 1.5 mm² + 2 x 1 mm² |
Complementary 2
| Electrical connection | Connector - industrial M23 servo motor side, Free end servo drive side |
|---|---|
| Net Weight | 5.05 lb(US) (2.29 kg) |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 23 specifications ↓ Show less ↑12 more values in Identification, Logistics.
Identification 7
| Part number | VW3M5101R100 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119207317 |
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 2.29 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for VW3M5101R100
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the VW3M5101R100
What is the HS code of VW3M5101R100 for customs?
The tariff (HS) code on file for VW3M5101R100 is 854442.
What is the EAN of VW3M5101R100?
The EAN (GTIN) of VW3M5101R100 is 3389119207317.
Where does VW3M5101R100 ship from, and how fast?
VW3M5101R100 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
