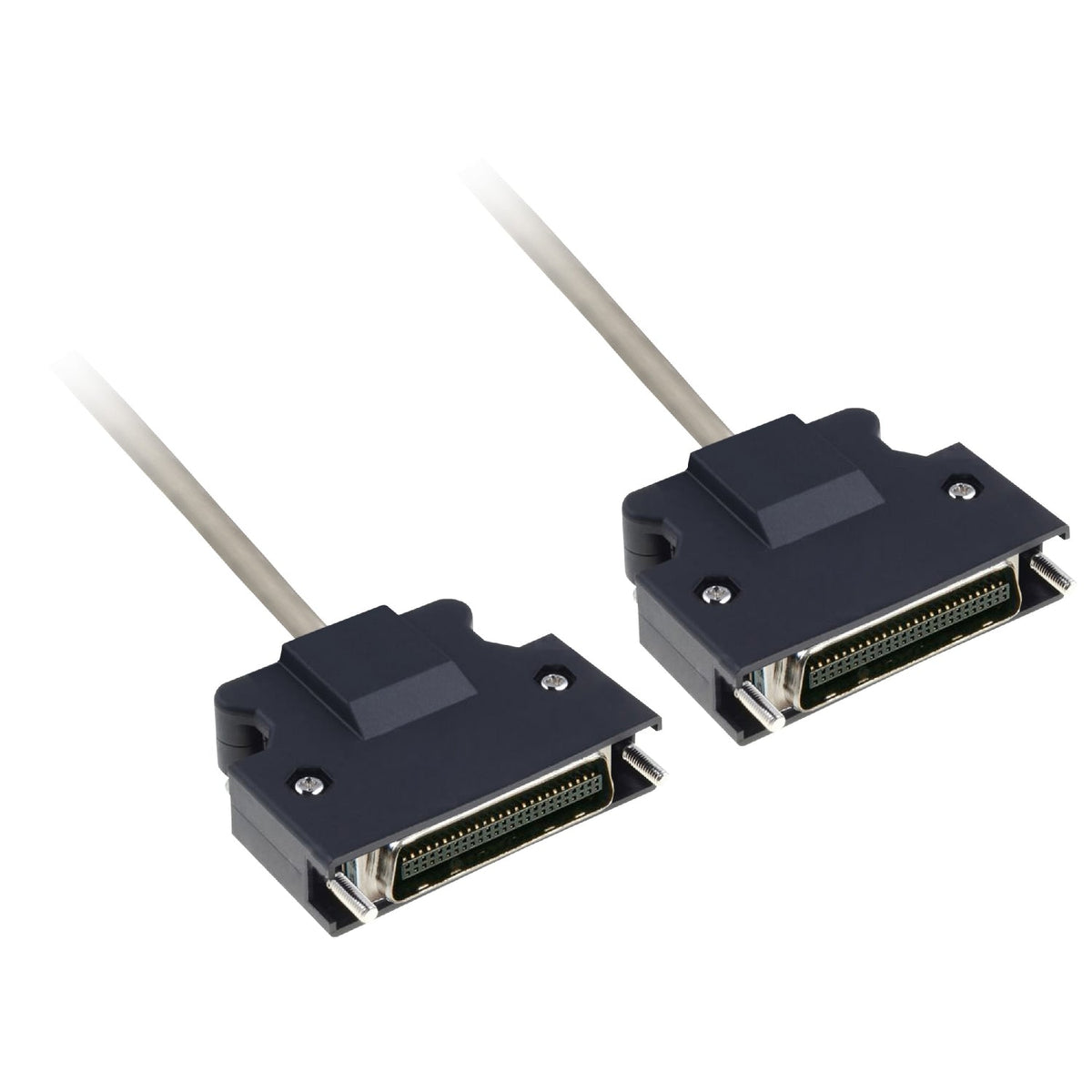

Schneider Electric VW3M4A11 Easy Lexium 16 CN1 SCSI-26 I/O Connector Kit Servo Drive Accessory

% $-27.33
Schneider Electric VW3M4A11 Easy Lexium 16 CN1 SCSI-26 Connector Kit
Schneider Electric VW3M4A11 Easy Lexium 16 CN1 SCSI-26 Connector Kit

Schneider Electric VW3M4A11 Easy Lexium 16 CN1 SCSI-26 I/O Connector Kit Servo Drive Accessory

Brand: Schneider Electric
Reference No: VW3M4A11
Catalog No: VW3M4A11
Series: Easy Lexium 16
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$27.33

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3M4A11 is a CN1 SCSI-26 connector kit for the Easy Lexium 16 range, used to build a control cordset for an LXM16D servo drive. The kit includes an SCSI-26 connector, a shielded chassis, a connector housing and the mounting screws needed to terminate the drive's CN1 control port.

Technical Specifications

Reference VW3M4A11
Brand Schneider Electric
Range of Product Easy Lexium 16
Product or Component Type Connector kit
Accessory / Separate Part Category Spare part
Device Application For creating control cordsets
Kit Composition 1 SCSI-26 connector; 1 shielded chassis; 1 connector housing; 2 port screws; 2 housing screws
Product Compatibility Motion servo drive LXM16D, 0.1-1.5 kW, 200...230 V single phase
Number of Units in Package 1 1
Number of Units in Package 2 50

Selection Notes

The VW3M4A11 is the CN1 control-connector kit for the LXM16D servo drive family covered by Easy Lexium 16 (0.1 kW to 1.5 kW, 200...230 V single phase) - the same kit fits every power rating in that range, since the CN1 connector pinout does not change with drive size. Use it to field-terminate a custom control cordset rather than ordering a pre-made cable; the matching power connector is the VW3M4A21 CNP kit and the encoder side is the VW3M4A31 CN3 kit.

Applications

Used when building a custom control cordset for an LXM16D servo drive in place of a factory pre-made cable.

Technical Details

Short Description
CN1 SCSI-26 connector kit for Easy Lexium 16 LXM16D servo drives, control cordset kit.
Catalog No
VW3M4A11
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LXM16D
Tariff Code
853690
