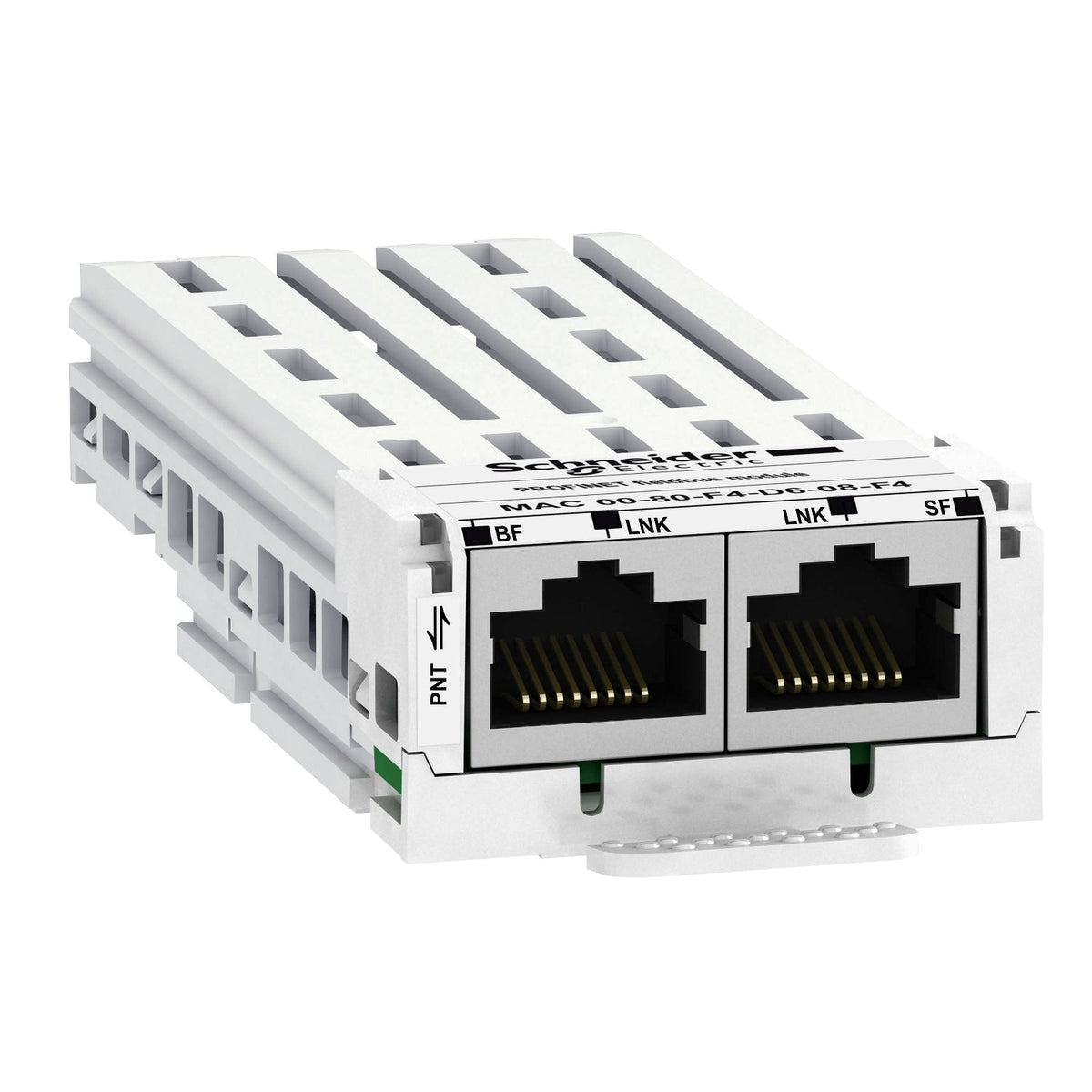

Schneider Electric VW3M3308 Lexium 32 PROFINET Fieldbus Module Servo Drive Accessory

The Schneider Electric VW3M3308 is a PROFINET fieldbus module for the Lexium 32 servo drive range, giving the Lexium 32M drive a PROFINET RT communication port. It connects through two RJ45 ports for daisy-chain wiring, running at 10 Mbit/s or 100 Mbit/s and addressing up to 256 nodes, with four LEDs reporting communication status at the drive.

Technical Specifications

Selection Notes

The VW3M3308 fits the PROFINET communication slot on Lexium 32M drives, adding a PROFINET RT network port where the base drive only offers its native fieldbus-free interface. The two RJ45 ports allow line-topology daisy-chaining between adjacent drives on the same PROFINET segment, and the four-LED display gives local link and status diagnostics without opening commissioning software.

Applications

Used to add PROFINET connectivity to Lexium 32M servo drives in machines that standardize on a PROFINET RT backbone for motion and I/O, such as packaging and material-handling cells coordinated from a PROFINET PLC.
