Part number
TR80D3R8004TPE
$2,926.58 On request Dispatch — · From TürkiyeGet a Quote
TransferPacT

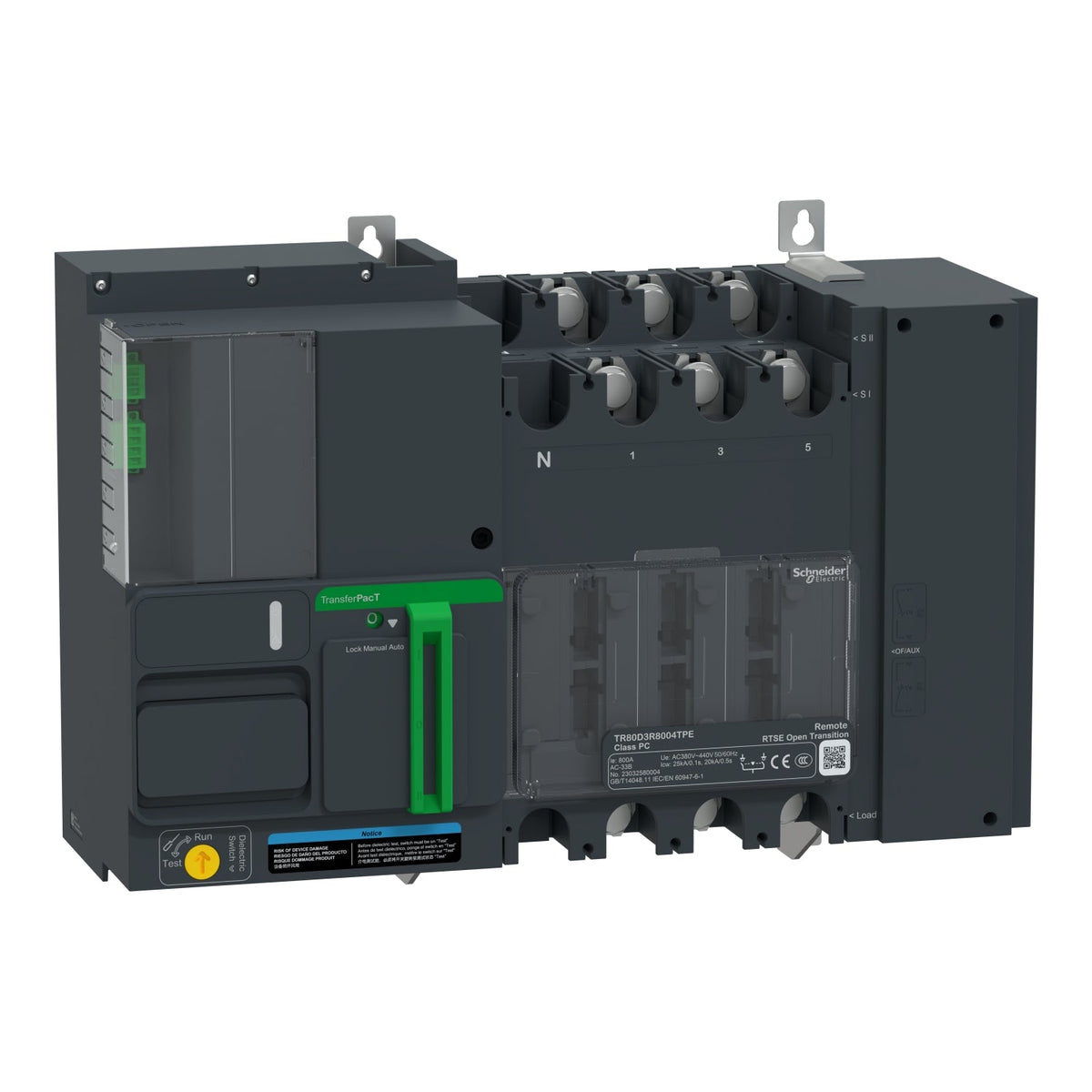

Schneider Electric TR80D3R8004TPE TransferPacT Remotely Operated 3P 800 A 400 V Automatic Transfer Switch

Schneider Electric TR80D3R8004TPE TransferPacT 800 A 400 V 3P remote ATS, 800 A frame.

Rated current
800 A
Rated operational voltage
400 V AC
Display
Remote LCD display
Description

About the TR80D3R8004TPE

The Schneider Electric TR80D3R8004TPE is a 3-pole, 800 A TransferPacT automatic transfer switch built on the 800 A frame, rated for remote (motorised) operation at 400 V AC, 50/60 Hz. Driven by an external controller rather than a built-in display, it switches the load between two power sources, carrying a 40 kA making capacity and a 20 kA/0.5 s short-time withstand current for coordination with upstream protection.

Certifications & Standards

  • CE
  • CB
  • CCC
  • IEC 60947-6-1

Selection Notes

Because the TR80D3R8004TPE is the remote-operated (TR) version, it has no built-in TPC controller: the transfer logic and I/O live in an external controller, so it suits installations that already standardise on one controller platform across several switches. The front panel carries a rotary display module for local control and setting via a rotary/dip switch, so commissioning does not depend on the remote controller being present. The 3P version switches the three phase conductors, so it is the lower-cost choice for 3-wire distribution. The 800 A rating on the 800 A frame suits life-safety loads such as fire-fighting equipment, smoke extract fans, sprinkler pumps and emergency lighting, where the switch must carry the full load current continuously after a transfer. The 20 kA/0.5 s short-time withstand current sets how long it can carry a downstream fault before the upstream breaker must clear it, which is the figure to check against the protection device's tripping curve.

Specification

Full specification

58 values · Last verified 30 Oct 2026

Main 12

Range of product TransferPacT
Product or component type Remote transfer switch
Device application Change source of supply
Poles description 3P
Network type AC
Network frequency 50/60 Hz
Downside connection Screwed
Mounting mode Fixed
Upside connection Screwed
Contact position indicator Yes
[Icm] rated short-circuit making capacity 40 kA switch-disconnector alone 400 V AC at 50 Hz, 330 kA with upstream protection circuit breaker 400 V AC at 50 Hz
Suitability for isolation Yes

Complementary 23

Transfer switch class PC
Number of contact position 3
Signal contacts composition 1 NO + 2 NC, 1 NC + 2 NO, 2 NO
Utilization category AC-33B
[Ue] rated operational voltage 400 V AC 50/60 Hz
Control type Remote control
Operating mode Remote, Manual
Display type Alarm indicator, Remote LCD display
Mounting support Plate
Locking options description Padlock in OFF position, Padlock in SI / SII position
Rated duty Uninterrupted
[Ui] rated insulation voltage Switch: 1000 V, Controller: 500 V
[Uimp] rated impulse withstand voltage Switch: 12 kV, Controller: 6 kV
[Ie] rated operational current 800 A
Mechanical interlocking With mechanical interlocking
Mechanical durability 10000 cycles
Connection pitch 45 mm
[Icw] rated short-time withstand current 20 kA during 0.5 s, 25 kA during 0.1 s
Height 341 mm
Width 467 mm
Depth 186 mm
Net weight 22.4 kg
[Ith] conventional free air thermal current 800 A at 60 °C

Environment 6

Standards IEC 60947-6-1
Product certifications CCC, CE, CB
IP degree of protection Front face: IP40 auto mode, Inside the enclosure: IP20 manual mode
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…85 °C
Pollution degree 3
Show all 58 specifications ↓ Show less ↑17 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number TR80D3R8004TPE
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 80 cm
Package 1 Width 60 cm
Package 1 Length 73.5 cm
Package 1 Weight 36.3 kg
Shipping weight 22.4 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for TR80D3R8004TPE

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CCC
  • IEC 60947-6-1
Quick answers

Questions about the TR80D3R8004TPE

What is the rated current of TR80D3R8004TPE?

The rated current of TR80D3R8004TPE is 800 A.

Which supply voltage is TR80D3R8004TPE rated for?

The rated operational voltage of TR80D3R8004TPE is 400 V AC.

What is the HS code of TR80D3R8004TPE for customs?

The tariff (HS) code on file for TR80D3R8004TPE is 853650.

Where does TR80D3R8004TPE ship from, and how fast?

TR80D3R8004TPE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
