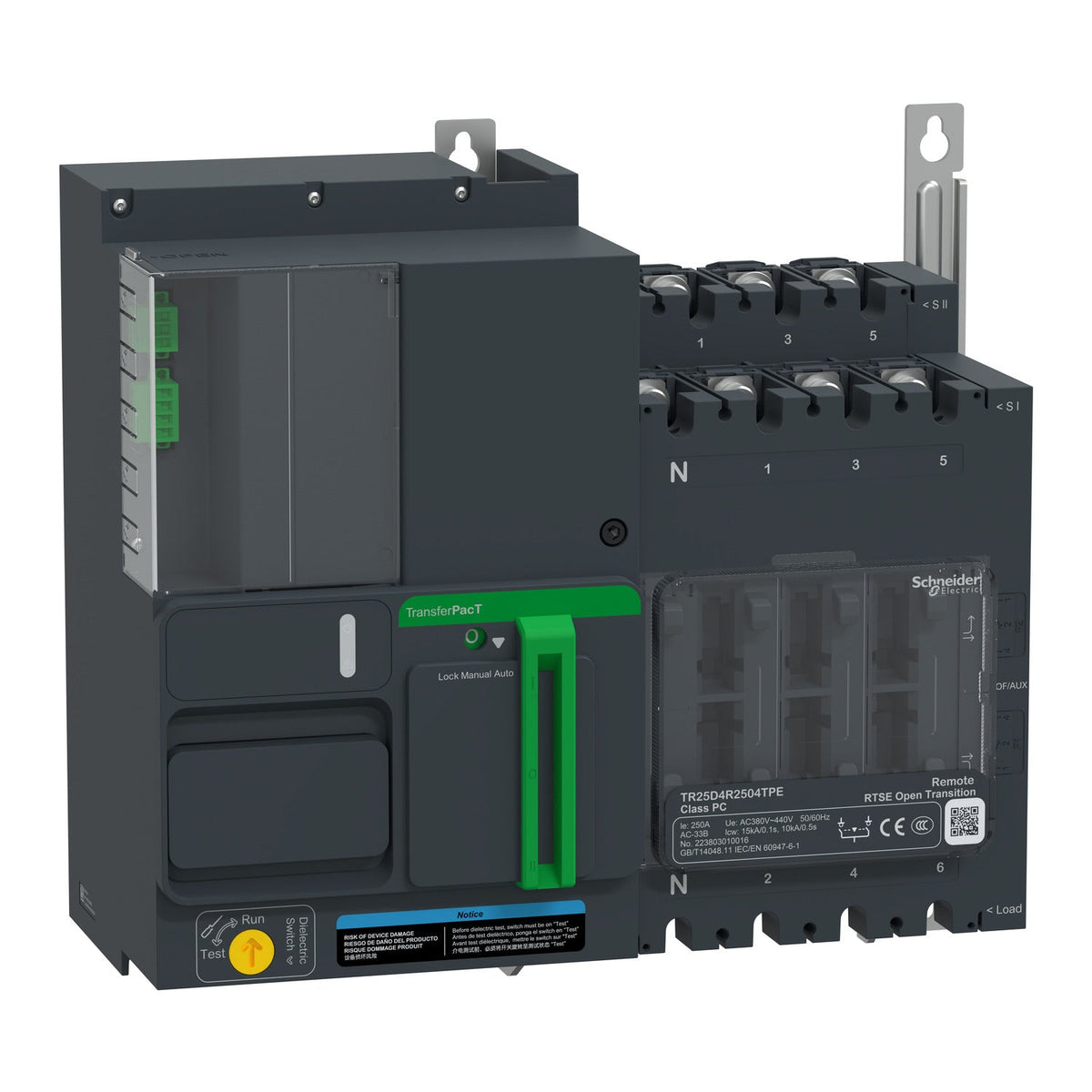

Schneider Electric TR25D4R2504TPE TransferPacT Remotely Operated 4P 250 A 400 V Automatic Transfer Switch

The Schneider Electric TR25D4R2504TPE is a 4-pole, 250 A TransferPacT automatic transfer switch built on the 250 A frame, rated for remote (motorised) operation at 400 V AC, 50/60 Hz. Driven by an external controller rather than a built-in display, it switches the load between two power sources, carrying a 30 kA making capacity and a 10 kA/0.5 s short-time withstand current for coordination with upstream protection.

Technical Specifications

Certifications & Standards

• CE
• CB
• CCC
• IEC 60947-6-1

Selection Notes

Because the TR25D4R2504TPE is the remote-operated (TR) version, it has no built-in TPC controller: the transfer logic and I/O live in an external controller, so it suits installations that already standardise on one controller platform across several switches. The 4P version switches all three phases plus neutral, so it is the pick for installations that require neutral switching, such as TN-S systems with separate PE and N. On the 250 A frame, the 250 A rating covers industrial and commercial buildings, data centres, healthcare facilities and transportation sites that need a sized-for-load source-change device rather than a built-in controller. The 10 kA/0.5 s short-time withstand current sets how long it can carry a downstream fault before the upstream breaker must clear it, which is the figure to check against the protection device's tripping curve.
