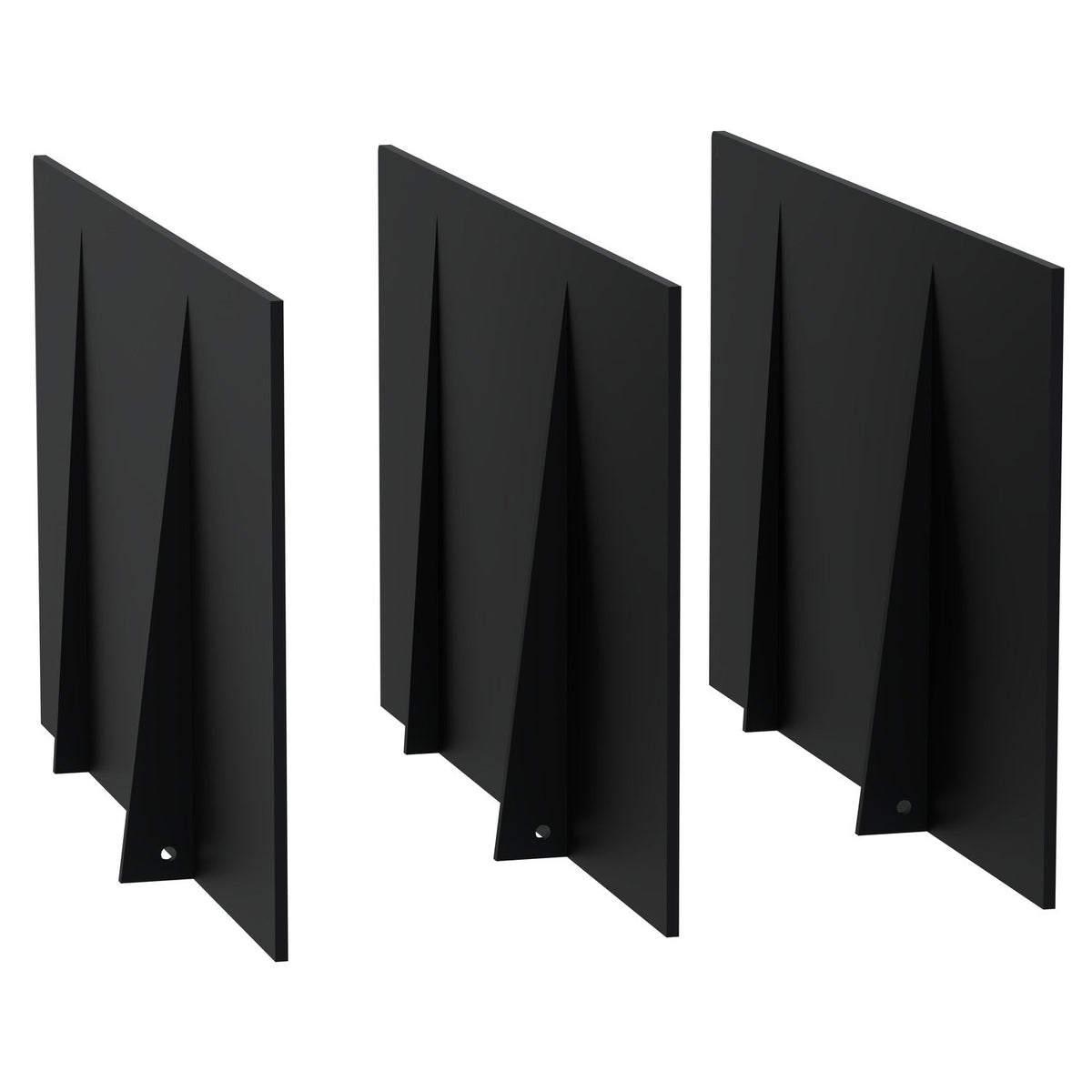

The Schneider Electric TPSISO70 is an interphase barrier insulation accessory for TransferPacT automatic transfer switches on the 800 A to 1600 A frames (800...1600 A range). Supplied as a set of 3 pieces with a 115 mm connection pitch, it separates adjacent phase connections to increase clearance between live conductors.
Match the TPSISO70 to the switch frame it is listed for (800 A to 1600 A); insulation accessories in the TransferPacT range are sized per frame and are not interchangeable across frame sizes. It is fitted during panel build-out wherever the installation needs extra clearance between live terminals beyond the switch's own enclosure.
| Range of product | TransferPacT |
|---|---|
| Range | TransferPacT |
| Product or component type | Interphase barrier |
| Accessory / separate part category | Insulation accessory |
| Poles description | 3P, 4P |
| Quantity per set | 3 |
| [In] rated current | 800…1600 A |
| Mounting mode | Fixed |
|---|---|
| Connection pitch | 115 mm |
| Warranty (in months) | 18 |
|---|
| Part number | TPSISO70 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 15.200 cm |
| Package 1 Length | 27.000 cm |
| Package 1 Weight | 614.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.906 kg |
| Shipping weight | 0.614 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for TPSISO70 is 853890.
TPSISO70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
