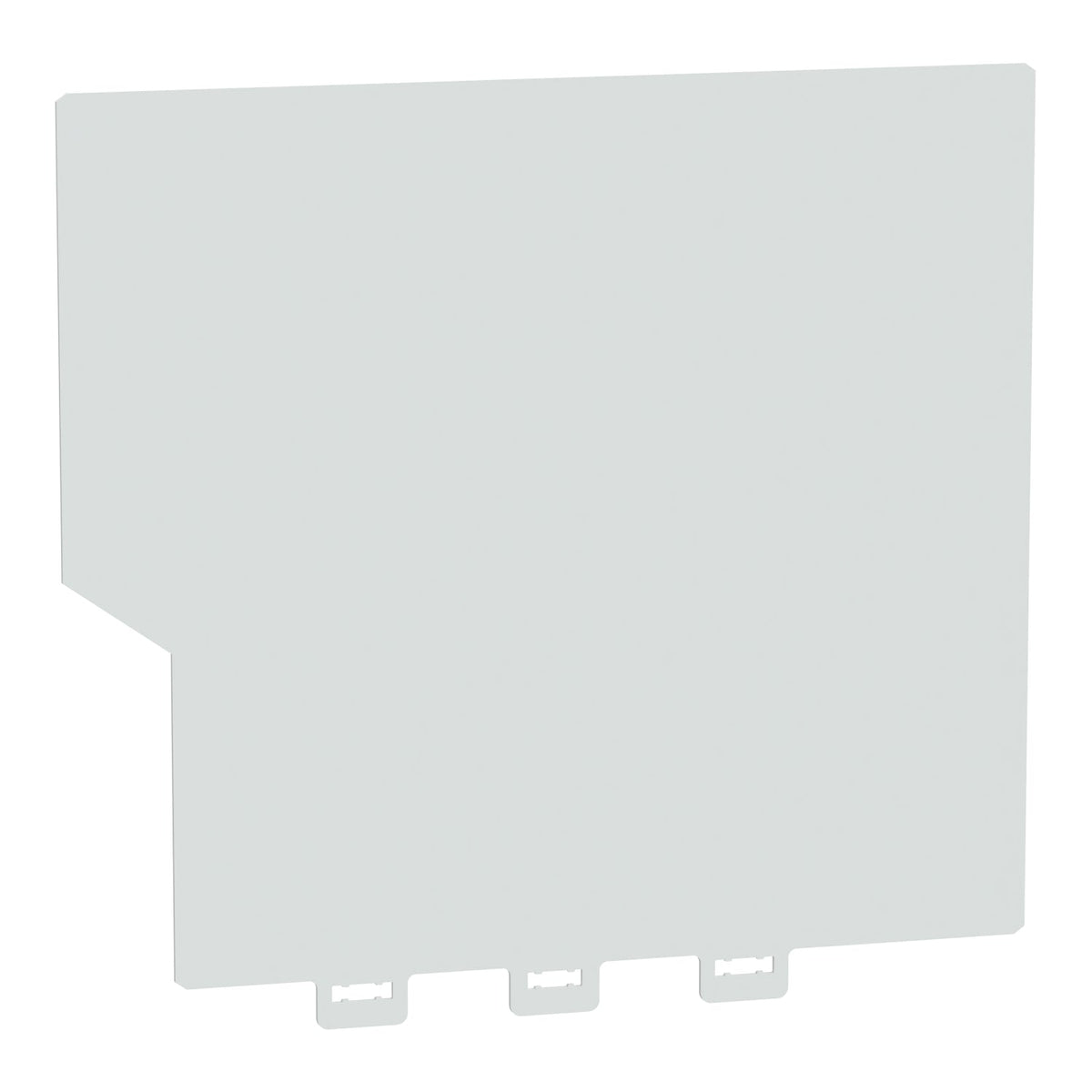

The Schneider Electric TPSISO66 is an insulation screen accessory for TransferPacT automatic transfer switches on the 250 A frame (100...250 A range). Supplied as a single piece, it fits on the rear side of source II only, shielding that connection from accidental contact.
Match the TPSISO66 to the switch frame it is listed for (250 A); insulation accessories in the TransferPacT range are sized per frame and are not interchangeable across frame sizes. It is fitted during panel build-out wherever the installation needs extra clearance between live terminals beyond the switch's own enclosure. Because it only covers source II, check which source connects where on the installed switch before ordering, rather than assuming it suits either side.
| Range of product | TransferPacT |
|---|---|
| Range | TransferPacT |
| Product or component type | Insulation screen |
| Accessory / separate part category | Insulation accessory |
| Poles description | 3P, 4P |
| Quantity per set | 1 |
| [In] rated current | 100…250 A |
| Warranty (in months) | 18 |
|---|
| Part number | TPSISO66 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.200 cm |
| Package 1 Width | 16.700 cm |
| Package 1 Length | 17.500 cm |
| Package 1 Weight | 82.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 1.126 kg |
| Shipping weight | 0.082 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for TPSISO66 is 853890.
TPSISO66 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
