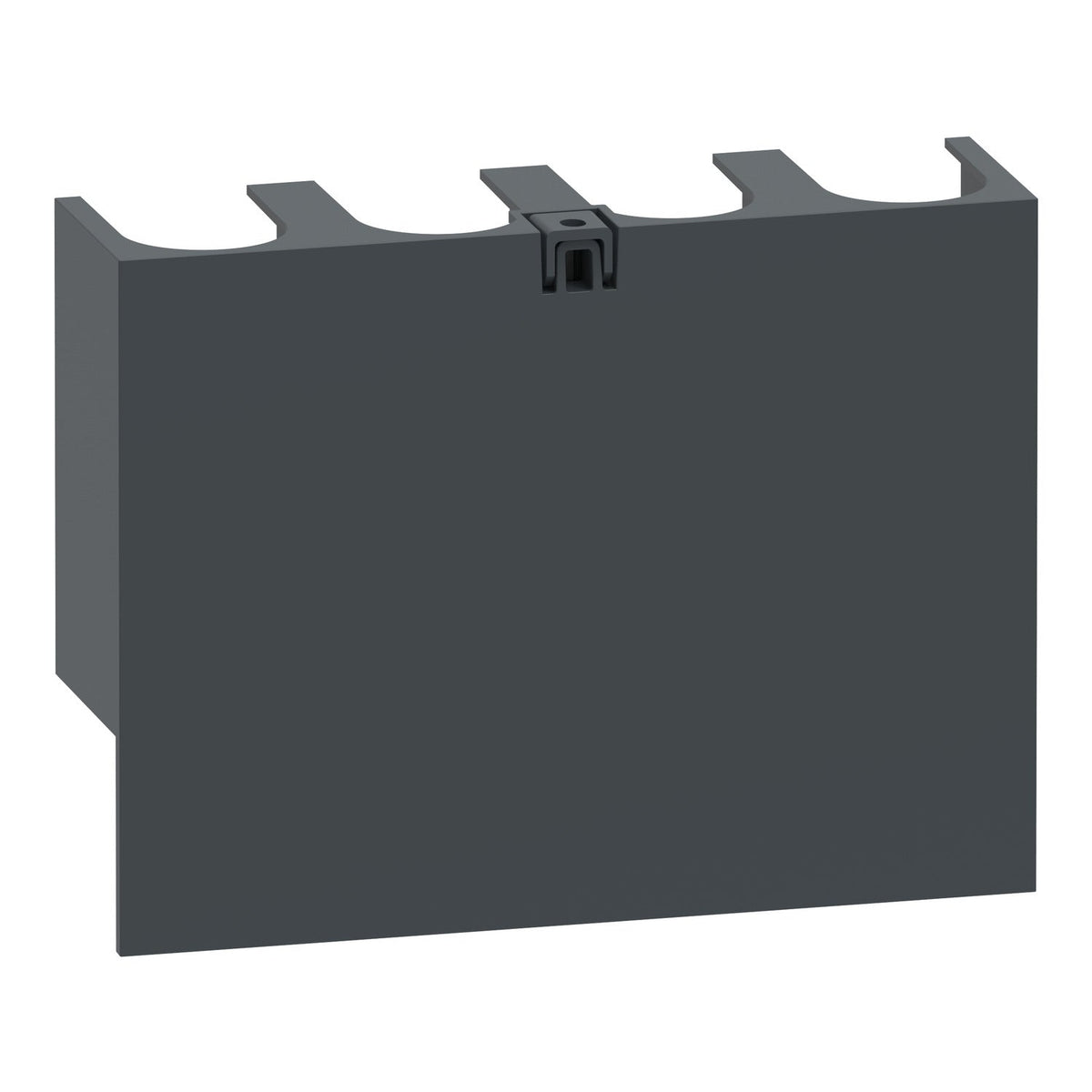

The Schneider Electric TPSISO31 is a terminal shield insulation accessory for TransferPacT automatic transfer switches on the 160 A frame (TA16 switch size). Supplied as a set of 3 pieces with a 30 mm connection pitch, it covers the switch terminals to protect against accidental contact with live parts.
Match the TPSISO31 to the switch frame it is listed for (160 A); insulation accessories in the TransferPacT range are sized per frame and are not interchangeable across frame sizes. It is fitted during panel build-out wherever the installation needs extra clearance between live terminals beyond the switch's own enclosure.
| Range of product | TransferPacT |
|---|---|
| Product or component type | Terminal shield |
| Accessory / separate part category | Insulation accessory |
| Poles description | 3P, 4P |
| Quantity per set | 3 pieces |
| Mounting mode | Fixed |
|---|---|
| Connection pitch | 30 mm |
| Accessory material | Plastic |
| Height | 89.5 mm |
| Width | 118 mm |
| Depth | 32 mm |
| Warranty (in months) | 18 |
|---|
| Part number | TPSISO31 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.2 cm |
| Package 1 Width | 9.8 cm |
| Package 1 Length | 13.0 cm |
| Package 1 Weight | 1.162 kg |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 14 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 16.57 kg |
| Shipping weight | 1.162 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for TPSISO31 is 853890.
TPSISO31 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
