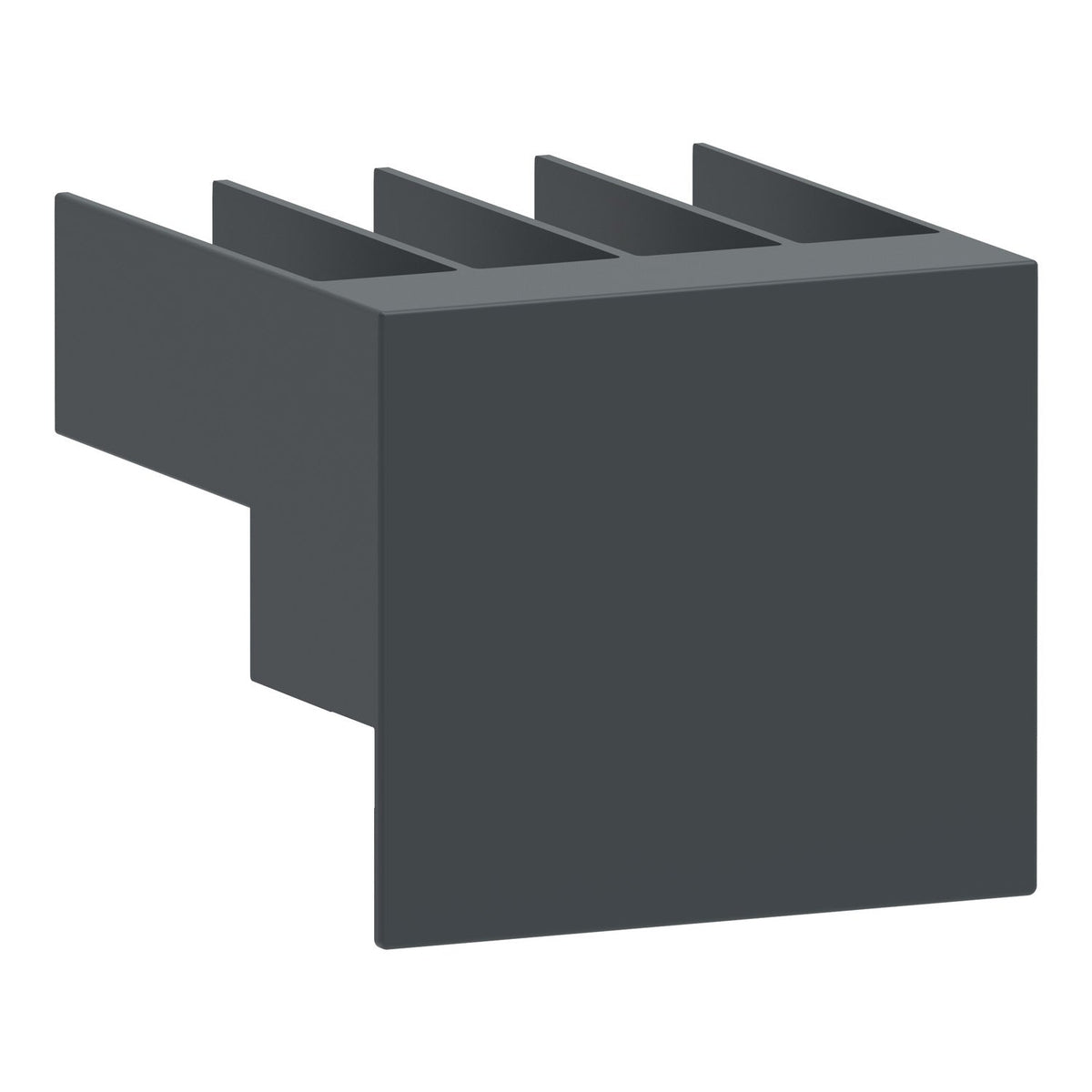

The Schneider Electric TPSISO30 is a terminal shield insulation accessory for TransferPacT automatic transfer switches on the 100 A frame (TA10 switch size). Supplied as a set of 2 pieces, it fits over the connection terminals with an 18 mm pitch to guard against accidental contact with live parts.
Match the TPSISO30 to the switch frame it is listed for (100 A); insulation accessories in the TransferPacT range are sized per frame and are not interchangeable across frame sizes. It is fitted during panel build-out wherever the installation needs extra clearance between live terminals beyond the switch's own enclosure.
| Range of product | TransferPacT |
|---|---|
| Product or component type | Terminal shield |
| Accessory / separate part category | Insulation accessory |
| Poles description | 2P or 3P or 4P |
| Quantity per set | 2 pieces |
| Mounting mode | Fixed |
|---|---|
| Connection pitch | 18 mm |
| Accessory material | Plastic |
| Height | 65 mm |
| Width | 73 mm |
| Depth | 79 mm |
| Warranty (in months) | 18 |
|---|
| Part number | TPSISO30 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 8.8 cm |
| Package 1 Length | 9.2 cm |
| Package 1 Weight | 100.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 1.898 kg |
| Shipping weight | 0.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for TPSISO30 is 853890.
TPSISO30 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
