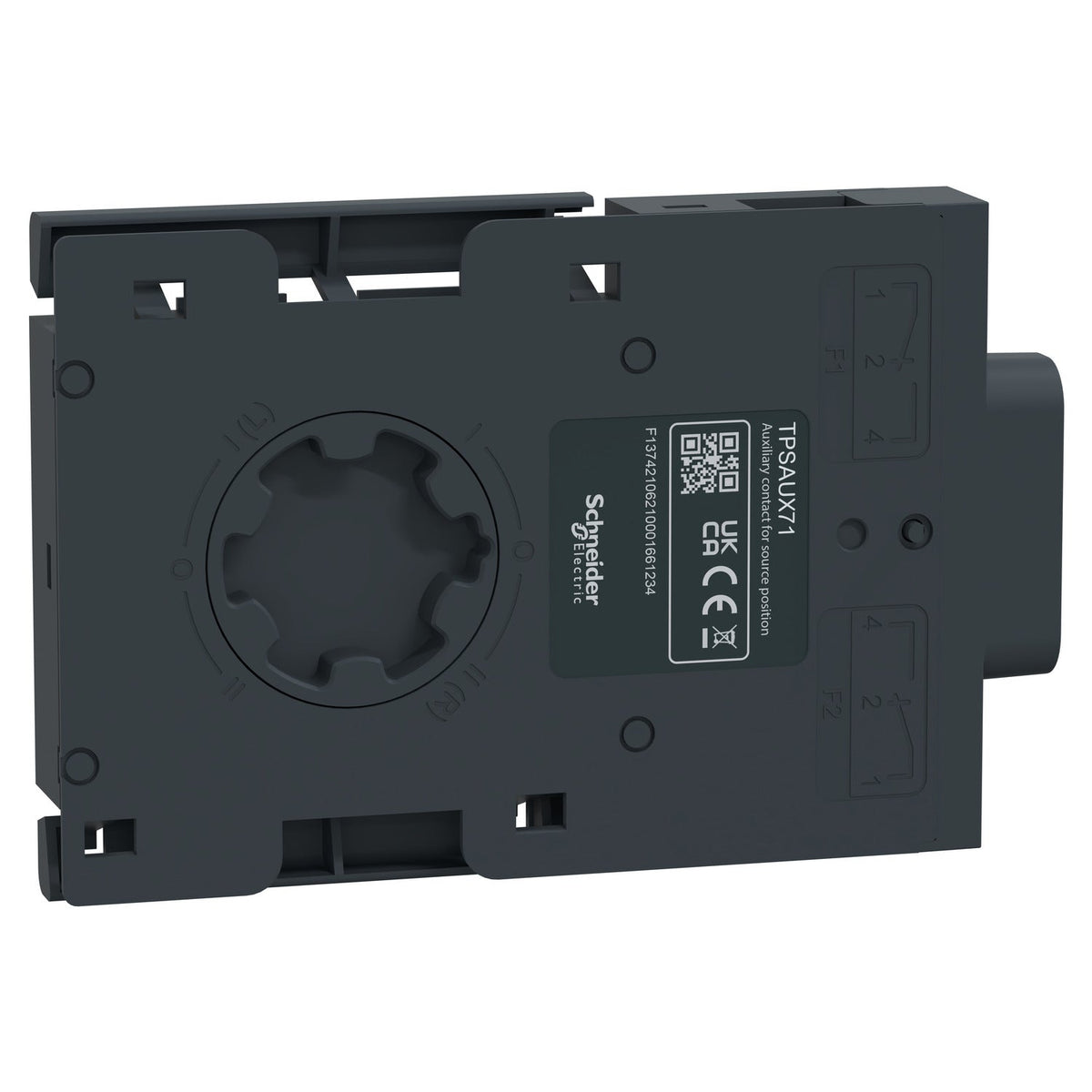

Schneider Electric TPSAUX71 TransferPacT Auxiliary Contact Frame 800-1600 A Transfer Switch Accessory

% $-64.93
Schneider Electric TPSAUX71 TransferPacT Transfer Switch Accessory
Schneider Electric TPSAUX71 TransferPacT Transfer Switch Accessory

Schneider Electric TPSAUX71 TransferPacT Auxiliary Contact Frame 800-1600 A Transfer Switch Accessory

Brand: Schneider Electric
Reference No: TPSAUX71
Catalog No: TPSAUX71
Series: TransferPacT
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$64.93

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The TPSAUX71 is a Schneider Electric TransferPacT auxiliary contact module for the frame 800-1600 A TA1A switch, clipping on at a side angle and signalling source I or source II position through a 2 NO + 2 NC contact set wired on spring terminals, rated for a 100 mA minimum load at 24 V DC.

Technical Specifications

Reference TPSAUX71
Brand Schneider Electric
Range TransferPacT
Product type Auxiliary contact module
Device application Signalling
Auxiliary contact composition 2 NO + 2 NC
Signalling function Switch position indication (source I and source II)
Auxiliary connection terminal Spring terminal, 0.5...1.5 mm squared (20-16 AWG)
Mounting mode Clip-on
[Ith] conventional free air thermal current 5 A
Minimum load 100 mA at 24 V DC
Tightening torque 0.6 N.m +/- 0.1 N.m
Product compatibility TA1A

Selection Notes

The TPSAUX71 is the TA1A-frame counterpart of the TPSAUX43: same signalling function and contact rating, sized and mounted for the larger 800-1600 A switch body instead of the 250/630 A frames.

Technical Details

Short Description
The TPSAUX71 is a Schneider Electric TransferPacT auxiliary contact module for the frame 800-1600 A TA1A switch, clipping on at a side angle and signa
Catalog No
TPSAUX71
Delivery Date (Days)
30 days
Model Number
TransferPacT
Tariff Code
853890
