Schneider Electric TPSAUX44 TransferPacT Auxiliary Contact OFF Frame 250-630 A Transfer Switch Accessory

% $-28.66

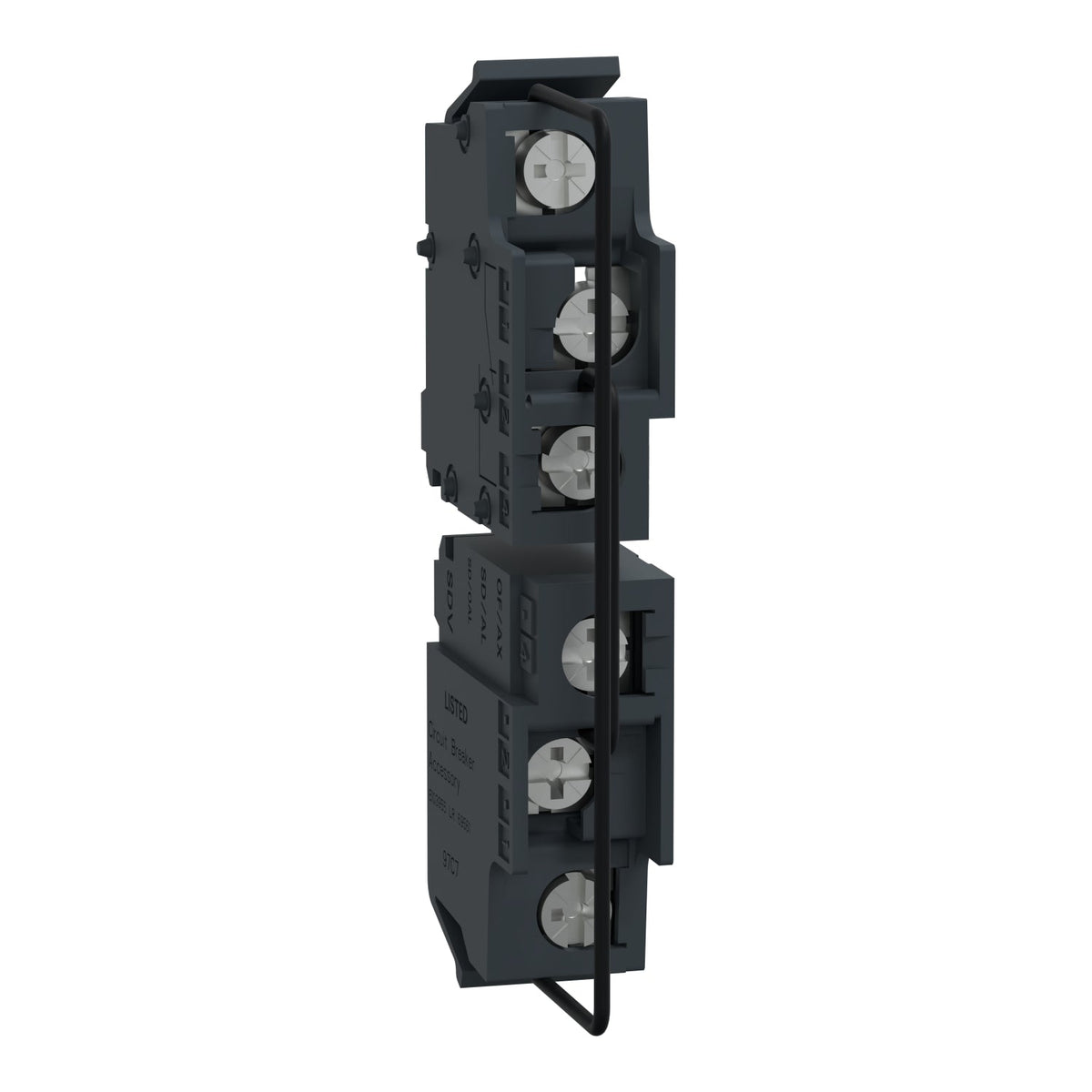

Schneider Electric TPSAUX44 TransferPacT Transfer Switch Accessory
Schneider Electric TPSAUX44 TransferPacT Transfer Switch Accessory

Schneider Electric TPSAUX44 TransferPacT Auxiliary Contact OFF Frame 250-630 A Transfer Switch Accessory

Brand: Schneider Electric
Reference No: TPSAUX44
Catalog No: TPSAUX44
Series: TransferPacT
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$28.66

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The TPSAUX44 is a Schneider Electric TransferPacT auxiliary contact module that clips inside the front cover of a frame 250 A or frame 630 A switch and signals the off position through a 2 NO + 2 NC contact set, wired on spring terminals and rated for a 100 mA minimum load at 24 V DC.

Technical Specifications

Reference TPSAUX44
Brand Schneider Electric
Range TransferPacT
Product type Auxiliary contact module
Device application Signalling
Auxiliary contact composition 2 NO + 2 NC
Signalling function Switch position indication (off position)
Auxiliary connection terminal Spring terminal, 0.5...1.5 mm squared (20-16 AWG)
Mounting mode Clip-on
Mounting position Inside the front cover
[Ith] conventional free air thermal current 5 A
Minimum load 100 mA at 24 V DC
Tightening torque 0.6 N.m +/- 0.1 N.m
IP degree of protection IP20
Product compatibility TA25, TR25, TA63, TR63

Selection Notes

Fit the TPSAUX44 where the off position needs its own hard-wired contact on a TA25/TR25 or TA63/TR63 frame; combine it with the TPSAUX43 when both source position and off position must be signalled.

Technical Details

Short Description
The TPSAUX44 is a Schneider Electric TransferPacT auxiliary contact module that clips inside the front cover of a frame 250 A or frame 630 A switch an
Catalog No
TPSAUX44
Delivery Date (Days)
30 days
Model Number
TransferPacT
Tariff Code
853890
