Schneider Electric TPSAUX43 TransferPacT Auxiliary Contact Frame 250-630 A Transfer Switch Accessory

% $-28.66

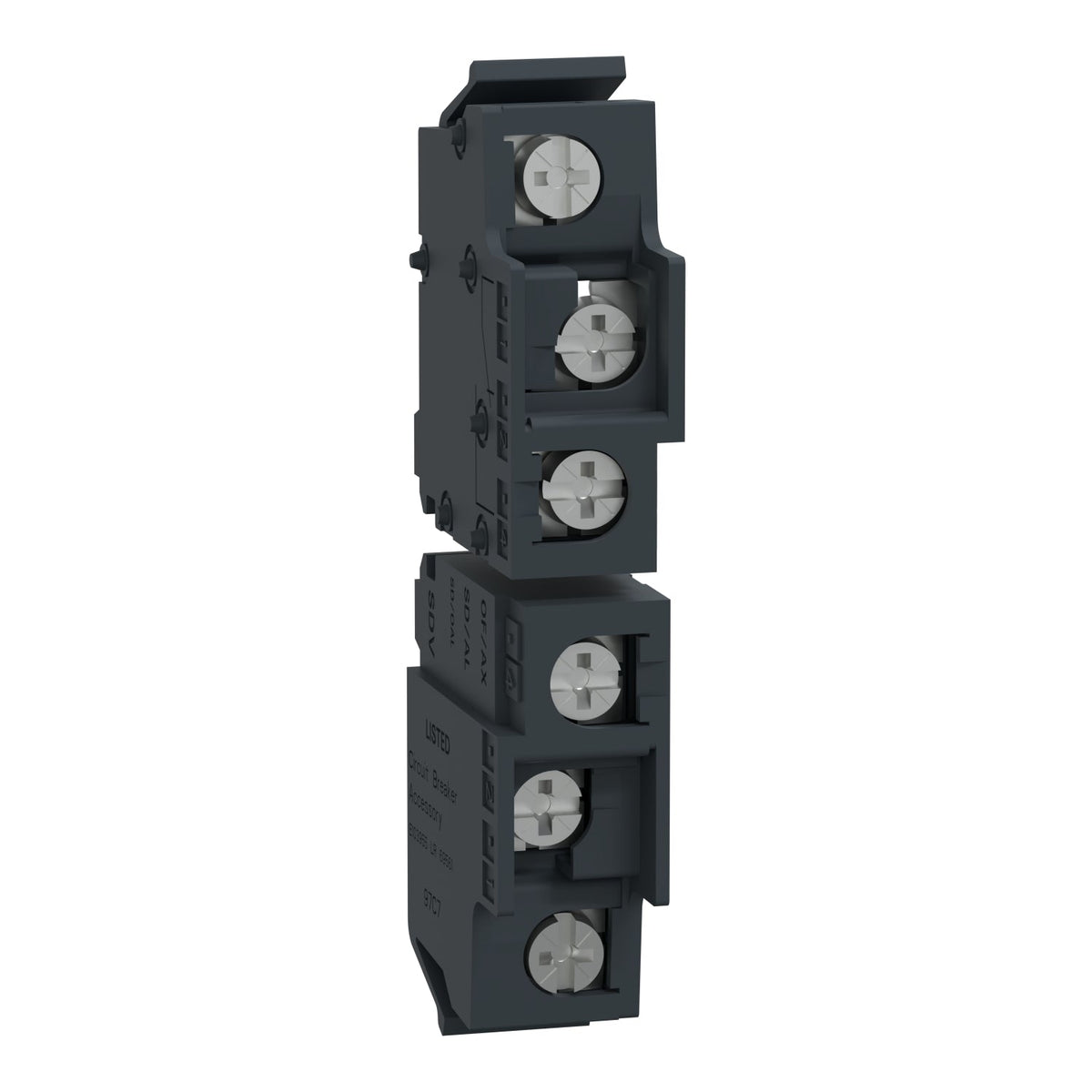

Schneider Electric TPSAUX43 TransferPacT Transfer Switch Accessory
Schneider Electric TPSAUX43 TransferPacT Transfer Switch Accessory

Schneider Electric TPSAUX43 TransferPacT Auxiliary Contact Frame 250-630 A Transfer Switch Accessory

Brand: Schneider Electric
Reference No: TPSAUX43
Catalog No: TPSAUX43
Series: TransferPacT
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$28.66

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The TPSAUX43 is a Schneider Electric TransferPacT auxiliary contact module that clips inside the front cover of a frame 250 A or frame 630 A switch and signals source I or source II position through a 2 NO + 2 NC contact set, wired on spring terminals and rated for a 100 mA minimum load at 24 V DC.

Technical Specifications

Reference TPSAUX43
Brand Schneider Electric
Range TransferPacT
Product type Auxiliary contact module
Device application Signalling
Auxiliary contact composition 2 NO + 2 NC
Signalling function Switch position indication (source I and source II)
Auxiliary connection terminal Spring terminal, 0.5...1.5 mm squared (20-16 AWG)
Mounting mode Clip-on
Mounting position Inside the front cover
[Ith] conventional free air thermal current 5 A
Minimum load 100 mA at 24 V DC
Tightening torque 0.6 N.m +/- 0.1 N.m
IP degree of protection IP20
Product compatibility TA25, TR25, TA63, TR63

Selection Notes

The TPSAUX43 mounts inside the cover rather than beside the switch, so it fits the TA25/TR25 and TA63/TR63 frames without adding width to the installation; use the matching TPSAUX44 if the off position also needs a hard-wired contact.

Technical Details

Short Description
The TPSAUX43 is a Schneider Electric TransferPacT auxiliary contact module that clips inside the front cover of a frame 250 A or frame 630 A switch an
Catalog No
TPSAUX43
Delivery Date (Days)
30 days
Model Number
TransferPacT
Tariff Code
853890
