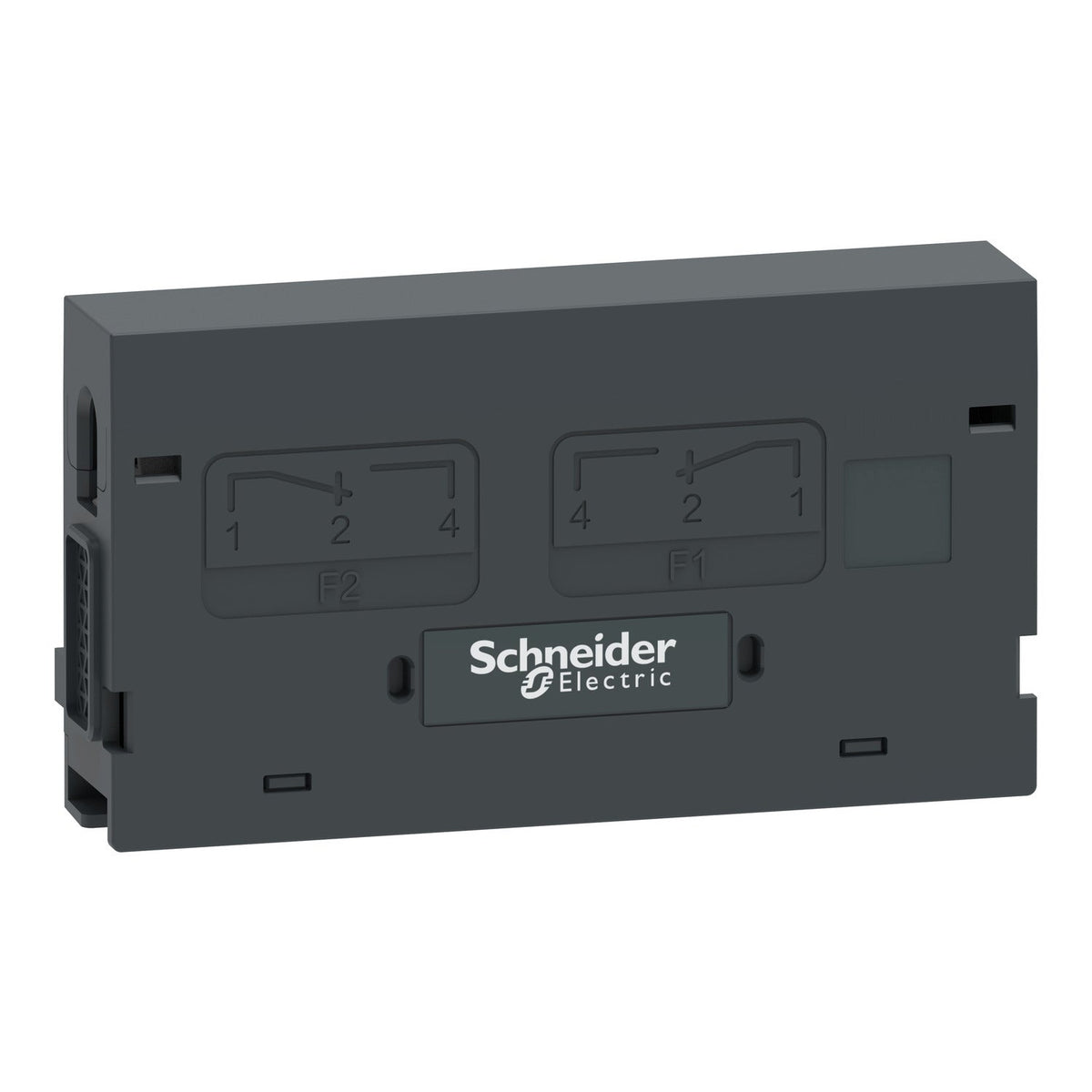

Schneider Electric TPSAUX32 TransferPacT Auxiliary Contact Source Position Transfer Switch Accessory

% $-37.20
Schneider Electric TPSAUX32 TransferPacT Transfer Switch Accessory
Schneider Electric TPSAUX32 TransferPacT Transfer Switch Accessory

Schneider Electric TPSAUX32 TransferPacT Auxiliary Contact Source Position Transfer Switch Accessory

Brand: Schneider Electric
Reference No: TPSAUX32
Catalog No: TPSAUX32
Series: TransferPacT
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$37.20

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The TPSAUX32 is a Schneider Electric TransferPacT auxiliary contact module that clips on beside the transfer switch and mirrors its mechanical position on source I or source II through a 2 NO + 2 NC contact set, rated 2 A at 250 V AC, wired with 0.75-2.5 mm squared cable on a PZ2 screwdriver terminal.

Technical Specifications

Reference TPSAUX32
Brand Schneider Electric
Range TransferPacT
Product type Auxiliary contact module
Device application Signalling
Auxiliary contact composition 2 NO + 2 NC
Signalling function Switch position indication (source I and source II)
Auxiliary connection terminal Screw clamp terminal
Mounting mode Clip-on
Mounting position Right-angled, mounted beside the switch
Tightening torque 0.6 N.m +/- 0.1 N.m
IP degree of protection IP20
Dimensions (W x H x D) 17.5 x 90 x 49.5 mm
Net weight 60 g

Selection Notes

Use the TPSAUX32 where a remote panel, PLC input or indicator lamp needs a hard-wired signal of which source the switch is actually sitting on, independent of the controller's own communication output; pair it with the TPSAUX33 if the off position also needs its own contact.
