Monitoring Relays for Generators and ATS Systems
How phase-sequence, voltage/frequency and temperature monitoring relays let an ATS safely transfer a load onto a standby generator and back.

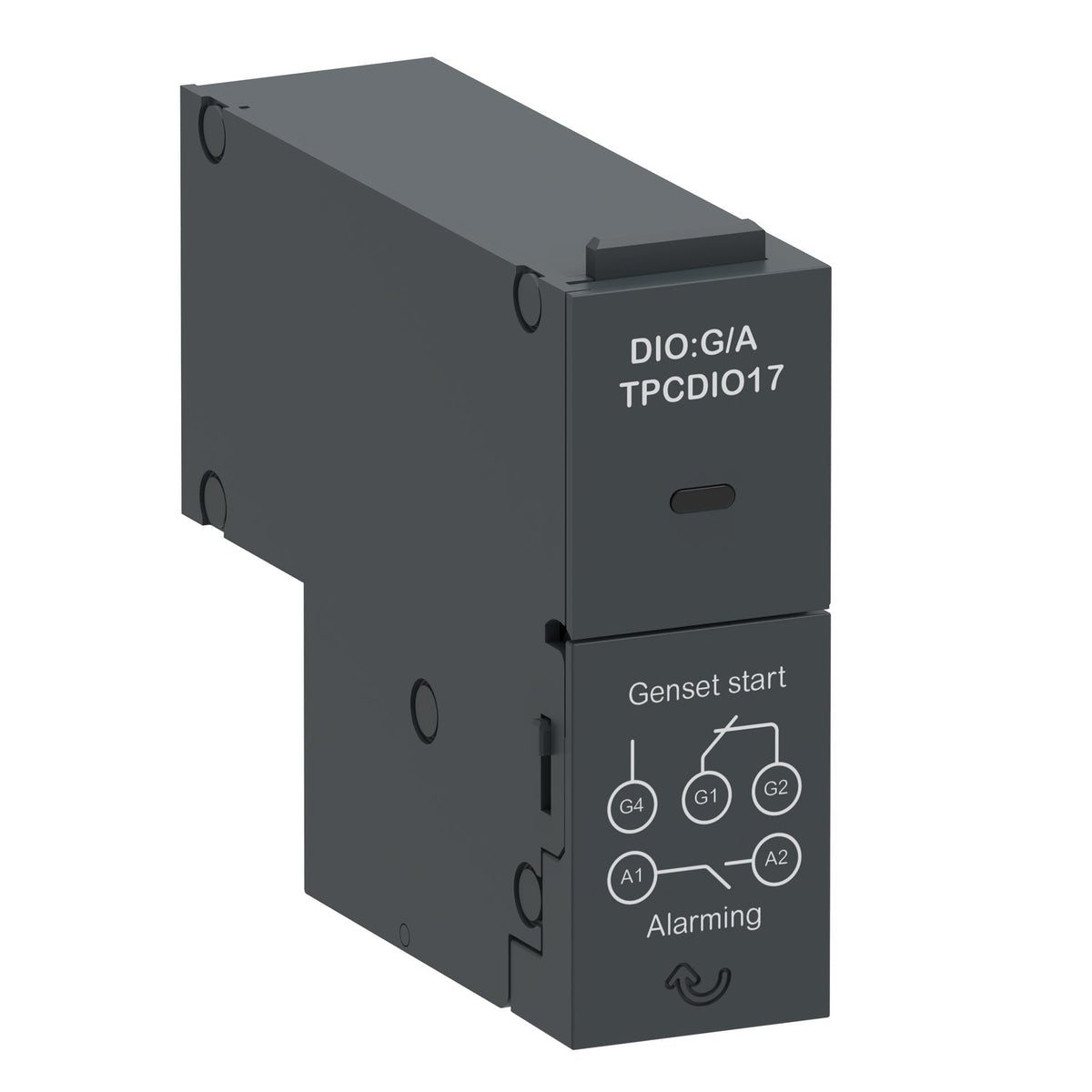

The TPCDIO17 is a Schneider Electric TransferPacT plug-in I/O module with a genset-start output and an alarm output, each rated 5 A at 250 V AC or 30 V DC. The start output includes a time-delay capacitor that prevents dry-cranking by holding the start signal until the controller calls for the generator, and runs it through the cool-down period after the normal source returns; the alarm output flags phase-rotation faults, transfer failures, a stuck micro-switch or an internal error.
Wire the genset-start output directly to the generator's remote-start terminals to avoid a separate start-delay relay, and route the alarm output to a remote annunciator or BMS point so a transfer failure or phase-rotation fault is flagged away from the panel.
| Range of product | TransferPacT |
|---|---|
| Product or component type | I/O module |
| Device application | Signalling |
| Auxiliary contact composition | 2 NO + 1 NC |
|---|---|
| Signalling function | Genset start output signal, Alarm |
| Auxiliary connection terminal | Screw clamp terminal 0.05…2.6 mm² |
| Mounting mode | Plug-in |
| Mounting position | Left-bottom |
| [Ui] rated insulation voltage | 300 V AC |
| Tightening torque | 0.6 N.m +/- 0.1 N.m |
| Height | 56.5 mm |
| Width | 20 mm |
| Depth | 69 mm |
| Accessory / separate part category | Signalling accessory |
| IP degree of protection | IP20 |
|---|---|
| Pollution degree | 3 |
| Part number | TPCDIO17 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.600 cm |
| Package 1 Width | 10.600 cm |
| Package 1 Length | 10.800 cm |
| Package 1 Weight | 110.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.500 kg |
| Shipping weight | 0.11 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for TPCDIO17 is 853890.
TPCDIO17 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
