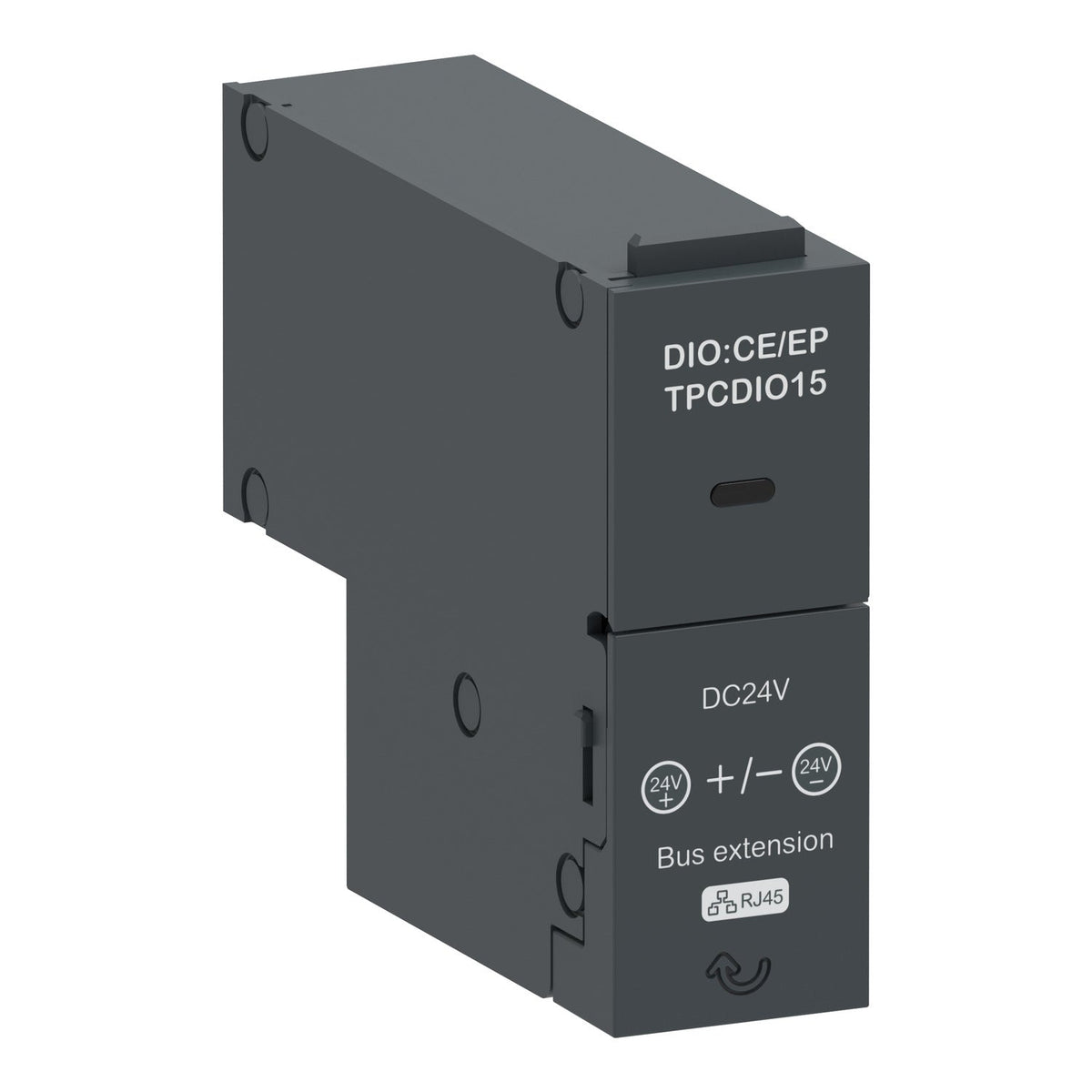

The TPCDIO15 is a Schneider Electric TransferPacT plug-in module that adds a CAN bus extension port (RJ45) for the TPCCIF04 external HMI and accepts an external 24 V DC auxiliary supply. The auxiliary supply keeps the controller and communication running if both sources are lost, during a generator start delay, or whenever continuous supervision matters more than switch power alone.
| Range of product | TransferPacT |
|---|---|
| Product or component type | I/O module |
| Device application | Signalling |
| Auxiliary contact composition | Without |
|---|---|
| Signalling function | CAN extension (connect to external HMI) |
| Auxiliary connection terminal | Screw clamp terminal 0.05…2.6 mm² |
| Mounting mode | Plug-in |
| Mounting position | Left-bottom |
| Maximum input current | 1 A 24 V DC +/- 20 % |
| [Ui] rated insulation voltage | 30 V DC |
| Tightening torque | 0.6 N.m +/- 0.1 N.m |
| Height | 56.5 mm |
| Width | 20 mm |
| Depth | 69 mm |
| Accessory / separate part category | Signalling accessory |
| IP degree of protection | IP20 |
|---|---|
| Pollution degree | 3 |
| Part number | TPCDIO15 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 5.700 cm |
| Package 1 Length | 6.900 cm |
| Package 1 Weight | 140.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.300 kg |
| Shipping weight | 0.14 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
