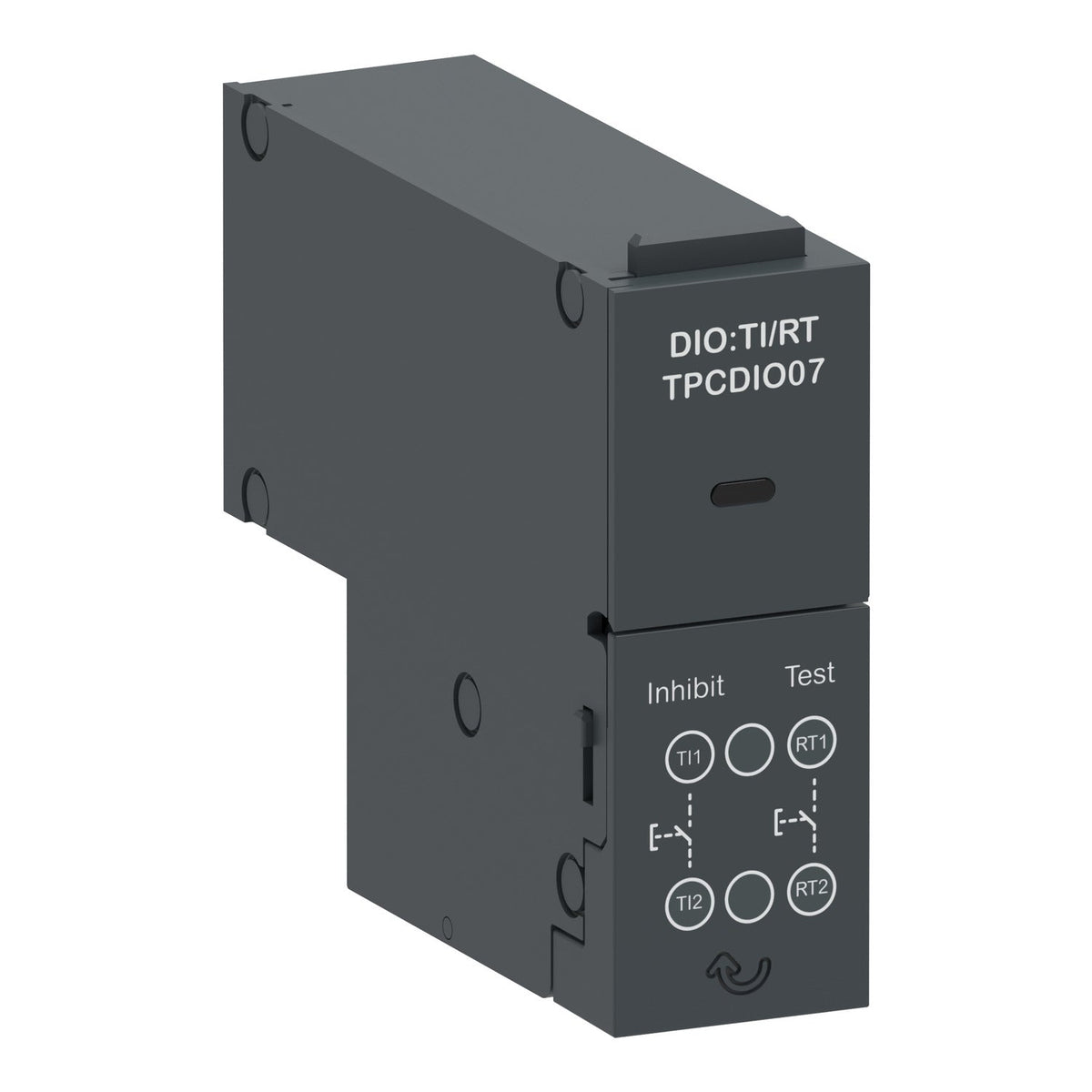

The TPCDIO07 is a Schneider Electric TransferPacT plug-in I/O module with two dry-contact inputs for transfer inhibit and remote testing. The transfer-inhibit input blocks the switch from transferring, letting the controller be locked out or coordinated with another ATSE, and the remote-testing input starts the switch's test sequence from a distance.
Use the transfer-inhibit input where the controller must be locked against transfer during maintenance or when another automatic transfer switch upstream or downstream needs to coordinate sequencing, and use the remote-testing input to run periodic generator exercise tests without a technician at the panel.
| Range of product | TransferPacT |
|---|---|
| Product or component type | I/O module, Dry contact |
| Device application | Signalling |
| Auxiliary contact composition | 2 NO |
|---|---|
| Signalling function | Transfer inhibit, Remote testing |
| Auxiliary connection terminal | Screw clamp terminal 0.05…2.6 mm² |
| Mounting mode | Plug-in |
| Mounting position | Left-bottom |
| minimum input current | 5 mA |
| [Ui] rated insulation voltage | 30 V DC |
| Tightening torque | 0.6 N.m +/- 0.1 N.m |
| Height | 56.5 mm |
| Width | 20 mm |
| Depth | 69 mm |
| Net weight | 40 g |
| Accessory / separate part category | Signalling accessory |
| IP degree of protection | IP20 |
|---|---|
| Pollution degree | 3 |
| Part number | TPCDIO07 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 10.600 cm |
| Package 1 Length | 10.600 cm |
| Package 1 Weight | 90.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.160 kg |
| Shipping weight | 0.04 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
