Schneider Electric TPCCOM16 TransferPacT Modbus RS485 Module Transfer Switch Accessory

% $-78.91

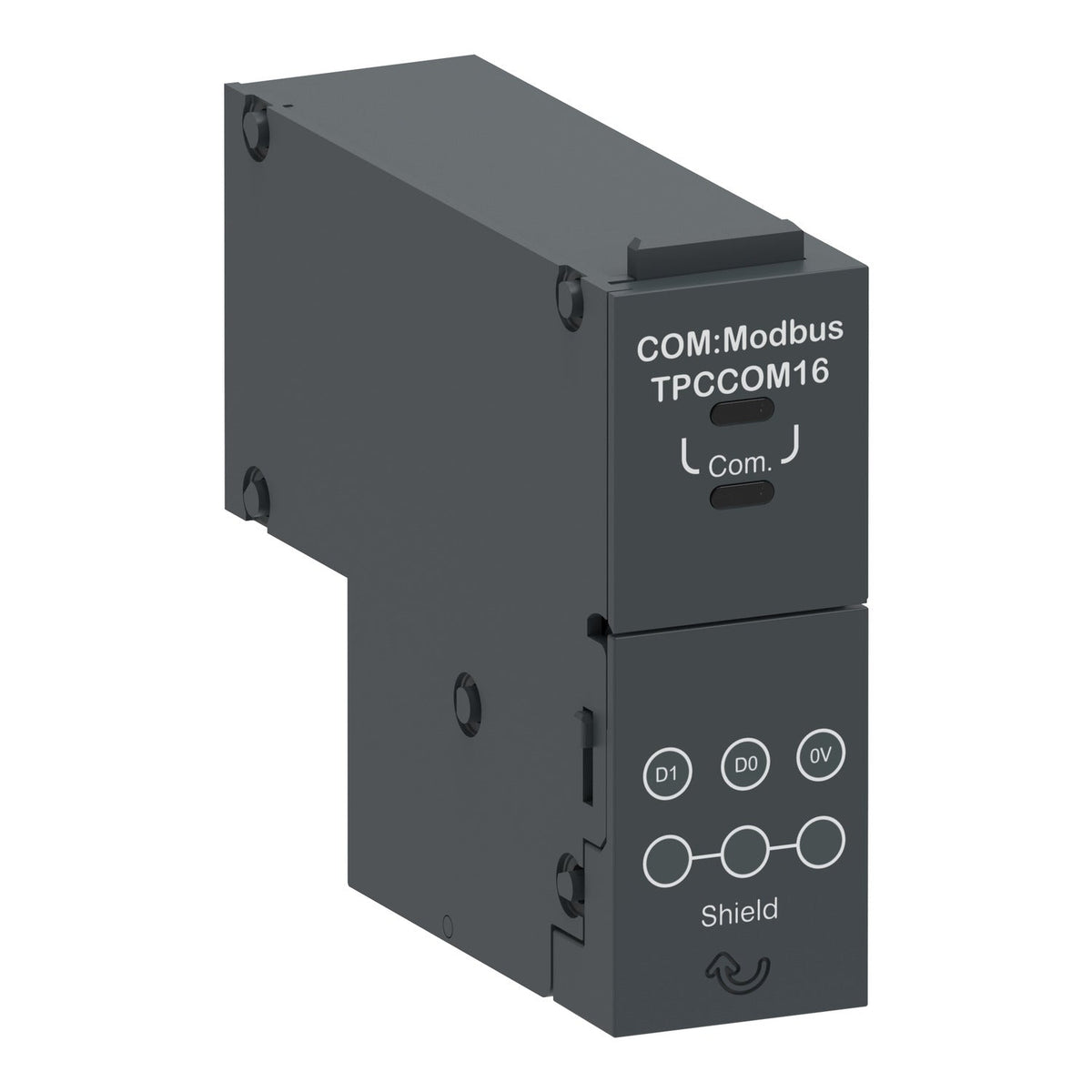

Schneider Electric TPCCOM16 TransferPacT Transfer Switch Accessory
Schneider Electric TPCCOM16 TransferPacT Transfer Switch Accessory

Schneider Electric TPCCOM16 TransferPacT Modbus RS485 Module Transfer Switch Accessory

Brand: Schneider Electric
Reference No: TPCCOM16
Catalog No: TPCCOM16
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$78.91

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The TPCCOM16 is a Schneider Electric TransferPacT Modbus RS485 communication module that plugs into the controller to expose status, analog parameters, event logs and configuration over an open Modbus RTU protocol. It connects through a screw-terminal RJ45-style port at 4800, 9600 or 19200 baud, addressable from 0 to 248 on the bus.

Technical Specifications

Reference TPCCOM16
Brand Schneider Electric
Product type Modbus RS485 communication module
Device application Communication
Bus type / protocol Modbus RTU, even parity, 4800 / 9600 / 19200 baud
Physical interface RS485
Addressing range 0...248
[Ui] rated insulation voltage 30 V DC
Cable type Shielded twisted pair, 1.5 mm squared
Connections Screw-clamp terminals
Tightening torque 0.6 N.m +/- 0.1 N.m
Mounting mode Plug-in
Dimensions (W x H x D) 20 x 56.5 x 69 mm
Net weight 40 g
IP degree of protection IP20

Selection Notes

Fit the TPCCOM16 when the transfer switch needs to report into a Modbus RTU SCADA or building management system; the module exposes the same status, event log and configuration data the local display shows, over a wired RS485 bus instead of a front-panel readout.

Technical Details

Short Description
The TPCCOM16 is a Schneider Electric TransferPacT Modbus RS485 communication module that plugs into the controller to expose status, analog parameters
Catalog No
TPCCOM16
Delivery Date (Days)
30 days
Model Number
TransferPacT
Tariff Code
853890
