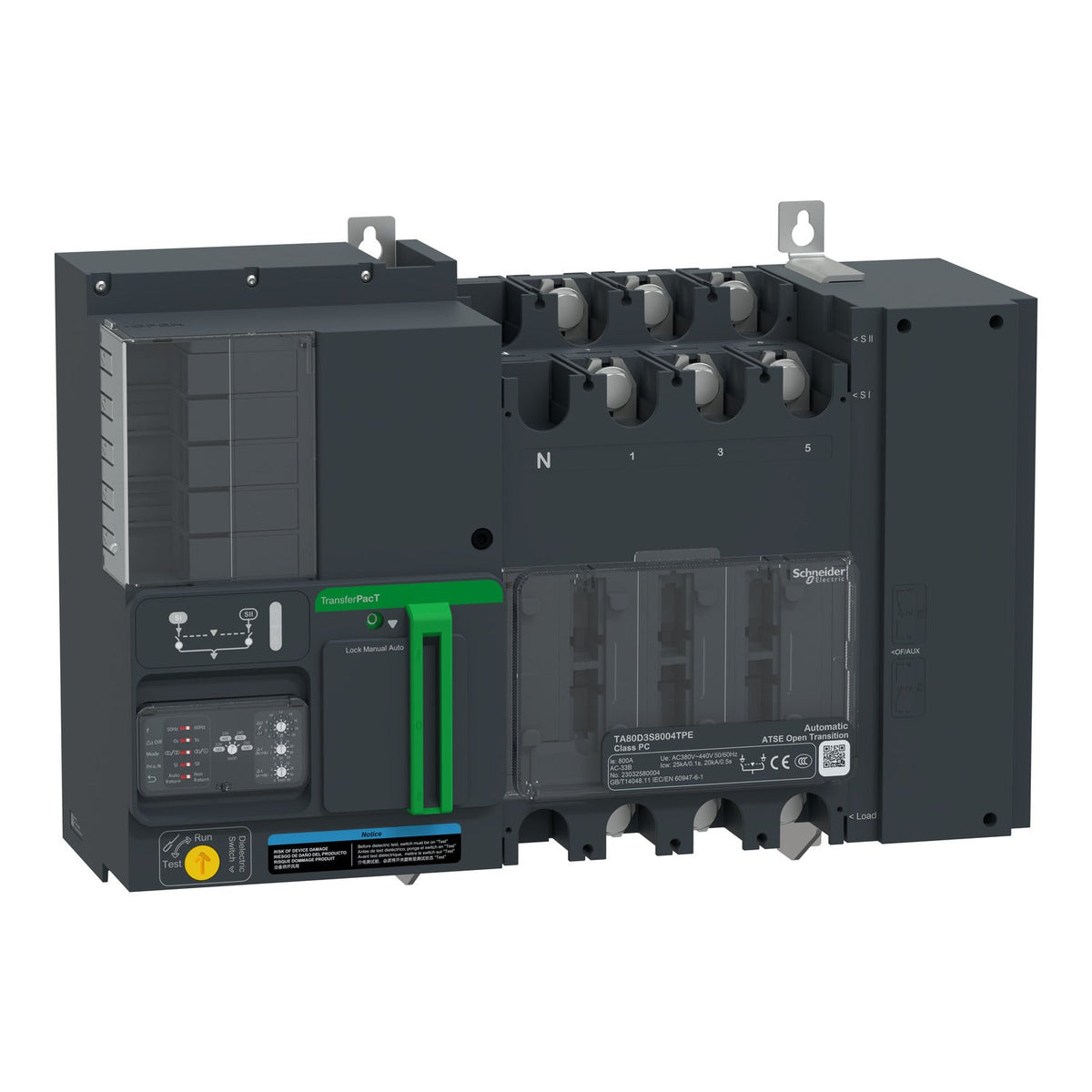

The TA80D3S8004TPE is a Schneider Electric TransferPacT automatic transfer switch rated 800 A at 400 V AC, 3-pole, built on the 800 A frame and fitted with a rotary controller. It switches a load between two independent AC sources without an external controller, holding 800 A continuously at 60 degrees C ambient inside a distribution panel.
The rotary controller on the TA80D3S8004TPE sets source priority and timers through a rotary/dip switch on the front, a simpler interface for panels where the switch position rarely needs reconfiguration. At 800 A, the TA80D3S8004TPE runs its 800 A frame at full rated current with no spare capacity margin. The 3-pole configuration switches the phase conductors only, with the neutral left solid, a choice that follows the earthing arrangement (TN-C-S vs TN-S) of the installation it serves. The 400 V AC rated Icm of 40 kA alone (330 kA backed by an upstream protective device) sets how much fault current the switch can close onto without welding its contacts, a figure to check against the available short-circuit current at the installation point.
TransferPacT automatic transfer switches of this type change the power source for life-safety and continuity loads such as fire-fighting equipment, smoke extraction fans, sprinkler pumps and emergency lighting, and are used in industrial and commercial buildings, data centers, healthcare facilities and transportation infrastructure where an uninterrupted supply between two sources is required.
| Range of product | TransferPacT |
|---|---|
| Product or component type | Automatic transfer switch |
| Device application | Change source of supply |
| Poles description | 3P |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Downside connection | Screwed |
| Mounting mode | Fixed |
| Upside connection | Screwed |
| Contact position indicator | Yes |
| [Icm] rated short-circuit making capacity | 40 kA switch-disconnector alone 400 V AC at 50 Hz, 330 kA with upstream protection circuit breaker 400 V AC at 50 Hz |
| Suitability for isolation | Yes |
| Transfer switch class | PC |
|---|---|
| Number of contact position | 3 |
| Signal contacts composition | 1 NO + 2 NC, 1 NC + 2 NO, 2 NO |
| Utilization category | AC-33B |
| [Ue] rated operational voltage | 400 V AC 50/60 Hz |
| Control type | Rotary knob, Selector switch |
| Operating mode | Automatic, Manual |
| Mounting support | Plate |
| Locking options description | Padlock in OFF position, Padlock in SI / SII position |
| Rated duty | Uninterrupted |
| [Ui] rated insulation voltage | Switch: 1000 V, Controller: 500 V |
| [Uimp] rated impulse withstand voltage | Switch: 12 kV, Controller: 6 kV |
| [Ie] rated operational current | 800 A |
| Mechanical interlocking | With mechanical interlocking |
| Mechanical durability | 10000 cycles |
| Connection pitch | 45 mm |
| [Icw] rated short-time withstand current | 20 kA during 0.5 s, 25 kA during 0.1 s |
| Height | 341 mm |
| Width | 467 mm |
| Depth | 186 mm |
| Net weight | 22.4 kg |
| [Ith] conventional free air thermal current | 800 A at 60 °C |
| Standards | IEC 60947-6-1 |
|---|---|
| Product certifications | CCC, CE, CB |
| IP degree of protection | Front face: IP40 auto mode, Inside the enclosure: IP20 manual mode |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Pollution degree | 3 |
| Part number | TA80D3S8004TPE |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 73.000 cm |
| Package 1 Width | 60.000 cm |
| Package 1 Length | 80.000 cm |
| Package 1 Weight | 36.988 kg |
| Shipping weight | 22.4 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of TA80D3S8004TPE is 800 A.
The rated operational voltage of TA80D3S8004TPE is 400 V AC.
The tariff (HS) code on file for TA80D3S8004TPE is 853650.
TA80D3S8004TPE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
