Part number
TA1AD3L8004TPE
$5,879.72 On request Dispatch — · From TürkiyeGet a Quote
TransferPacT

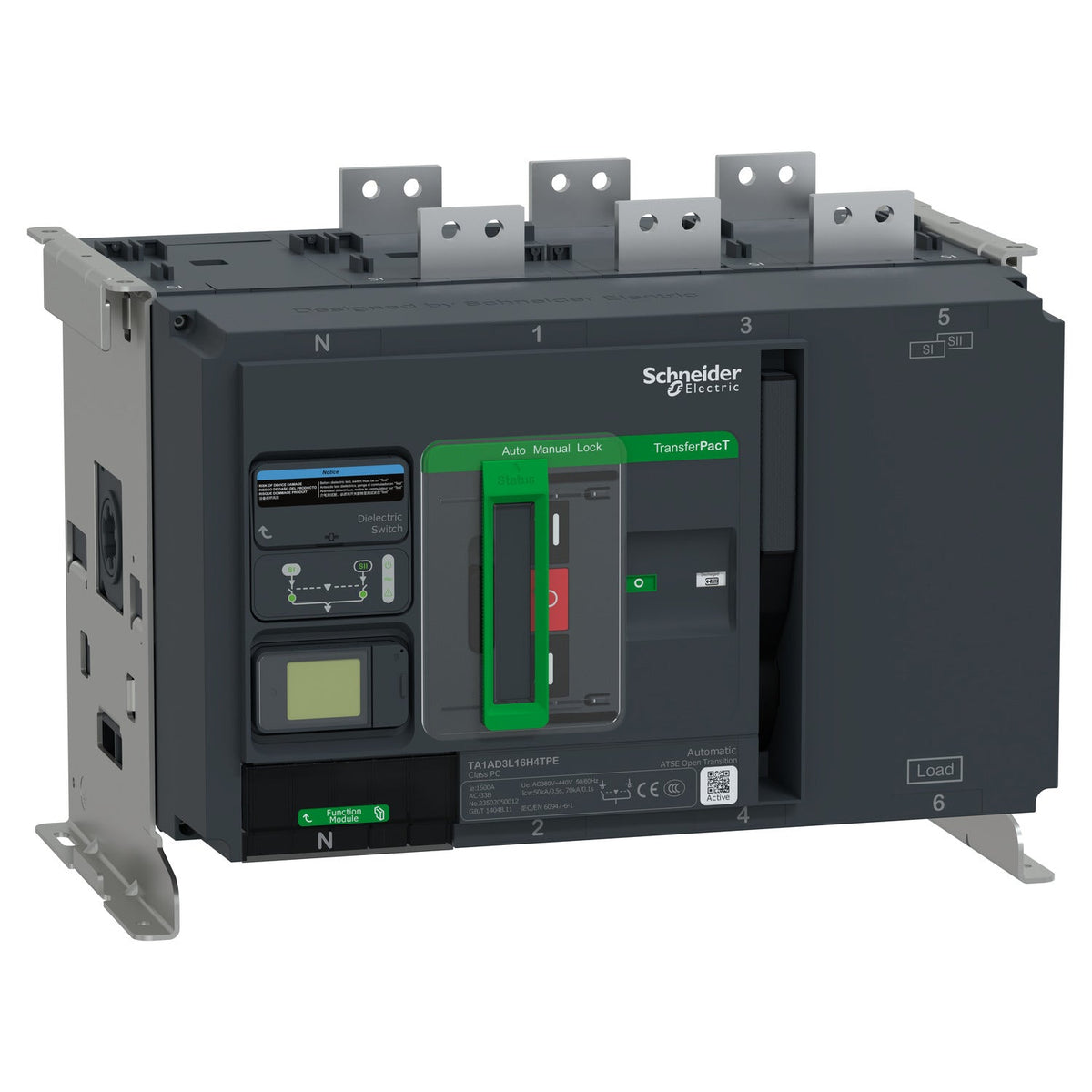

Schneider Electric TA1AD3L8004TPE TransferPacT TA1A 3P 800 A LCD 400 V Automatic Transfer Switch

Schneider Electric TA1AD3L8004TPE TransferPacT automatic transfer switch, 3P, 800 A, 400 V AC, LCD controller, TA1A frame (800-1600 A).

Rated current
800 A
Rated operational voltage
400 V AC
Display
LCD screen
Description

About the TA1AD3L8004TPE

The Schneider Electric TA1AD3L8004TPE is a 3-pole TransferPacT automatic transfer switch rated 800 A at 400 V AC, built to change the source of supply between two AC networks without interrupting a standby or life-safety load. It carries a lcd screen on the front for local status and control, and it is intended for uninterrupted-duty changeover in industrial, commercial and healthcare installations within the TA1A frame (800-1600 A).

Certifications & Standards

  • CE
  • CB
  • CCC
  • IEC 60947-6-1

Selection Notes

The 3-pole TA1AD3L8004TPE switches only the phase conductors, so the neutral stays solidly connected between the two sources; pick this execution where both the normal and the standby supply share a common neutral-to-earth bond. Its LCD controller displays source status, the active contact position and alarms locally and is operated from the front push-buttons, which is useful where staff need to read the changeover state without opening the panel. At 800 A this unit sits within the TA1A frame covering 800-1600 A, the top of the TransferPacT range, and carries the higher 1000 V (switch) insulation voltage and 50 kA during 0.5 s | 70 kA during 0.1 s short-time withstand rating that the smaller 160/250/630 A frames do not reach. The 50 kA during 0.5 s | 70 kA during 0.1 s short-time withstand current lets it be installed directly downstream of an upstream breaker sized to that let-through level, without extra current-limiting fuses, and the AC-33B, AC-33A utilization category confirms it for uninterrupted-duty source changeover.

Specification

Full specification

58 values · Last verified 30 Oct 2026

Main 12

Range of product TransferPacT
Product or component type Automatic transfer switch
Device application Change source of supply
Poles description 3P
Network type AC
Network frequency 50/60 Hz
Downside connection Screwed
Mounting mode Fixed
Upside connection Screwed
Contact position indicator Yes
[Icm] rated short-circuit making capacity 105 kA switch-disconnector alone, 154 kA with upstream protection circuit breaker
Suitability for isolation Yes

Complementary 23

Transfer switch class PC
Number of contact position 3
Signal contacts composition 1 NO + 2 NC, 1 NC + 2 NO, 2 NO
Utilization category AC-33B, AC-33A
[Ue] rated operational voltage 400 V AC 50/60 Hz
Control type 4 push-buttons
Operating mode Automatic, Manual
Display type LCD screen
Mounting support Plate
Locking options description Padlock in OFF position
Rated duty Uninterrupted
[Ui] rated insulation voltage Switch: 1000 V, Controller: 500 V
[Uimp] rated impulse withstand voltage Switch: 12 kV, Controller: 6 kV
[Ie] rated operational current 800 A
Mechanical interlocking With mechanical interlocking
Mechanical durability 10000 cycles
Connection pitch 115 mm
[Icw] rated short-time withstand current 50 kA during 0.5 s, 70 kA during 0.1 s
Height 391 mm
Width 540 mm
Depth 383.5 mm
Net weight 63.2 kg
[Ith] conventional free air thermal current 800 A at 60 °C

Environment 6

Standards IEC 60947-6-1
Product certifications CCC, CE, CB
IP degree of protection Front face: IP40 auto mode, Inside the enclosure: IP20 manual mode
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…85 °C
Pollution degree 3
Show all 58 specifications ↓ Show less ↑17 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number TA1AD3L8004TPE
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 73.5 cm
Package 1 Width 60 cm
Package 1 Length 80 cm
Package 1 Weight 72 kg
Shipping weight 63.2 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for TA1AD3L8004TPE

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CCC
  • IEC 60947-6-1
Quick answers

Questions about the TA1AD3L8004TPE

What is the rated current of TA1AD3L8004TPE?

The rated current of TA1AD3L8004TPE is 800 A.

Which supply voltage is TA1AD3L8004TPE rated for?

The rated operational voltage of TA1AD3L8004TPE is 400 V AC.

What is the HS code of TA1AD3L8004TPE for customs?

The tariff (HS) code on file for TA1AD3L8004TPE is 853650.

Where does TA1AD3L8004TPE ship from, and how fast?

TA1AD3L8004TPE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
