Part number
TA10D3S0634TPE
$711.56 On request Dispatch — · From TürkiyeGet a Quote
TransferPacT

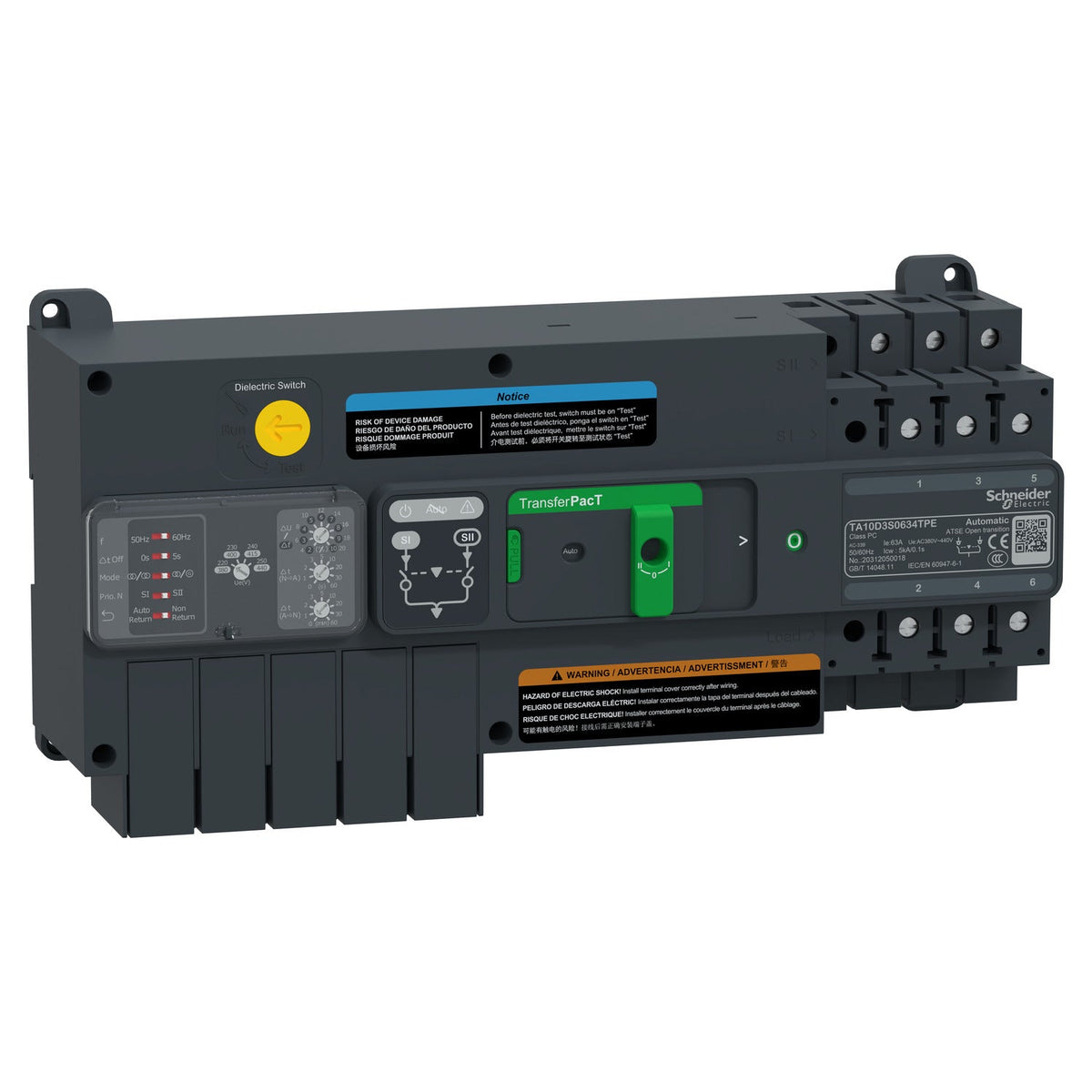

Schneider Electric TA10D3S0634TPE TransferPacT 3P 63 A 400 V Rotary Controller Automatic Transfer Switch

Schneider Electric TA10D3S0634TPE TransferPacT 3P automatic transfer switch, 63 A, 400 V AC.

Rated current
63 A
Rated operational voltage
400 V AC
Description

About the TA10D3S0634TPE

The Schneider Electric TA10D3S0634TPE is a 3P TransferPacT automatic transfer switch rated for 63 A at 400 V AC, built on the 32-100 A TA10 frame. It switches a load between two AC supply sources through 3 contact positions with mechanical and electrical position indication, and its front rotary knob and selector switch give local manual control for automatic or manual operation.

Certifications & Standards

  • CE
  • CB
  • CCC
  • IEC 60947-6-1

Selection Notes

The rotary knob and selector switch give local manual control without a display, which keeps the front panel simpler than the LCD-controller version on the same TA10 frame; choose that LCD variant instead where remote status and alarm detail at the panel matter. The 63 A rating sits within the 32-100 A TA10 frame shared with the 32 A, 40 A, 50 A, 80 A siblings; pick a higher-current sibling if the connected load draws more than 63 A, since the enclosure and mounting dimensions stay identical across the frame. As a 3-pole switch it transfers the three phase conductors only, relying on a shared neutral between the two sources; the 4P version in the same frame switches the neutral as well.

Applications

TransferPacT automatic transfer switches of this frame are used to change the power source for life-safety and continuity-critical loads such as fire-fighting equipment, smoke extraction fans, sprinkler pumps and emergency lighting in industrial and commercial buildings, data centers, healthcare facilities and transportation infrastructure, mounted inside a power distribution cabinet on DIN rail or plate.

Specification

Full specification

57 values · Last verified 30 Oct 2026

Main 12

Range of product TransferPacT
Product or component type Automatic transfer switch
Device application Change source of supply
Poles description 3P
Network type AC
Network frequency 50/60 Hz
Downside connection Screwed
Mounting mode Fixed
Upside connection Screwed
Contact position indicator Yes
[Icm] rated short-circuit making capacity 15 kA switch-disconnector alone 400 V AC at 50 Hz, 75 kA with upstream protection circuit breaker 400 V AC at 50 Hz
Suitability for isolation Yes

Complementary 22

Transfer switch class PC
Number of contact position 3
Signal contacts composition 1 NO + 2 NC, 1 NC + 2 NO, 2 NO
Utilization category AC-33B
[Ue] rated operational voltage 400 V AC 50/60 Hz
Control type Rotary knob, Selector switch
Operating mode Automatic, Manual
Mounting support Plate, DIN rail
Locking options description Padlock in OFF position
Rated duty Uninterrupted
[Ui] rated insulation voltage Switch: 800 V, Controller: 500 V
[Uimp] rated impulse withstand voltage Switch: 6 kV, Controller: 6 kV
[Ie] rated operational current 63 A
Mechanical interlocking With mechanical interlocking
Mechanical durability 8000 cycles
Connection pitch 18 mm
[Icw] rated short-time withstand current 5 kA during 0.1 s
Height 147 mm
Width 310 mm
Depth 94 mm
Net weight 3.4 kg
[Ith] conventional free air thermal current 63 A at 60 °C

Environment 6

Standards IEC 60947-6-1
Product certifications CE, CB, CCC
IP degree of protection Front face: IP40 auto mode, Inside the enclosure: IP20 manual mode
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…85 °C
Pollution degree 3
Show all 57 specifications ↓ Show less ↑17 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number TA10D3S0634TPE
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.000 cm
Package 1 Width 21.500 cm
Package 1 Length 37.000 cm
Package 1 Weight 4.072 kg
Shipping weight 3.4 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for TA10D3S0634TPE

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CCC
  • IEC 60947-6-1
Quick answers

Questions about the TA10D3S0634TPE

What is the rated current of TA10D3S0634TPE?

The rated current of TA10D3S0634TPE is 63 A.

Which supply voltage is TA10D3S0634TPE rated for?

The rated operational voltage of TA10D3S0634TPE is 400 V AC.

What is the HS code of TA10D3S0634TPE for customs?

The tariff (HS) code on file for TA10D3S0634TPE is 853650.

Where does TA10D3S0634TPE ship from, and how fast?

TA10D3S0634TPE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
