Part number
TA10D2S1003TPE
$719.79 On request Dispatch — · From TürkiyeGet a Quote
TransferPacT

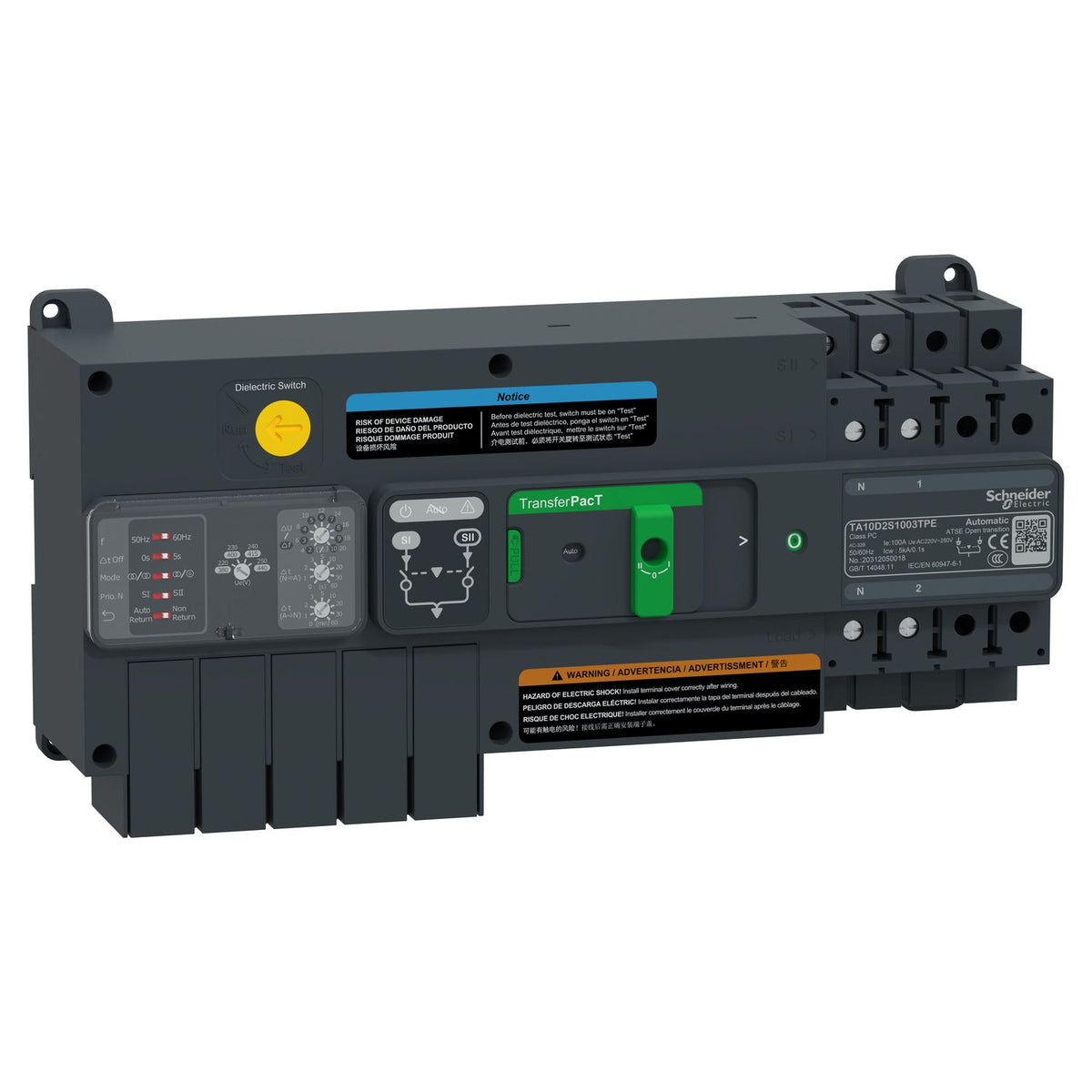

Schneider Electric TA10D2S1003TPE TransferPacT 2P 100 A 230 V Rotary Controller Automatic Transfer Switch

Schneider Electric TA10D2S1003TPE TransferPacT 2P automatic transfer switch, 100 A, 230 V AC.

Rated current
100 A
Rated operational voltage
230 V AC
Description

About the TA10D2S1003TPE

The Schneider Electric TA10D2S1003TPE is a 2P TransferPacT automatic transfer switch rated for 100 A at 230 V AC, built on the 32-100 A TA10 frame. It switches a load between two AC supply sources through 3 contact positions with mechanical and electrical position indication, and its front rotary knob and selector switch give local manual control for automatic or manual operation.

Certifications & Standards

  • CE
  • CB
  • CCC
  • IEC 60947-6-1

Selection Notes

The rotary knob and selector switch give local manual control without a display, which keeps the front panel simpler than the LCD-controller version on the same TA10 frame; choose that LCD variant instead where remote status and alarm detail at the panel matter. This 100 A switch carries utilization category AC-32B rather than the AC-33B used by the lower-current siblings in the same frame, reflecting the higher current duty point at the top of the 32-100 A range. The 100 A rating sits within the 32-100 A TA10 frame shared with the 32 A, 40 A, 50 A, 63 A siblings; pick a higher-current sibling if the connected load draws more than 100 A, since the enclosure and mounting dimensions stay identical across the frame. Being a 2-pole switch, it is sized for single-phase change-of-source duty rather than 3-phase distribution, where the 3P or 4P versions in the same frame apply.

Applications

TransferPacT automatic transfer switches of this frame are used to change the power source for life-safety and continuity-critical loads such as fire-fighting equipment, smoke extraction fans, sprinkler pumps and emergency lighting in industrial and commercial buildings, data centers, healthcare facilities and transportation infrastructure, mounted inside a power distribution cabinet on DIN rail or plate.

Specification

Full specification

57 values · Last verified 30 Oct 2026

Main 12

Range of product TransferPacT
Product or component type Automatic transfer switch
Device application Change source of supply
Poles description 2P
Network type AC
Network frequency 50/60 Hz
Downside connection Screwed
Mounting mode Fixed
Upside connection Screwed
Contact position indicator Yes
[Icm] rated short-circuit making capacity 15 kA switch-disconnector alone 400 V AC at 50 Hz, 75 kA with upstream protection circuit breaker 400 V AC at 50 Hz
Suitability for isolation Yes

Complementary 22

Transfer switch class PC
Number of contact position 3
Signal contacts composition 1 NO + 2 NC, 1 NC + 2 NO, 2 NO
Utilization category AC-32B
[Ue] rated operational voltage 230 V AC 50/60 Hz
Control type Rotary knob, Selector switch
Operating mode Automatic, Manual
Mounting support Plate, DIN rail
Locking options description Padlock in OFF position
Rated duty Uninterrupted
[Ui] rated insulation voltage Switch: 800 V, Controller: 500 V
[Uimp] rated impulse withstand voltage Switch: 6 kV, Controller: 6 kV
[Ie] rated operational current 100 A
Mechanical interlocking With mechanical interlocking
Mechanical durability 8000 cycles
Connection pitch 18 mm
[Icw] rated short-time withstand current 5 kA during 0.1 s
Height 147 mm
Width 310 mm
Depth 94 mm
Net weight 3.4 kg
[Ith] conventional free air thermal current 100 A at 60 °C

Environment 6

Standards IEC 60947-6-1
Product certifications CE, CB, CCC
IP degree of protection Front face: IP40 auto mode, Inside the enclosure: IP20 manual mode
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…85 °C
Pollution degree 3
Show all 57 specifications ↓ Show less ↑17 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number TA10D2S1003TPE
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.000 cm
Package 1 Width 21.000 cm
Package 1 Length 37.000 cm
Package 1 Weight 3.948 kg
Shipping weight 3.4 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for TA10D2S1003TPE

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CCC
  • IEC 60947-6-1
Quick answers

Questions about the TA10D2S1003TPE

What is the rated current of TA10D2S1003TPE?

The rated current of TA10D2S1003TPE is 100 A.

Which supply voltage is TA10D2S1003TPE rated for?

The rated operational voltage of TA10D2S1003TPE is 230 V AC.

What is the HS code of TA10D2S1003TPE for customs?

The tariff (HS) code on file for TA10D2S1003TPE is 853650.

Where does TA10D2S1003TPE ship from, and how fast?

TA10D2S1003TPE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
