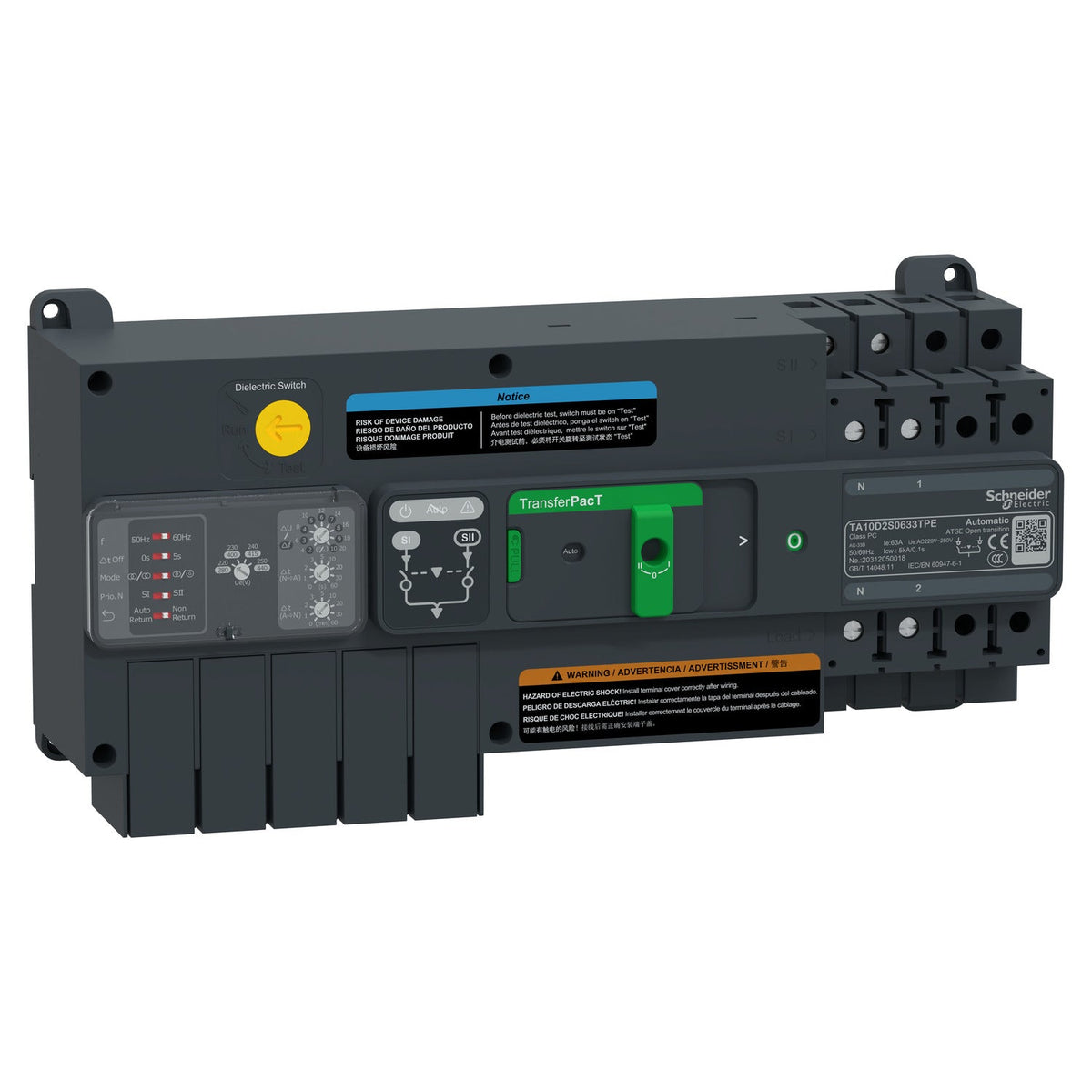

Schneider Electric TA10D2S0633TPE TransferPacT 2P 63 A 230 V Rotary Controller Automatic Transfer Switch

The Schneider Electric TA10D2S0633TPE is a 2P TransferPacT automatic transfer switch rated for 63 A at 230 V AC, built on the 32-100 A TA10 frame. It switches a load between two AC supply sources through 3 contact positions with mechanical and electrical position indication, and its front rotary knob and selector switch give local manual control for automatic or manual operation.

Technical Specifications

Certifications & Standards

• CE
• CB
• CCC
• IEC 60947-6-1

Selection Notes

The rotary knob and selector switch give local manual control without a display, which keeps the front panel simpler than the LCD-controller version on the same TA10 frame; choose that LCD variant instead where remote status and alarm detail at the panel matter. The 63 A rating sits within the 32-100 A TA10 frame shared with the 32 A, 40 A, 50 A, 80 A siblings; pick a higher-current sibling if the connected load draws more than 63 A, since the enclosure and mounting dimensions stay identical across the frame. Being a 2-pole switch, it is sized for single-phase change-of-source duty rather than 3-phase distribution, where the 3P or 4P versions in the same frame apply.

Applications

TransferPacT automatic transfer switches of this frame are used to change the power source for life-safety and continuity-critical loads such as fire-fighting equipment, smoke extraction fans, sprinkler pumps and emergency lighting in industrial and commercial buildings, data centers, healthcare facilities and transportation infrastructure, mounted inside a power distribution cabinet on DIN rail or plate.
