Schneider Electric RXG26P7 Harmony Miniature Plug-in Relay 2 CO 5 A 230 V AC Miniature Plug-in Relay

% $-5.26

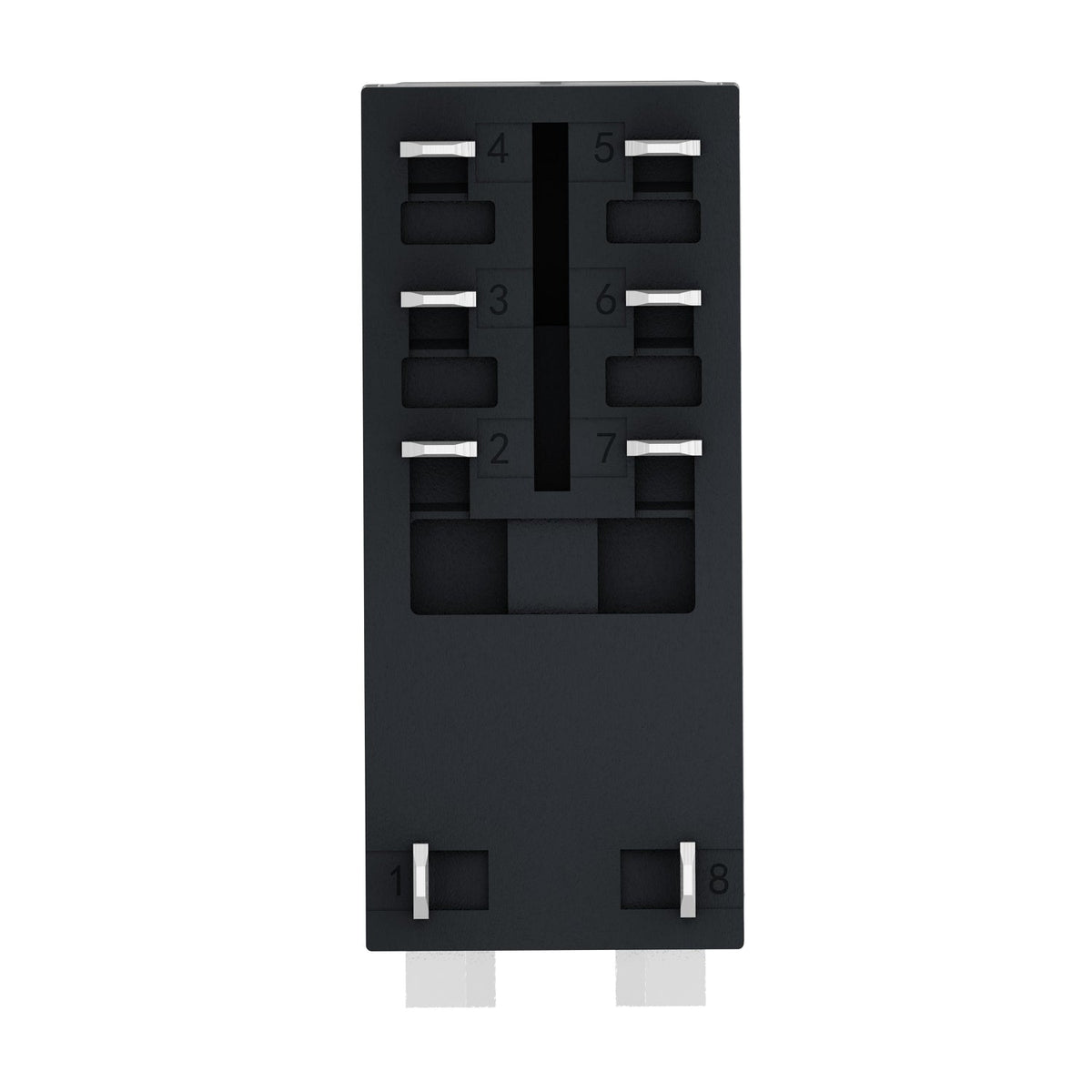

Schneider Electric RXG26P7 Harmony plug-in relay 2 CO 5A 230V AC
Schneider Electric RXG26P7 Harmony plug-in relay 2 CO 5A 230V AC

Schneider Electric RXG26P7 Harmony Miniature Plug-in Relay 2 CO 5 A 230 V AC Miniature Plug-in Relay

Brand: Schneider Electric
Reference No: RXG26P7
Catalog No: RXG26P7
Series: Harmony Electromechanical Relays
Tariff Code (HS): 853649
Rated Current: 5 A
Rated Voltage: 230 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$5.26

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric RXG26P7 is a Harmony Electromechanical Relays interface plug-in relay with 2 changeover (C/O) contacts rated 5 A at 250 V AC, controlled by a 230 V AC coil. It mounts on an RXZ relay socket, signals coil status with a built-in LED, and carries an IP40 enclosure rating for panel mounting.

Technical Specifications

Reference RXG26P7
Brand Schneider Electric
Range Harmony Electromechanical Relays
Series RXG
Product Type Interface plug-in relay
Contacts 2 C/O
Control Circuit Voltage (Uc) 230 V AC
Conventional Enclosed Thermal Current (Ithe) 5 A at -40 to 55 degC
Rated Operational Current (Ie) 5 A at 250 V AC / 5 A at 30 V DC
Load Current 5 A at 250 V AC
Minimum Switching Capacity 50 mW at 10 mA, 5 V DC
Maximum Switching Capacity 1250 VA
Rated Insulation Voltage (Ui) 250 V (IEC)
Rated Impulse Withstand Voltage (Uimp) 1200 V contacts / 6000 V coil-contact
Electrical Insulation Class Class F
Safety Reliability Data (B10d) 100,000
Operating Rate Up to 1800 cycles/hour under load
Contacts Material Silver alloy (AgSnO2In2O3)
Connection Type Flat pin (faston type)
Net Weight 0.019 kg
IP Degree of Protection IP40
Ambient Air Temperature (Operation) -40 to 70 degC
Overvoltage Category III

Certifications & Standards

  • CSA
  • CE
  • UL
  • EAC
  • CSA C22.2 No 14
  • UL 508
  • IEC 61810-1

Selection Notes

Choose the RXG26P7 over the RXG26BD when the coil needs to run directly from a 230 V AC control circuit instead of 24 V DC, and over the RXG16P7 when two independent changeover contacts are required instead of one.

Technical Details

Short Description
The Schneider Electric RXG26P7 is a Harmony Electromechanical Relays interface plug-in relay with 2 changeover (C/O) contacts rated 5 A at 250 V AC, c
Rated Current (Ampere)
5 A
Rated Voltage (VAC)
230 V AC
Mounting Type
Plug-in (RXZ socket)
Protection Type
IP40
Catalog No
RXG26P7
Delivery Date (Days)
30 days
Model Number
RXG
Tariff Code
853649
