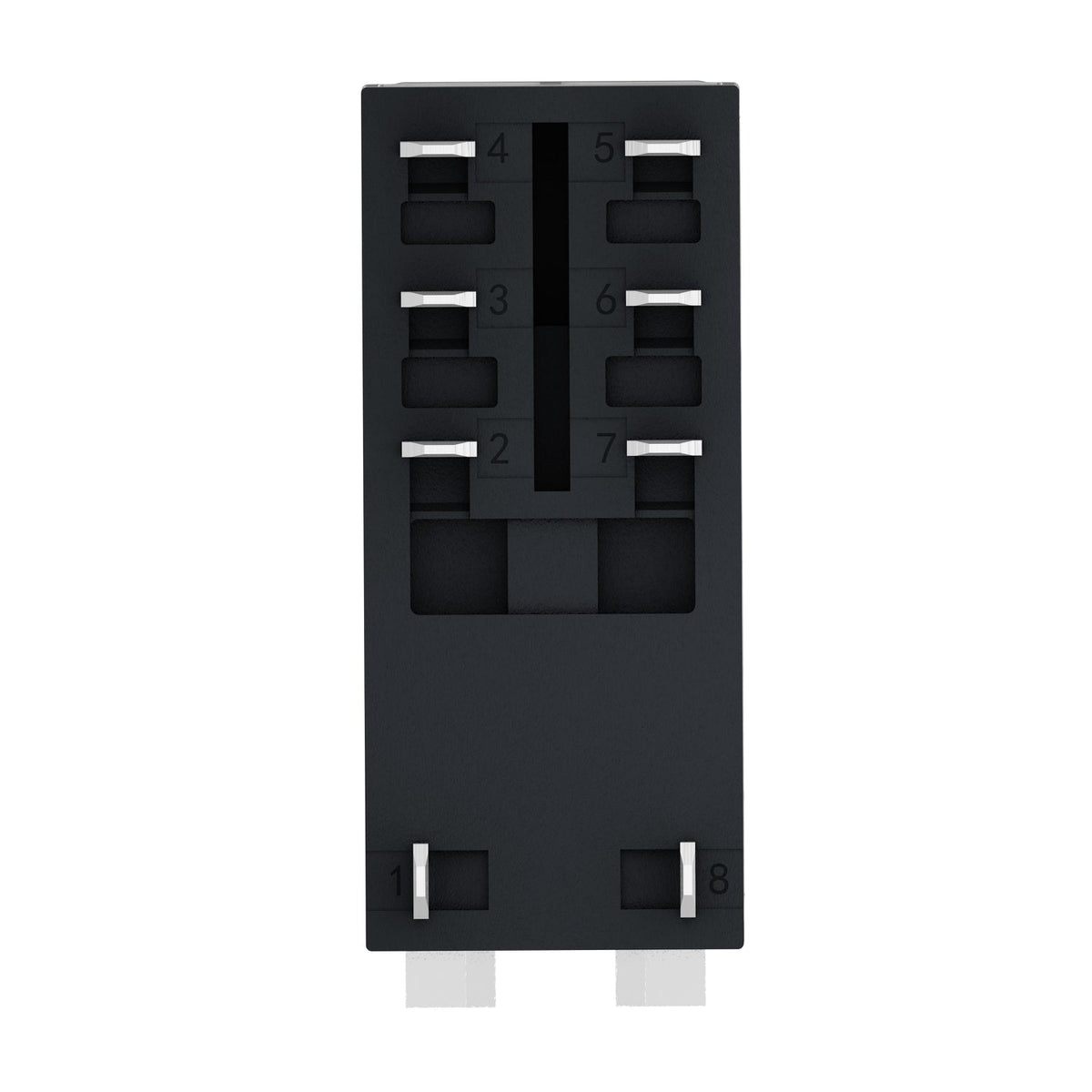

Harmony Electromechanical RelaysSchneider Electric RXG26BD Harmony Miniature Plug-in Relay 2 CO 5 A 24 V DC Miniature Plug-in Relay
The Schneider Electric RXG26BD is a Harmony Electromechanical Relays interface plug-in relay with 2 changeover (C/O) contacts rated 5 A at 250 V AC, c
Description
About the RXG26BD
About the RXG26BD
The Schneider Electric RXG26BD is a Harmony Electromechanical Relays interface plug-in relay with 2 changeover (C/O) contacts rated 5 A at 250 V AC, controlled by a 24 V DC coil. It mounts on an RXZ relay socket, signals coil status with a built-in LED, and carries an IP40 enclosure rating for panel mounting.
Certifications & Standards
- CSA
- CE
- UL
- EAC
- CSA C22.2 No 14
- UL 508
- IEC 61810-1
Selection Notes
Choose the RXG26BD over the single-contact RXG16P7 when the circuit needs two independent changeover contacts, and over the RXG26P7 when the control signal is 24 V DC rather than 230 V AC.
Specification
Full specification
Main 7
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | RXG series |
| Product or component type | Plug-in relay |
| Relay type | Interface relay |
| Contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C |
Complementary 31
| status LED | With |
|---|---|
| Electrical durability | 100000 cycles for NO at 55 °C, 100000 cycles for NC at 55 °C |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL |
| Removable legend | Without |
| Maximum switching voltage | 250 V AC, 30 V DC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| [Ie] rated operational current | 5 A at 30 V (DC) conforming to UL, 5 A at 30 V (DC) conforming to IEC, 5 A at 250 V (AC) conforming to UL, 5 A at 250 V (AC) conforming to IEC |
| Load current | 5 A at 250 V AC |
| Minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| Maximum switching capacity | 1250 VA |
| Control type | Without lockable test button |
| Average resistance | 1100 Ohm at 23 °C +/- 10 % |
| Contact resistance | 100 mOhm |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Electrical insulation class | Class F |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Operating time | 20 ms |
| Reset time | 20 ms |
| Dielectric strength | 1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation, 3000 V AC between poles with basic insulation, 1300 V AC between terminals and case with basic insulation |
| [Uimp] rated impulse withstand voltage | 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation, 4000 V between poles with basic insulation |
| Overvoltage category | III |
| Protection category | RT I |
| Pollution degree | 2 |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | Silver alloy (AgSnO2In2O3) |
| Shape of pin | Flat (faston type) |
| Net weight | 0.019 kg |
Environment 7
| Standards | CSA C22.2 No 14, UL 508, IEC 61810-1 |
|---|---|
| Product certifications | CSA, CE, UL, EAC |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP40 |
| Relative humidity | 10…85 % |
| Vibration resistance | 3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation, 5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation |
Show all 74 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | RXG26BD |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.400 cm |
| Package 1 Width | 3.200 cm |
| Package 1 Length | 3.600 cm |
| Package 1 Weight | 19.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.500 cm |
| Package 2 Width | 8.400 cm |
| Package 2 Length | 9.400 cm |
| Package 2 Weight | 215.000 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.492 kg |
| Shipping weight | 0.019 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for RXG26BD
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
- EAC
- CSA C22.2 No 14
- UL 508
- IEC 61810-1
Quick answers
Questions about the RXG26BD
What is the rated current of RXG26BD?
The rated current of RXG26BD is 5 A.
Which supply voltage is RXG26BD rated for?
The rated operational voltage of RXG26BD is 24 V DC.
What is the HS code of RXG26BD for customs?
The tariff (HS) code on file for RXG26BD is 853649.
Where does RXG26BD ship from, and how fast?
RXG26BD ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
