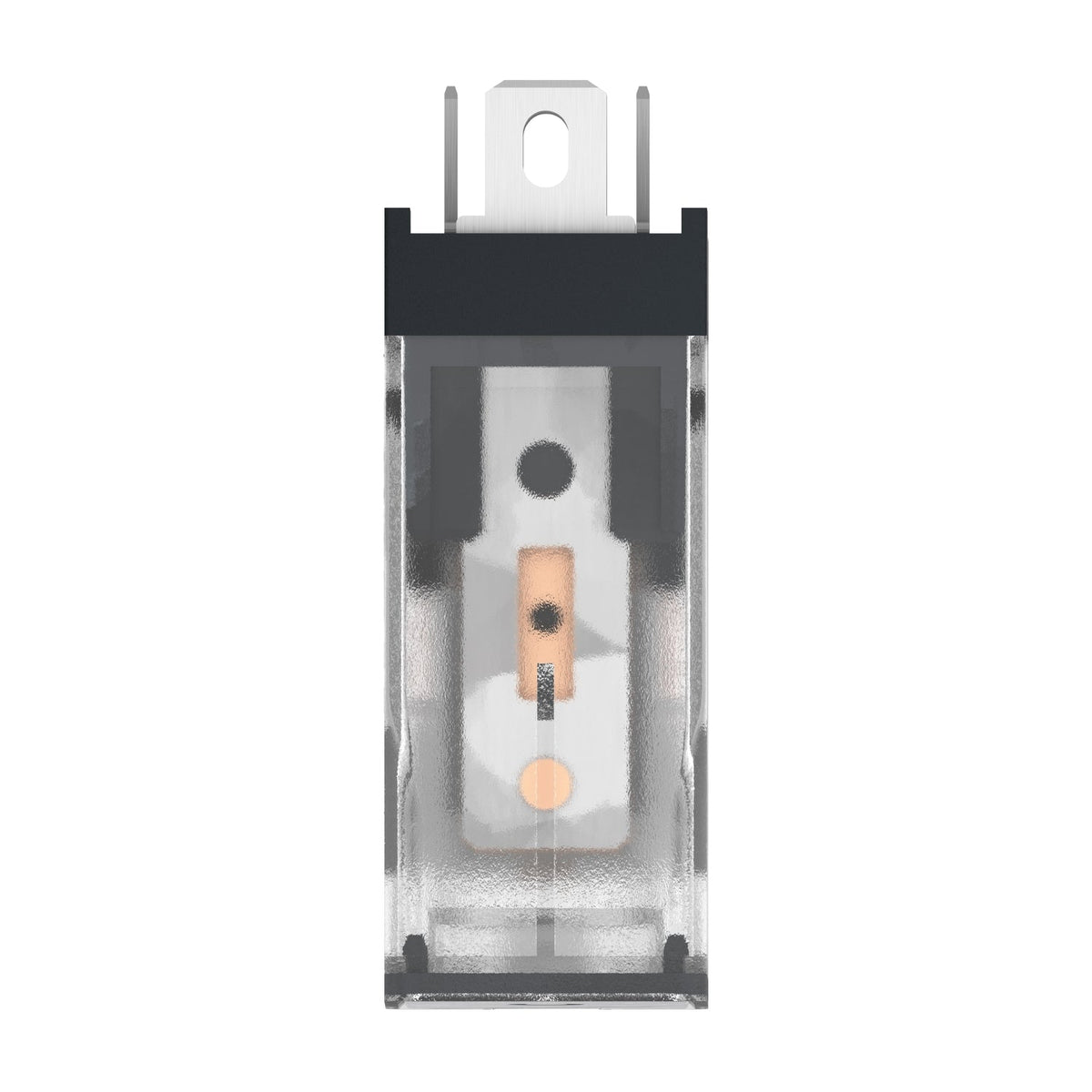

Harmony Electromechanical RelaysSchneider Electric RXG16BD Harmony 1 CO 10A 24V DC Coil LED Plug-in Relay Miniature Plug-in Relay
Harmony miniature plug-in relay, 1 CO 10A, 24V DC coil, status LED, screw connector, IP40.
Description
About the RXG16BD
About the RXG16BD
The Schneider Electric RXG16BD is a Harmony RXG series miniature plug-in relay with a 24 V DC coil, switching a single 10 A changeover contact. It has a basic cover with a status LED for day and night visibility, a screw connector socket interface, and an IP40 enclosure rating, weighing 0.019 kg.
Certifications & Standards
- CSA
- CE
- UL
- EAC
- CSA C22.2 No 14
- UL 508
- IEC 61810-1
Selection Notes
RXG16BD's 1 C/O, 10 A contact is the higher-current half of the RXG family - the 2 C/O variant in the same series carries only 5 A per contact, so pick this single-pole version where one heavier load needs switching rather than two lighter ones. The basic cover without a lockable test button keeps the part cost down for panels where relay forcing for commissioning is done at the PLC or terminal strip rather than at the relay itself; the status LED still gives a visual energised indication without that test function. Safety reliability data rates the contact at B10d = 100,000 operations, and the relay tolerates up to 1,800 switching cycles per hour under load (18,000 no-load) - figures worth checking against the driven PLC output or alarm circuit's switching frequency before specifying it into a high-cycle application.
Specification
Full specification
Main 7
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | RXG series |
| Product or component type | Plug-in relay |
| Relay type | Interface relay |
| Contacts type and composition | 1 C/O |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 10 A at -40…55 °C |
Complementary 32
| status LED | With |
|---|---|
| [Ie] rated operational current | 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to IEC, 10 A at 250 V (AC) conforming to UL |
| Electrical durability | 100000 cycles for NO resistive load at 55 °C, 100000 cycles for NC resistive load at 55 °C |
| Resistance | 1100 Ohm +/- 10 % |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL |
| Removable legend | Without |
| Maximum switching voltage | 250 V AC, 30 V DC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| Load current | 10 A at 250 V AC |
| Minimum switching capacity | 500 mW at 100 mA, 5 V DC |
| Maximum switching capacity | 2500 VA |
| Control type | Without lockable test button |
| Average resistance | 1100 Ohm at 23 °C +/- 10 % |
| Contact resistance | 100 mOhm |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Electrical insulation class | Class F |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Operating time | 20 ms |
| Reset time | 20 ms |
| Dielectric strength | 1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation, 1300 V AC between terminals and case with basic insulation |
| [Uimp] rated impulse withstand voltage | 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V AC between terminals and case with basic insulation |
| Overvoltage category | III |
| Protection category | RT I |
| Pollution degree | 2 |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | Silver alloy (AgSnO2In2O3) |
| Shape of pin | Flat (faston type) |
| Net weight | 0.019 kg |
Environment 7
| Standards | CSA C22.2 No 14, UL 508, IEC 61810-1 |
|---|---|
| Product certifications | CSA, CE, UL, EAC |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP40 |
| Relative humidity | 10…85 % |
| Vibration resistance | 3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation, 5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation |
Show all 75 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | RXG16BD |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.400 cm |
| Package 1 Width | 3.200 cm |
| Package 1 Length | 3.600 cm |
| Package 1 Weight | 19.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.500 cm |
| Package 2 Width | 8.400 cm |
| Package 2 Length | 9.400 cm |
| Package 2 Weight | 214.000 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.466 kg |
| Shipping weight | 0.019 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for RXG16BD
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
- EAC
- CSA C22.2 No 14
- UL 508
- IEC 61810-1
Quick answers
Questions about the RXG16BD
What is the rated current of RXG16BD?
The rated current of RXG16BD is 10 A.
Which supply voltage is RXG16BD rated for?
The rated operational voltage of RXG16BD is 24 V DC.
What is the HS code of RXG16BD for customs?
The tariff (HS) code on file for RXG16BD is 853649.
Where does RXG16BD ship from, and how fast?
RXG16BD ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
