Part number
RXG22P7
$11.39 On request Dispatch — · From TürkiyeGet a Quote
Harmony Electromechanical Relays

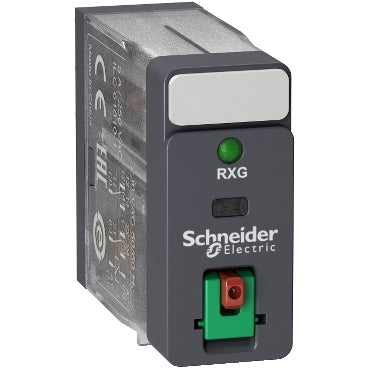

Schneider Electric RXG22P7 Harmony RXG 5A 2CO 230VAC Interface Plug-in Relay

Harmony RXG interface plug-in relay, 2 C/O, 5 A, 230 V AC coil, status LED, IP40 housing.

Rated current
5 A
Rated operational voltage
230 V AC
EAN
3606480689147
Description

About the RXG22P7

The Schneider Electric RXG22P7 is a Harmony RXG series interface plug-in relay with two C/O contacts rated 5 A and a 230 V AC control coil. It has a status LED and a lockable test button for panel troubleshooting, a mechanical flag indicator, a 1250 VA maximum switching capacity, and an IP40 housing rating.

Certifications & Standards

  • UL
  • EAC
  • CE
  • CSA
  • DNV
  • CSA C22.2 No 14
  • UL 508
  • IEC 61810-1

Selection Notes

The 2 C/O contact arrangement gives two isolated 5 A switching paths from a single 230 V AC coil, compared with the single contact on the RXG12P7. The status LED and lockable test button match the rest of the RXG series for panel troubleshooting and local forcing during commissioning. Choose the 24 V DC coil RXG22BD variant instead on control circuits powered from a DC supply. The 6000 V coil-to-contact impulse withstand under reinforced insulation gives isolation margin on mixed-voltage panels, and the 1800 cycles/hour under-load operating rate covers general interposing duty ahead of a contactor coil.

Specification

Full specification

59 values · Last verified 30 Oct 2026

Main 8

Range of Product Harmony Electromechanical Relays
Series name RXG series
Product or Component Type Plug-in relay
Relay Type Interface relay
Contacts type and composition 2 C/O
[Uc] control circuit voltage 230 V AC
[Ithe] conventional enclosed thermal current 5 A -40…131 °F (-40…55 °C)
Local signalling Flag

Complementary 31

Status LED With
Electrical durability 100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C
[Ui] rated insulation voltage 250 V IEC, 300 V CSA, 300 V UL
Removable legend With
Maximum switching voltage 250 V AC, 30 V DC
Drop-out voltage threshold >= 0.3 Uc AC
[Ie] rated operational current 5 A at 30 V (DC) conforming to UL, 5 A at 30 V (DC) conforming to IEC, 5 A at 250 V (AC) conforming to UL, 5 A at 250 V (AC) conforming to IEC
Load current 5 A 250 V AC
Minimum switching capacity 50 mW at 10 mA, 5 V DC
Maximum switching capacity 1250 VA
Control Type Lockable test button
Average resistance 23500 Ohm at 73 °F (23 °C) +/- 15 %
Contact resistance 100 mOhm
Insulation resistance 1000 MOhm at 500 V DC
Electrical Insulation Class Class F
Mechanical durability 10000000 cycles
Safety reliability data B10d = 100000
Operating rate <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load
Utilisation coefficient 20 %
Operating time 20 ms
Reset time 20 ms
Dielectric strength 1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation, 3000 V AC between poles with basic insulation, 1300 V AC terminals and case with basic insulation
[Uimp] rated impulse withstand voltage 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation, 4000 V between poles with basic insulation
Overvoltage category III
Protection category RT I
Pollution degree 2
Test levels Level A group mounting
Device presentation Complete product
Contacts material Silver alloy (AgSnO2In2O3)
Shape of pin Flat (faston type)
Net Weight 0.04 lb(US) (0.02 kg)

Environment 7

Standards CSA C22.2 No 14, UL 508, IEC 61810-1
Product Certifications UL, EAC, CE, CSA, DNV
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
IP Degree of Protection IP40
Relative humidity 10…85 %
Vibration resistance 3 gn +/- 0.75 mm 10…150 Hz)in operation, 5 gn +/- 0.75 mm 10…150 Hz)not in operation
Show all 59 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number RXG22P7
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480689147

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 0.02 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for RXG22P7

No documents are on file for this part yet.
