Harmony Electromechanical Relays

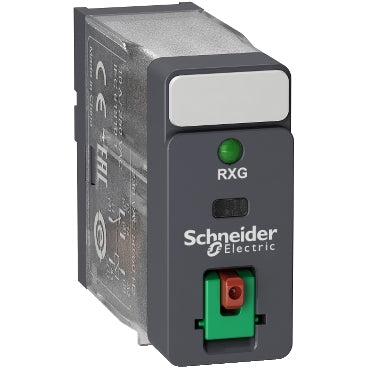

Schneider Electric RXG12P7 Harmony RXG 10A 1CO 230VAC Interface Plug-in Relay

Harmony RXG interface plug-in relay, 1 C/O, 10 A, 230 V AC coil, status LED, IP40 housing.

Rated current
10 A
Rated operational voltage
230 V AC
EAN
3606480688706
Description

About the RXG12P7

The Schneider Electric RXG12P7 is a Harmony RXG series interface plug-in relay with a single C/O contact rated 10 A and a 230 V AC control coil. It has a status LED and a lockable test button for panel troubleshooting, a mechanical flag indicator, a 2500 VA maximum switching capacity, and an IP40 housing rating.

Certifications & Standards

  • CSA
  • EAC
  • UL
  • CE
  • DNV
  • IEC 61810-1
  • CSA C22.2 No 14
  • UL 508

Selection Notes

The status LED gives a visual indication of coil energization directly on the relay body, useful for panel troubleshooting without a multimeter. At 10 A Ithe with a single C/O contact and a 230 V AC coil, it sits between the lower-current RXM miniature series and the higher-current RUM/RPM power relays. Choose the 2 C/O RXG22P7 variant when a second isolated contact is needed from the same 230 V AC coil. The 6000 V coil-to-contact impulse withstand under reinforced insulation gives extra margin where the control and load circuits share a panel with mixed voltage levels.

Specification

Full specification

59 values · Last verified 30 Oct 2026

Main 8

Range of Product Harmony Electromechanical Relays
Series name RXG series
Product or Component Type Plug-in relay
Relay Type Interface relay
Contacts type and composition 1 C/O
[Uc] control circuit voltage 230 V AC
[Ithe] conventional enclosed thermal current 10 A -40…131 °F (-40…55 °C)
Local signalling Flag

Complementary 31

Status LED With
Electrical durability 100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C
[Ui] rated insulation voltage 250 V IEC, 300 V CSA, 300 V UL
Removable legend With
Maximum switching voltage 250 V AC, 30 V DC
Drop-out voltage threshold >= 0.3 Uc AC
[Ie] rated operational current 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to UL, 10 A at 250 V (AC) conforming to IEC
Load current 10 A 250 V AC
Minimum switching capacity 500 mW at 100 mA, 5 V DC
Maximum switching capacity 2500 VA
Control Type Lockable test button
Average resistance 23500 Ohm at 73 °F (23 °C) +/- 15 %
Contact resistance 100 mOhm
Insulation resistance 1000 MOhm at 500 V DC
Electrical Insulation Class Class F
Mechanical durability 10000000 cycles
Safety reliability data B10d = 100000
Operating rate <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load
Utilisation coefficient 20 %
Operating time 20 ms
Reset time 20 ms
Dielectric strength 1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation, 1300 V AC terminals and case with basic insulation
[Uimp] rated impulse withstand voltage 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation
Overvoltage category III
Protection category RT I
Pollution degree 2
Test levels Level A group mounting
Device presentation Complete product
Contacts material Silver alloy (AgSnO2In2O3)
Shape of pin Flat (faston type)
Net Weight 0.04 lb(US) (0.02 kg)

Environment 7

Standards IEC 61810-1, CSA C22.2 No 14, UL 508
Product Certifications CSA, EAC, UL, CE, DNV
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
IP Degree of Protection IP40
Relative humidity 10…85 %
Vibration resistance 3 gn +/- 0.75 mm 10…150 Hz)in operation, 5 gn +/- 0.75 mm 10…150 Hz)not in operation
Show all 59 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number RXG12P7
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480688706

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 0.02 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
