- Part number
- RXG12BD
Description
About the RXG12BD
About the RXG12BD

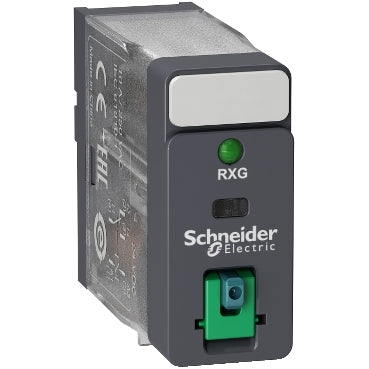

The Schneider Electric RXG12BD is a Harmony RXG series interface plug-in relay with a single C/O contact rated 10 A and a 24 V DC control coil. A status LED and mechanical flag show the contact state at a glance, and a lockable test button allows manual actuation during panel commissioning without pulling the relay.
Certifications & Standards
- CSA
- CE
- EAC
- UL
- DNV
- IEC 61810-1
- CSA C22.2 No 14
- UL 508
Selection Notes
The status LED plus mechanical flag on the RXG12BD give two independent ways to read contact state: the LED needs the 24 V DC coil energized, while the flag works even with the relay unpowered, which matters when troubleshooting a dead control circuit. The DC coil drops out at just 0.1 x Uc, a lower threshold than the AC-coil variant in the same family, which matters if the DC supply sags under load. At 10 A/250 V AC and 2500 VA switching capacity, it is sized for contactor coils and small motor-starter loads on a 24 V DC control loop. The DNV marine approval, alongside the standard CE/UL/CSA set, qualifies this variant for shipboard or offshore control panels.
Specification
Full specification
Main 8
| Range of Product | Harmony Electromechanical Relays |
|---|---|
| Series name | RXG series |
| Product or Component Type | Plug-in relay |
| Relay Type | Interface relay |
| Contacts type and composition | 1 C/O |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 10 A -40…131 °F (-40…55 °C) |
| Local signalling | Flag |
Complementary 31
| Status LED | With |
|---|---|
| Electrical durability | 100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C |
| [Ui] rated insulation voltage | 250 V IEC, 300 V CSA, 300 V UL |
| Removable legend | With |
| Maximum switching voltage | 250 V AC, 30 V DC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| [Ie] rated operational current | 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to UL, 10 A at 250 V (AC) conforming to IEC |
| Load current | 10 A 250 V AC |
| Minimum switching capacity | 500 mW at 100 mA, 5 V DC |
| Maximum switching capacity | 2500 VA |
| Control Type | Lockable test button |
| Average resistance | 1100 Ohm at 73 °F (23 °C) +/- 10 % |
| Contact resistance | 100 mOhm |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Electrical Insulation Class | Class F |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Operating time | 20 ms |
| Reset time | 20 ms |
| Dielectric strength | 1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation, 1300 V AC terminals and case with basic insulation |
| [Uimp] rated impulse withstand voltage | 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation |
| Overvoltage category | III |
| Protection category | RT I |
| Pollution degree | 2 |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | Silver alloy (AgSnO2In2O3) |
| Shape of pin | Flat (faston type) |
| Net Weight | 0.04 lb(US) (0.02 kg) |
Environment 7
| Standards | IEC 61810-1, CSA C22.2 No 14, UL 508 |
|---|---|
| Product Certifications | CSA, CE, EAC, UL, DNV |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| IP Degree of Protection | IP40 |
| Relative humidity | 10…85 % |
| Vibration resistance | 3 gn +/- 0.75 mm 10…150 Hz)in operation, 5 gn +/- 0.75 mm 10…150 Hz)not in operation |
Show all 59 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | RXG12BD |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480688737 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CN |
|---|---|
| Shipping weight | 0.02 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for RXG12BD
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
- EAC
- IEC 61810-1
- CSA C22.2 No 14
- UL 508
Quick answers
Questions about the RXG12BD
What is the rated current of RXG12BD?
The rated current of RXG12BD is 10 A.
What is the HS code of RXG12BD for customs?
The tariff (HS) code on file for RXG12BD is 85364900.
What is the EAN of RXG12BD?
The EAN (GTIN) of RXG12BD is 3606480688737.
Where does RXG12BD ship from, and how fast?
RXG12BD ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
