- Part number
- RUMC21P7
Description
About the RUMC21P7
About the RUMC21P7

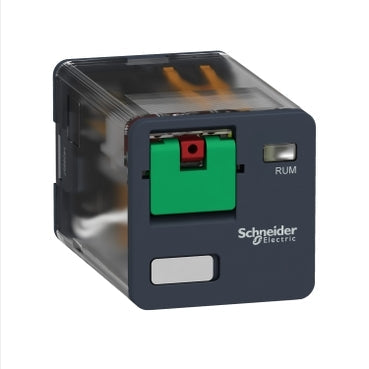

The Schneider Electric RUMC21P7 is a Harmony RUM series universal plug-in relay with two C/O contacts rated 10 A and a 230 V AC control coil. It mounts by cylindrical pins, includes a lockable test button, and carries an IP40 housing with a 2500 VA maximum switching capacity and a 100,000-cycle B10d mechanical life.
Certifications & Standards
- CSA
- UL
- EAC
- IEC 61810-1
- UL 508
- CSA C22.2 No 14
Selection Notes
The 2 C/O contact arrangement gives two isolated switching paths from a single 230 V AC coil, useful where one contact drives a contactor coil and the second feeds an indicator or interlock circuit. The lockable test button allows local forcing during commissioning without energizing the coil, and the cylindrical pin shape distinguishes it from the flat-pin RPM series for socket compatibility. Choose the 1 C/O RPM series instead when only a single switching path is needed. The 184-253 V AC operating window covers normal mains tolerance without a separate voltage-monitoring relay.
Specification
Full specification
Main 9
| Range of Product | Harmony Electromechanical Relays |
|---|---|
| Series name | RUM series |
| Product or Component Type | Plug-in relay |
| Relay Type | Universal relay |
| Contacts type and composition | 2 C/O |
| Status LED | Without |
| Control Type | Lockable test button |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 10 A -40…131 °F (-40…55 °C) |
Complementary 28
| [Uimp] rated impulse withstand voltage | 4 kV 1.2/50 µs) |
|---|---|
| Minimum switching capacity | 170 mW 10 mA, 17 V |
| Electrical durability | 100000 cycles resistive |
| Average coil consumption in VA | 3 60 Hz |
| Operating time | 20 ms at nominal voltage |
| Rated operational voltage limits | 184...253 V AC |
| [Ui] rated insulation voltage | 250 V IEC, 300 V CSA, 300 V UL |
| Reset time | 20 ms at nominal voltage |
| Maximum switching voltage | 250 V IEC |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| [Ie] rated operational current | 10 A at 277 V AC conforming to UL, 10 A at 30 V DC conforming to UL, 10 A at 30 V DC conforming to CSA, 5 A at 250 V AC (NC) conforming to IEC, 5 A at 28 V DC (NC) conforming to IEC, 10 A at 250 V AC (NO) conforming to IEC, 10 A at 28 V DC (NO) conforming to IEC, 10 A at 277 V AC conforming to CSA |
| Average resistance | 6800 Ohm 20 °C +/- 15 % |
| Maximum switching capacity | 2500 VA/280 W |
| Mechanical durability | 5000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load |
| Utilisation coefficient | 20 % |
| Compatibility code | RUM |
| Dielectric strength | 1500 V AC between contacts with micro disconnection, 2500 V AC between coil and contact with reinforced, 2000 V AC between poles with basic |
| Protection category | RT I |
| Pollution degree | 3 |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Cylindrical |
| Net Weight | 0.190 lb(US) (0.086 kg) |
| Load current | 10 A 250 V AC, 10 A 28 V DC |
Environment 7
| Ambient air temperature for operation | -40…131 °F (-40…55 °C) |
|---|---|
| IP degree of protection | IP40 |
| Standards | IEC 61810-1, UL 508, CSA C22.2 No 14 |
| Product Certifications | CSA, UL, EAC |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Vibration resistance | 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation, 4 gn +/- 1 mm 10…150 Hz)5 cycles not operating |
| Shock resistance | 10 gn 11 ms) in operation IEC 60068-2-27, 10 gn 11 ms) not operating IEC 60068-2-27 |
Show all 57 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | RUMC21P7 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480626647 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CN |
|---|---|
| Shipping weight | 0.086 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for RUMC21P7
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- EAC
- IEC 61810-1
- UL 508
- CSA C22.2 No 14
Quick answers
Questions about the RUMC21P7
What is the rated current of RUMC21P7?
The rated current of RUMC21P7 is 10 A.
Which supply voltage is RUMC21P7 rated for?
The rated operational voltage of RUMC21P7 is 230 V AC.
What is the HS code of RUMC21P7 for customs?
The tariff (HS) code on file for RUMC21P7 is 85364900.
What is the EAN of RUMC21P7?
The EAN (GTIN) of RUMC21P7 is 3606480626647.
Where does RUMC21P7 ship from, and how fast?
RUMC21P7 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
