- Part number
- RPM21P7
Description
About the RPM21P7
About the RPM21P7

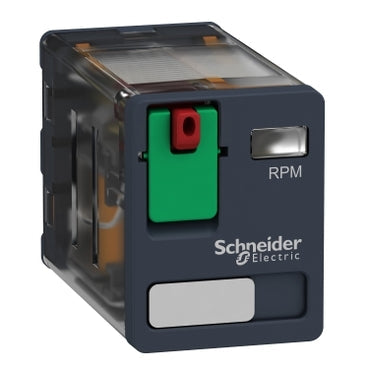

The Schneider Electric RPM21P7 is a Harmony RPM series plug-in power relay with 2 C/O contacts rated 15 A and a 230 V AC 50/60 Hz control coil. A lockable test button lets a technician actuate the relay by hand during panel commissioning, and the AgNi contacts carry the full 15 A load at 250 V AC or 28 V DC across an ambient range of -40 to 55°C.
Certifications & Standards
- UL
- EAC
- CSA
- IEC 61810-1
- UL 508
- CSA C22.2 No 14
Selection Notes
At 15 A/250 V AC on the NO contacts (7.5 A/250 V AC on NC), the RPM21P7 is sized to switch contactor coils, indicator circuits or small motor starters directly from the control loop, without an interposing relay ahead of it. The lockable test button covers manual trip/reset during panel checkout without pulling the relay from its socket. The 230 V AC coil lets it wire directly from line-level control transformers, unlike lower-voltage coil variants in the same relay family that need a 24 V step-down. B10d = 100,000 at up to 1200 cycles/hour under load fits control-duty switching rather than continuous high-frequency cycling.
Specification
Full specification
Main 11
| Range of Product | Harmony Electromechanical Relays |
|---|---|
| Series name | RPM series |
| Product or Component Type | Plug-in relay |
| Contacts type and composition | 2 C/O |
| Relay Type | Power relay |
| Status LED | Without |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Minimum switching capacity | 170 mW 10 mA, 17 V |
| Release time | 20 ms at nominal voltage |
| Ambient air temperature for operation | -40…131 °F (-40…55 °C) |
| [Ithe] conventional enclosed thermal current | 15 A -40…131 °F (-40…55 °C) |
Complementary 26
| Control Type | Lockable test button |
|---|---|
| [Ie] rated operational current | 15 A 277 V AC) UL, 15 A 28 V DC) UL, 15 A 250 V AC) NO IEC, 15 A 28 V DC) NO IEC, 7.5 A 250 V AC) NC IEC, 7.5 A 28 V DC) NC IEC |
| Degree of protection (Housing only) | IP40 conforming to IEC 60529 |
| Rated operational voltage limits | 184...253 V AC |
| [Ui] rated insulation voltage | 250 V IEC, 300 V CSA, 300 V UL |
| Maximum switching voltage | 250 V IEC |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Average resistance | 16270 Ohm at 68 °F (20 °C) +/- 15 % |
| Maximum switching capacity | 3750 VA, 420 W |
| Load current | 15 A 250 V AC, 15 A 28 V DC |
| Operating time | 20 ms at nominal voltage |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles resistive |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Dielectric strength | 1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced, 2000 V AC between poles with basic |
| [Uimp] rated impulse withstand voltage | 4 kV 1.2/50 µs |
| Protection category | RT I |
| Mounting Support | Plug-in |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Flat (faston type) |
| Net Weight | 0.079 lb(US) (0.036 kg) |
Environment 7
| Average coil consumption in VA | 1.1 60 Hz |
|---|---|
| Pollution degree | 3 |
| Standards | IEC 61810-1, UL 508, CSA C22.2 No 14 |
| Product Certifications | UL, EAC, CSA |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Vibration resistance | 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10…150 Hz)5 cycles not operating |
| Shock resistance | 15 gnin operation, 30 gnnot operating |
Show all 57 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | RPM21P7 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119401876 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CN |
|---|---|
| Shipping weight | 0.036 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for RPM21P7
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- EAC
- IEC 61810-1
- UL 508
- CSA C22.2 No 14
Quick answers
Questions about the RPM21P7
What is the rated current of RPM21P7?
The rated current of RPM21P7 is 15 A.
Which supply voltage is RPM21P7 rated for?
The rated operational voltage of RPM21P7 is 230 V AC.
What is the HS code of RPM21P7 for customs?
The tariff (HS) code on file for RPM21P7 is 85364900.
What is the EAN of RPM21P7?
The EAN (GTIN) of RPM21P7 is 3389119401876.
Where does RPM21P7 ship from, and how fast?
RPM21P7 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
