- RPM11B7
Description
About the RPM11B7
About the RPM11B7

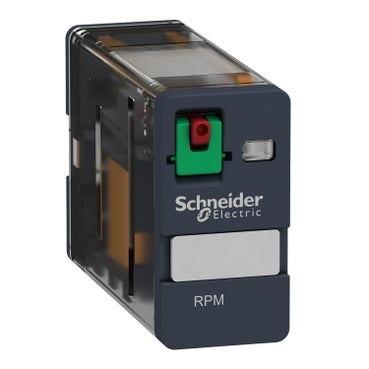

The Schneider Electric RPM11B7 is a Harmony RPM series plug-in power relay with a single C/O contact rated 15 A and a 24 V AC control coil. It mounts by plug-in pins, includes a lockable test button for local forcing, and carries an IP40 housing rating with a 100,000-cycle B10d mechanical life.
Certifications & Standards
- EAC
- CSA
- UL
- UL 508
- IEC 61810-1
- CSA C22.2 No 14
Selection Notes
The 15 A Ithe rating and single C/O contact suit switching a contactor coil or a small single-phase load directly from the relay, without an interposing contactor. The lockable test button lets a technician force the contact locally during commissioning without energizing the 24 V AC coil, and the 100,000-cycle B10d rating covers general control-panel duty at up to 1200 cycles per hour under load. Choose the 2 C/O RUM series universal relay instead when the application needs a second isolated contact from the same coil.
Specification
Full specification
Main 11
| Range of Product | Harmony Electromechanical Relays |
|---|---|
| Series name | RPM series |
| Product or Component Type | Plug-in relay |
| Contacts type and composition | 1 C/O |
| Relay Type | Power relay |
| Status LED | Without |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| Minimum switching capacity | 170 mW 10 mA, 17 V |
| Release time | 20 ms at nominal voltage |
| Ambient air temperature for operation | -40…131 °F (-40…55 °C) |
| [Ithe] conventional enclosed thermal current | 15 A -40…131 °F (-40…55 °C) |
Complementary 26
| Control Type | Lockable test button |
|---|---|
| [Ie] rated operational current | 15 A 277 V AC) UL, 15 A 28 V DC) UL, 15 A 250 V AC) NO IEC, 15 A 28 V DC) NO IEC, 7.5 A 250 V AC) NC IEC, 7.5 A 28 V DC) NC IEC |
| Degree of protection (Housing only) | IP40 conforming to IEC 60529 |
| Rated operational voltage limits | 19.2...26.4 V AC |
| [Ui] rated insulation voltage | 250 V IEC, 300 V CSA, 300 V UL |
| Maximum switching voltage | 250 V IEC |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Average resistance | 177 Ohm at 68 °F (20 °C) +/- 15 % |
| Maximum switching capacity | 3750 VA, 420 W |
| Load current | 15 A 250 V AC, 15 A 28 V DC |
| Operating time | 20 ms at nominal voltage |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles resistive |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Dielectric strength | 1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced |
| [Uimp] rated impulse withstand voltage | 4 kV 1.2/50 µs |
| Protection category | RT I |
| Mounting Support | Plug-in |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Flat (faston type) |
| Net Weight | 0.057 lb(US) (0.026 kg) |
Environment 7
| Average coil consumption in VA | 1.6 60 Hz |
|---|---|
| Pollution degree | 3 |
| Standards | UL 508, IEC 61810-1, CSA C22.2 No 14 |
| Product Certifications | EAC, CSA, UL |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Vibration resistance | 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10…150 Hz)5 cycles not operating |
| Shock resistance | 15 gnin operation, 30 gnnot operating |
Show all 57 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | RPM11B7 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119401647 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CN |
|---|---|
| Shipping weight | 0.026 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
