Part number
GV2G3RA
Model no
GV2G
$53.96 On request Dispatch — · From TürkiyeGet a Quote

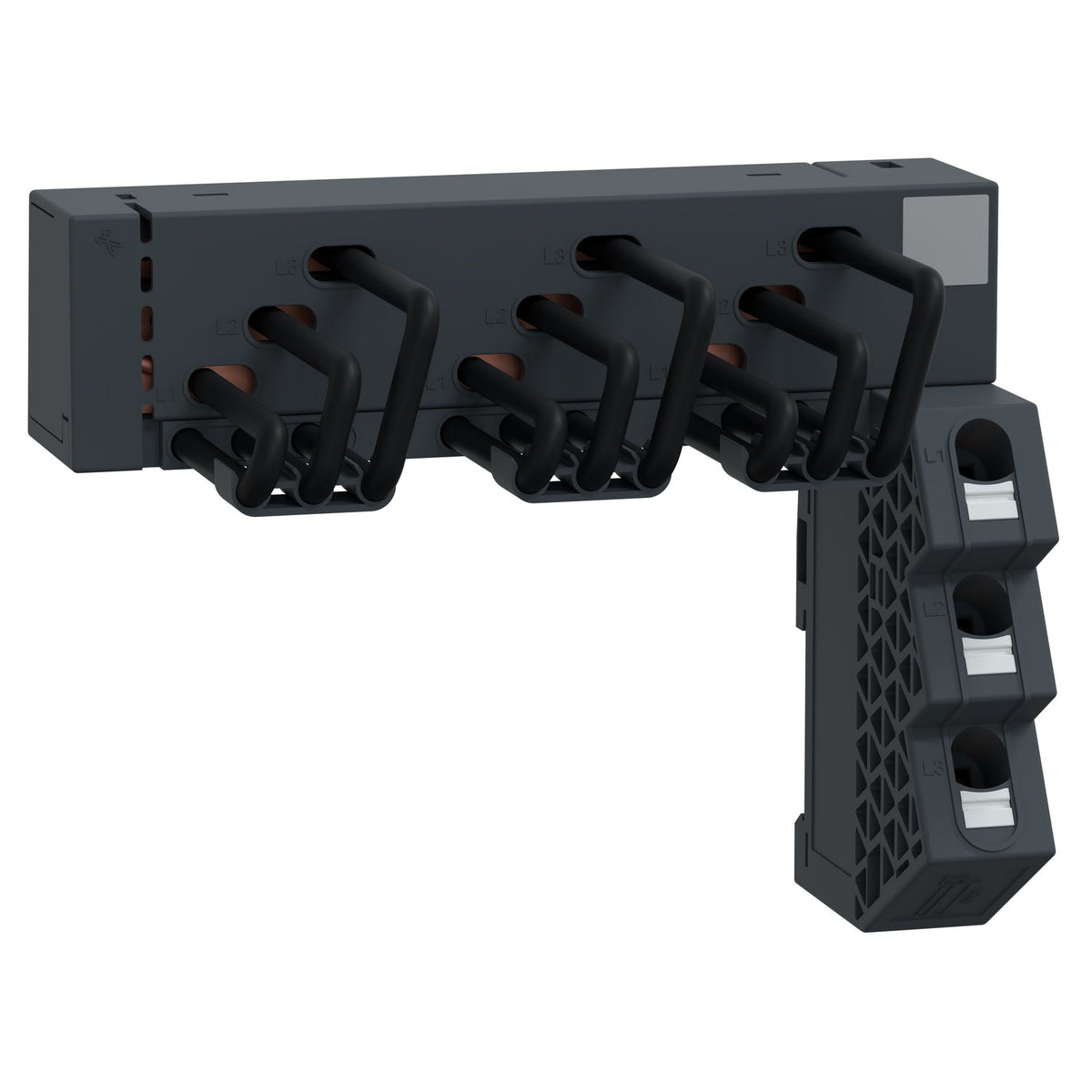

Schneider Electric GV2G3RA Linergy FT Comb Busbar 63 A 3 Tap-offs Right Infeed for GV2ME Automation Component

Linergy FT comb busbar, 63 A, 3 tap-offs, for GV2ME groups.

Rated current
63 A
EAN
3606487864004
Description

About the GV2G

The Schneider Electric GV2G3RA is a Linergy FT comb busbar with 3 tap-offs and a built-in infeed module on the right side, rated 63 A at 690 V Ui across 3 phases. It parallel-wires a group of GV2ME motor circuit breakers from a single 3-phase incomer, clipping onto the same 35 mm DIN rail and keeping the 45 mm connection pitch between tap-offs.

Certifications & Standards

  • CE
  • cULus

Selection Notes

The infeed side decides the panel layout: pick the GV2G3RA (right-side infeed) to match where the incoming supply conductor enters the panel relative to the GV2ME row, so the busbar run does not cross back over itself. Add a GV2G extension busbar downstream if the group needs more than 3 tap-offs.

Specification

Full specification

31 values · Last verified 30 Oct 2026

Main 12

Range Linergy
Product name FT
Device short name GV2G
Product or Component Type Comb busbar
Accessory / separate part category Connection accessory
Poles description 3P
Range compatibility TeSys Deca, TeSys GV2
Product Compatibility GV2ME...A
Fixing mode 35 mm symmetrical DIN rail clipped
Number of tap-offs 3
Connections - terminals Push-in terminals: 1 cable(s) 0.002…0.02 in² (1.5…16 mm²) - solid, Push-in terminals: 1 cable(s) 0.002…0.04 in² (1.5…25 mm²) - flexible without cable end, Push-in terminals: 1 cable(s) 0.002…0.02 in² (1.5…16 mm²) - flexible with cable end, Push-in terminals: 1 cable(s) (16 AWG...10 AWG) - solid, Push-in terminals: 1 cable(s) (16 AWG...6 AWG) - stranded
[Ith] conventional free air thermal current 63 A

Complementary 5

Product Certifications CE, cULus
[Ui] Rated Insulation Voltage 690 V
Connection pitch 1.8 in (45 mm)
Width 6.2 in (158 mm)
Net Weight 1.19 lb(US) (0.54 kg)

Contractual warranty 1

Warranty (in months) 18
Show all 31 specifications ↓ Show less ↑13 more values in Identification, Logistics.

Identification 8

Part number GV2G3RA
Type designation GV2G
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606487864004

Logistics 5

Country of origin CN
Shipping weight 0.54 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for GV2G3RA

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
Quick answers

Questions about the GV2G

What is the rated current of GV2G?

The rated current of GV2G is 63 A.

What is the HS code of GV2G for customs?

The tariff (HS) code on file for GV2G is 853890.

What is the EAN of GV2G?

The EAN (GTIN) of GV2G is 3606487864004.

Where does GV2G ship from, and how fast?

GV2G ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
